Professional Technical Description: XCMG XE900 Final Drive Sprocket Assembly

1. Product Overview and Primary Function

The XCMG XE900 Final Drive Sprocket Assembly is an integrated, high-torque power transmission module that serves as the definitive driving component for the crawler tracks on the XCMG XE900 large hydraulic excavator. This assembly is fundamentally different from a simple idler or roller; it is a complex system that performs the critical dual function of final gear reduction and track propulsion. It converts the high-speed, low-torque rotation from the hydraulic motor into the low-speed, high-torque force required to move the immense weight of the machine and its load, while simultaneously engaging with the track chain links to propel the excavator.

2. Key Functional Roles

• Power Transmission & Gear Reduction: Houses a multi-stage planetary gear reduction system to multiply torque exponentially, enabling the machine to overcome extreme resistive forces during travel and digging operations.

• Track Propulsion: The hardened sprocket teeth engage directly with the track chain links (pins and bushings), pulling the track around the undercarriage to generate movement.

• Structural Load Bearing: Supports a significant portion of the machine's weight and transmits operational loads (shock, digging, and travel stresses) through the track frame to the ground.

• Integrated Mounting Point: Serves as the rigid mounting interface that connects the power of the hydraulic motor to the robust structure of the undercarriage.

3. Detailed Component Breakdown & Construction

The term "Final Drive Sprocket Assembly" indicates a fully enclosed, sealed unit that integrates multiple subsystems into a single, serviceable component. Key sub-components include:

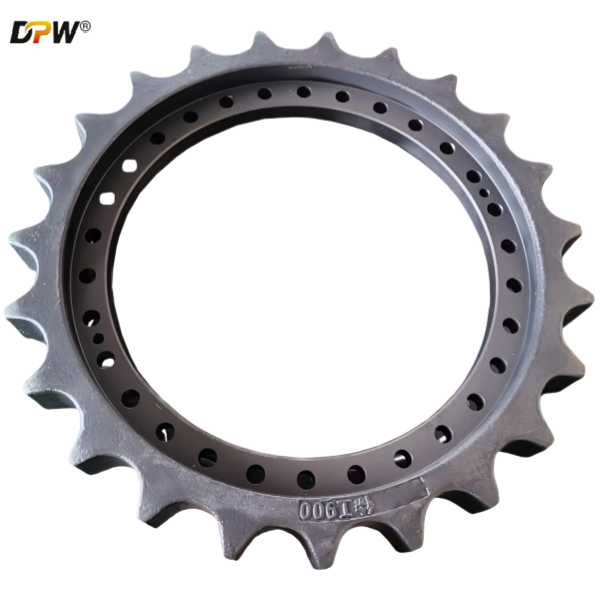

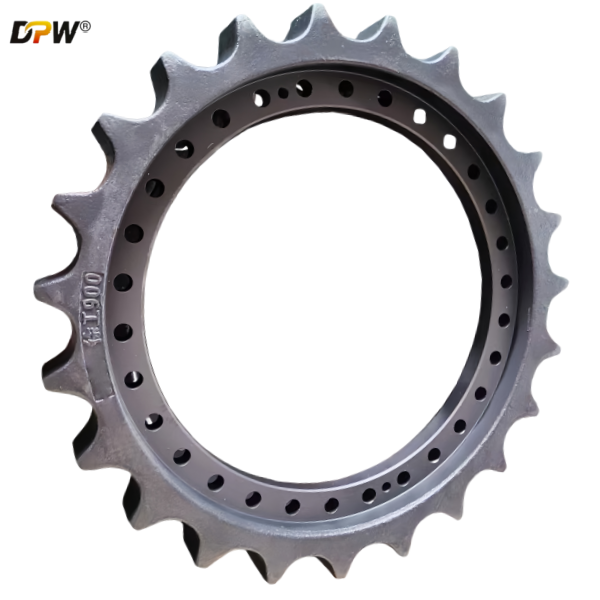

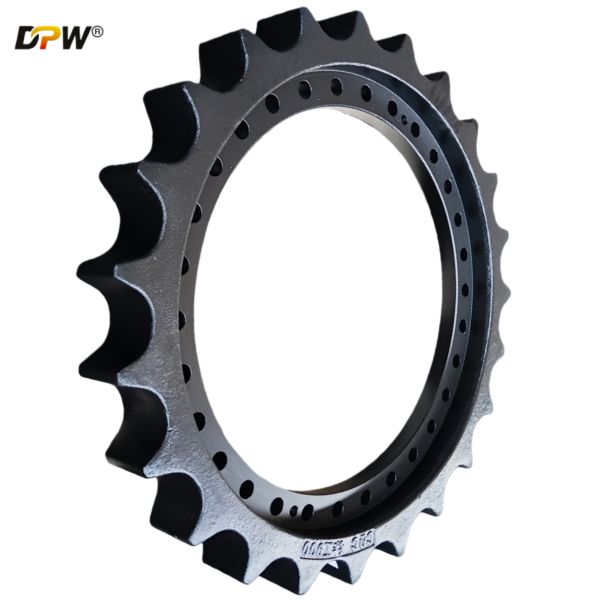

• Sprocket: The external, toothed wheel that meshes with the track chain. It is typically manufactured from high-carbon, alloy steel (e.g., 42CrMo) and is heat-treated (through quenching and tempering) to achieve an extremely hard, wear-resistant tooth surface while maintaining a tough, shock-absorbent core. The sprocket may be a single piece or a reversible/welded-ring design to allow for refurbishment.

• Hub & Flange: The central structure that connects the sprocket to the planetary gearset and provides the bolt pattern for mounting to the track frame.

• Planetary Gear Reduction System: The heart of the assembly. It consists of:

  • Sun Gear: Driven directly by the input shaft from the hydraulic motor.

  • Planetary Gears (Planet Pinions): Typically three or four gears that rotate around the sun gear and are held by a planetary carrier.

  • Ring Gear: A stationary, internally toothed gear fixed within the drive case. The interaction between these components creates the massive torque multiplication.

• Final Drive Case (Housing): A high-strength, ductile iron or forged steel housing that encloses and protects the entire gear system. It is machined to precise tolerances to ensure perfect gear alignment and bearing pre-load.

• Input Shaft: The splined or keyed shaft that receives power from the hydraulic motor. It is supported by heavy-duty bearings and integrated with the sun gear.

• Bearing System: Utilizes large-diameter, pre-loaded tapered roller bearings to support the immense radial loads from the machine's weight and axial thrust loads from operational forces.

• Sealing System: Employs a critical, multi-layered sealing strategy to protect the internal components. This includes:

  • Main Lip Seal: A heavy-duty, spring-loaded radial lip seal that protects the sprocket-side bearing from external contaminants (water, mud, abrasives).

  • Input Shaft Seal: Prevents oil leakage from the drive case where the input shaft enters.

  • Case Seals: Static seals (O-rings, gaskets) to seal the mating surfaces of the drive case.

• Internal Lubrication: The gear case is filled with a specific grade of extreme-pressure (EP) gear oil to lubricate the planetary gears and bearings, dissipate heat, and provide corrosion protection.

4. Material and Manufacturing Specifications

• Sprocket Material: High-quality alloy steel (e.g., 42CrMo, 50Mn), forged for grain strength, machined, and heat-treated to a surface hardness of 55-60 HRC.

• Gear Material: Case-hardened alloy steels (e.g., 20CrMnTi, 18Cr2Ni4WA) for high surface wear resistance and core toughness.

• Housing Material: High-strength nodular cast iron (e.g., QT500-7) or fabricated steel plate, offering an excellent balance of strength, rigidity, and shock absorption.

• Manufacturing Processes: Precision forging, CNC machining, gear hobbing and shaping, carburizing and heat treatment, dynamic balancing, and automated assembly.

5. Application and Compatibility

This assembly is specifically engineered for the XCMG XE900 large excavator. It is a critical drivetrain component and is subject to extreme operational stresses, making it a wear item that will eventually require replacement or overhaul. Correct compatibility is paramount, as the mounting flange, spline count, reduction ratio, and sprocket pitch must perfectly match the machine's hydraulic motor and track chain specifications.

6. Importance of Genuine or High-Quality Replacement Parts

Using a certified assembly is crucial for:

• Performance Integrity: Guaranteed compatibility ensures optimal power transfer and efficiency.

• Durability: High-quality materials and precise heat treatment processes ensure the assembly can withstand the rated loads and shock impacts without premature failure.

• Seal Reliability: The integrity of the sealing system is the primary determinant of final drive service life. Premium seals are essential to exclude contaminants.

• Warranty and Support: Genuine or certified parts are typically backed by a warranty and technical support.

7. Maintenance and Operational Considerations

• Regular Inspection: Check for oil leaks around seals, unusual noises (grinding, whining) during operation, and excessive play in the sprocket.

• Contamination Control: The single greatest cause of final drive failure is contamination of the internal oil. Keep the area around the seals clean and inspect them regularly for damage.

• Proper Lubrication: Although often sealed for life, some designs may have a fill/check plug. If serviceable, use only the manufacturer-specified oil grade and quantity.

• Avoid Shock Loads: While designed for heavy duty, sudden, extreme shock loads (e.g., dropping the machine from a height, violent impacts) can damage gears and bearings
