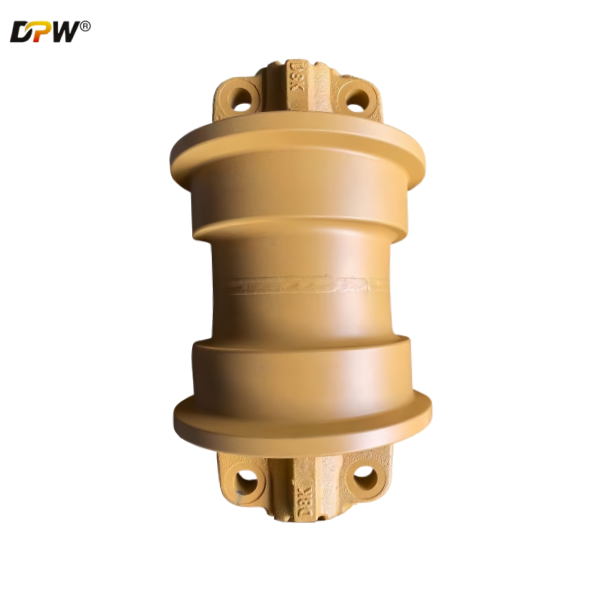

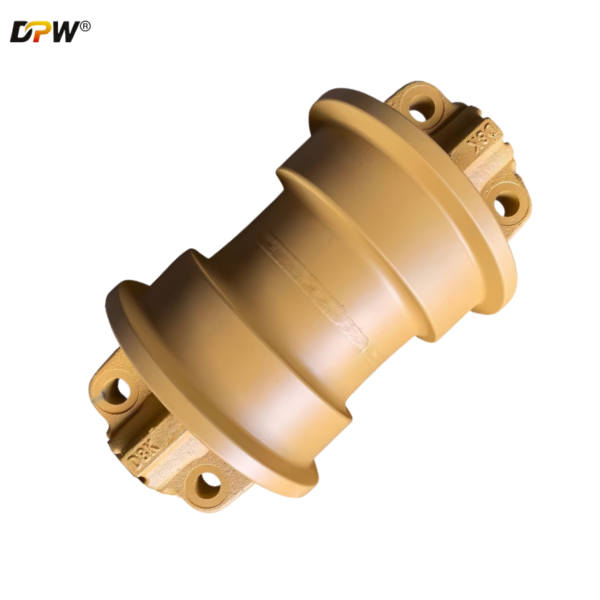

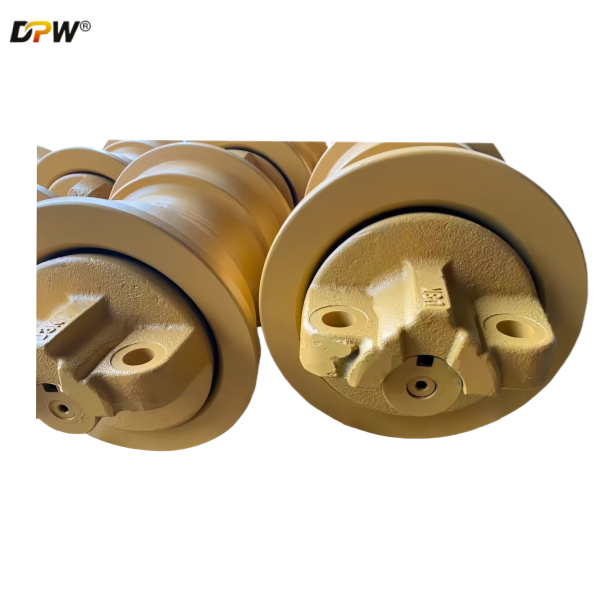

Undercarriage of Caterpillar/275-3597/D3K/SF Track Roller Bottom Roller Assembly

Product Specifications

Caterpillar D3K Dozer Track Bottom Roller Assembly: A Comprehensive Overview

The Track Bottom Roller Assembly, more formally known as the Lower Track Roller or simply Bottom Roller, is a fundamental component of the undercarriage system on a Caterpillar D3K Dozer. Its primary function is to support the weight of the machine, guide the track chain, and facilitate smooth travel over the ground.

1. Function and Purpose

The bottom roller assembly serves several critical purposes:

• Support Machine Weight: The rollers are the primary contact points between the track chain and the undercarriage frame. They bear the significant weight of the dozer and distribute it evenly along the track shoe's length.

• Guide the Track Chain: They maintain the alignment of the track chain, ensuring it travels correctly along the defined path around the undercarriage system (idler, sprocket, and carrier rollers).

• Reduce Friction: By providing a smooth, rotating surface for the track chain links to roll over, they minimize friction and resistance, which is crucial for efficient power transmission from the final drives to the ground.

• Durability and Sealing: Designed for extreme environments, they are built to withstand immense shock loads, abrasion from dirt and rocks, and exposure to moisture. Advanced sealing systems are used to retain grease and exclude contaminants.

2. Key Components of the Assembly

A typical bottom roller assembly is a self-contained unit consisting of:

• Roller Shell (or Outer Rim): The hardened, durable outer surface that makes direct contact with the track chain links. It is often flame-hardened to resist wear and abrasion.

• Tapered Roller Bearings: The internal bearings that allow the shell to rotate smoothly around the shaft under heavy radial loads. The use of tapered bearings is critical for handling the heavy loads and thrust forces.

• Shaft (Spindle or Axle): The stationary pin that is pressed or bolted into the track frame. The roller and bearings rotate around this fixed shaft.

• Labyrinth Seals and Face Seals: A critical system of multiple seals designed to keep the lubricating grease inside the roller and prevent abrasive contaminants (dirt, mud, sand, water) from entering the bearing compartment. Cat rollers often use Duo-Cone seals, which are highly effective face-type seals.

• Flanges: Many bottom rollers have two flanges (double-flanged) to keep the track chain centered on the roller. Some specific undercarriage configurations might use single-flanged or non-flanged rollers.

3. Location on the Caterpillar D3K

The D3K has multiple bottom roller assemblies on each side of the machine. They are mounted along the bottom of the track frame (the "track girder") between the front idler and the sprocket. Their position is fixed. The number of rollers can vary slightly depending on the specific undercarriage configuration (e.g., standard vs. long-track options for LGP - Low Ground Pressure models).

4. Operation and Working Principle

The operation is straightforward but occurs under brutal conditions:

1. Load Bearing: As the dozer moves, its weight is transferred through the track frame to the shaft of each bottom roller.

2. Rotation: The track chain, driven by the sprocket, moves over the stationary bottom rollers. The inner surface of the track chain links contacts the roller shell.

3. Reduced Friction: The internal tapered roller bearings allow the shell to rotate freely, converting what would be a high-friction sliding motion into a much more efficient rolling motion.

4. Contamination Exclusion: The Duo-Cone seals work in pairs. They have precisely machined metal faces that spin against each other. A thin film of grease between these faces creates a barrier that is virtually impenetrable to external contaminants, ensuring the longevity of the internal bearings.

5. Importance of Sealing and Lubrication

The internal grease is vital for the roller's lifespan. It serves to:

• Lubricate the tapered roller bearings.

• Dissipate heat generated by friction.

• Act as the working fluid for the Duo-Cone seals.

The integrity of the sealing system is the single most important factor determining the service life of a roller. Once seals fail and contaminants enter, they act as grinding paste, rapidly destroying the bearings and leading to roller failure.

6. Common Failure Modes and Symptoms

• Worn Shell: The outer shell wears down from constant abrasion against the track chain. Excessive wear can be measured with calipers and compared to service limits.

• Seal Failure: The primary cause of premature roller death. Signs include visible grease leakage (grease thrown onto the track or track frame) or the entry of mud/water into the grease, which will appear as a milky or gritty substance when checked.

• Bearing Failure: Results from seal failure or lack of lubrication. Symptoms include:

  • Noise: A grinding, rumbling, or squealing sound from the undercarriage.

  • Lock-Up: The roller fails to turn, causing rapid, uneven wear on the roller itself and the track chain links.

  • Side Play: Excessive wobble or lateral movement of the roller on its shaft.

• Flange Damage: Flanges can be cracked or broken off from impact with rocks or other obstacles, leading to poor track guidance.

7. Maintenance and Servicing

• Regular Inspection: A daily walk-around inspection is crucial. Look for:

  • Leaking Seals: Look for streaks of grease on the roller or the track frame.

  • Rotation: During operation, ensure all rollers are turning. A stationary roller is a failing roller.

  • Flange Condition: Check for cracks or breaks.

  • Visual Wear: Look for a concave or "wasp-waisted" wear pattern on the shell.

• Undercarriage Cleaning: After working in muddy or sticky conditions, clean out the undercarriage to prevent material from being packed between the rollers and the track, which can place extra stress on the components and impede rotation.

• Replacement: Bottom rollers are typically replaced as complete assemblies. While rebuilding is technically possible with specialized tools and seal kits, it is often more cost-effective and reliable to exchange the old roller for a Cat Remanufactured or new assembly. They are usually bolted to the track frame, allowing for relatively straightforward replacement.

8. Variants and Specifications (D3K Specific)

The D3K may have different roller options based on its configuration:

• Standard Rollers: For general purpose use.

• LGP (Low Ground Pressure) Rollers: Used on machines equipped with wider tracks. These may have slight differences in dimensions and spacing to accommodate the longer track frame.

DPW PARTS manufacturer D3K undercarriage of a dozer:

undercarriage of a dozer D3K   Track Idlers Group 254-0684

undercarriage of a dozer D3K   Track Rollers SF Single Flange 275-3579

undercarriage of a dozer D3K   Track Rollers DF Double Flange 275-3580

undercarriage of a dozer D3K  Segment 278-2355 is (1 each side)

undercarriage of a dozer D3K  Segment 278-2356 is (5 each side)

undercarriage of a dozer D3K  Track assembly group  6Y0935

undercarriage of a dozer D3K  Carrier rollers   275-3578

It is critical to use the correct part number specific to the machine's serial number to ensure proper fit and performance.
