Track Roller E330/E336/D45/D50/D75/6Y2795/57717480 for Cat excavator heavy duty undercarriage component/China track rollers manufacture and supplier in Quanzhou
Product Specifications

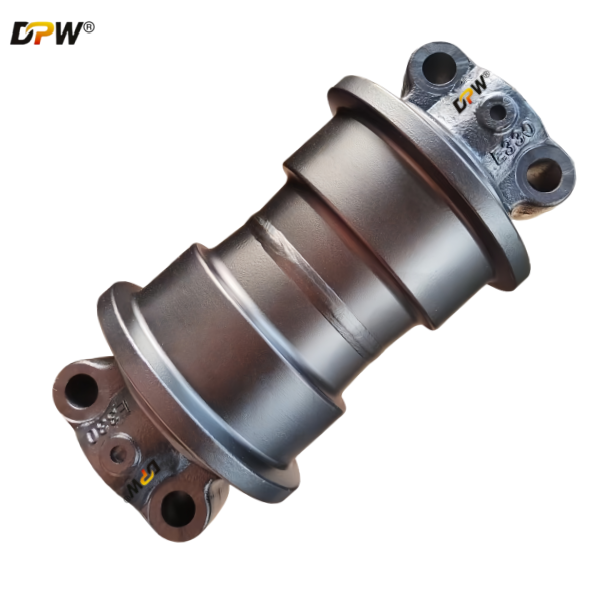

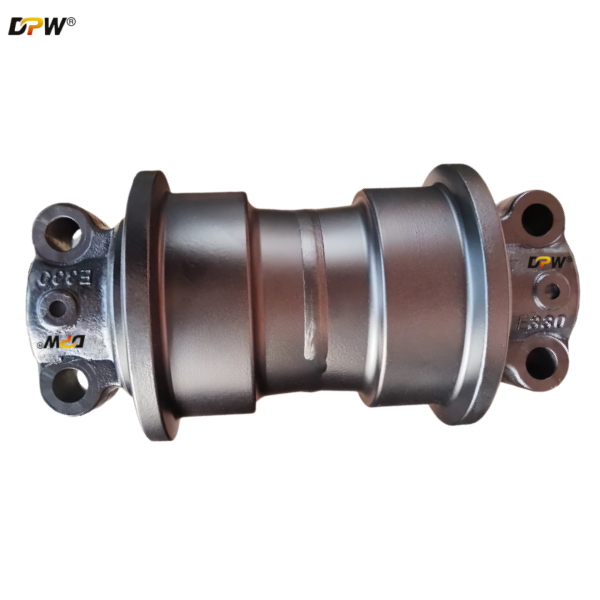

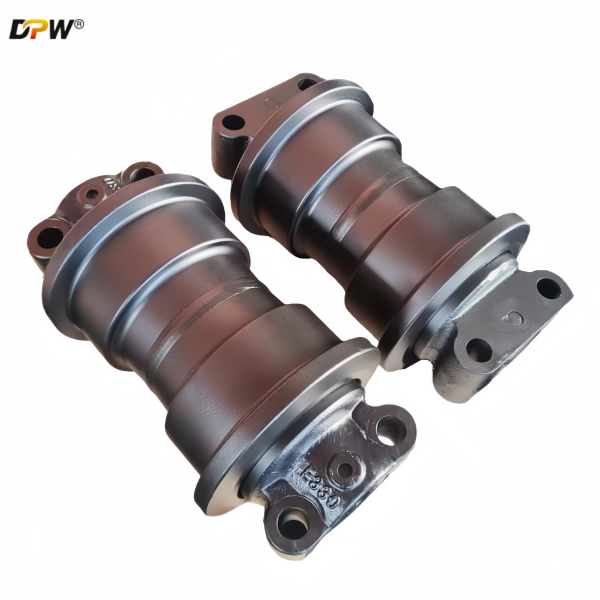

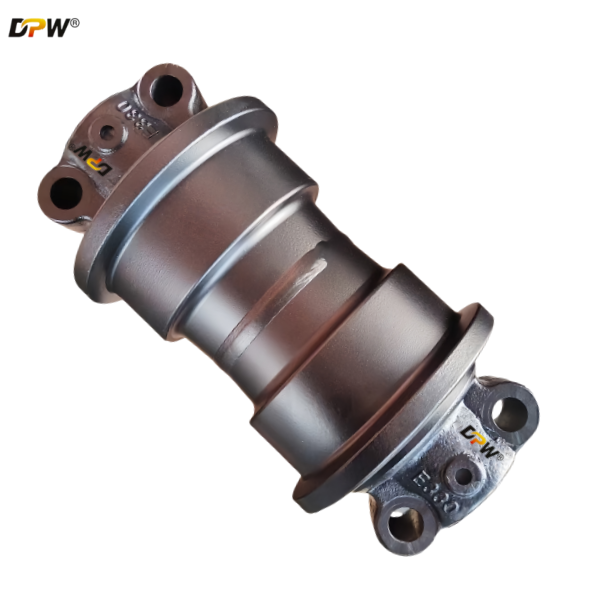

The CAT E330 Track Bottom Roller Group is a critical assembly within the undercarriage system of the Caterpillar 330-series excavator. This component is responsible for supporting the machine's immense weight, guiding the track chain, and absorbing ground-level shocks and impacts. Understanding its structure, function, and maintenance is essential for minimizing downtime and maximizing the longevity and efficiency of your heavy equipment.
1. In-Depth Structural Analysis of the E330 Bottom Roller Group
The Bottom Roller is not a single monolithic part but a precision-engineered group or assembly consisting of several key components working in unison.
Core Components & Their Material Science:
Outer Shell / Rim: This is the primary wear surface that makes contact with the track chain links. It is typically forged from high-grade, depth-hardened alloy steel (common grades include 50Mn, 40Mn2, or 40MnB). This forging process creates a dense, grain-oriented structure superior in strength to cast components.
Hardening Process: The shell undergoes intensive heat treatment to achieve a surface hardness of HRC 50-56. This hardening extends to a critical depth (5-12 mm) to ensure the roller's wear life matches that of the track chain and other undercarriage components, preventing premature failure.
Axle / Shaft: The central shaft upon which the roller rotates. It is press-fit or bolted into the undercarriage frame and must possess high tensile strength to resist bending moments.
Sealed Bearing Cartridge: Located between the outer shell and the axle, this sealed roller bearing assembly allows for smooth rotation. Its integrity is paramount to the roller's performance.
Multi-Labyrinth Seal System: This is arguably the most technologically advanced part of the group. It consists of:
Primary Seal: A robust radial lip seal.
Secondary Seal & Labyrinth Path: A complex series of grooves and sealing rings that create a tortuous path, effectively blocking the ingress of abrasive contaminants like dirt, mud, and silt.
Grease Cavity: The seal system retains lubricating grease, which both lubricates the bearing and acts as a positive barrier against contaminants.
Flanges: Many E330 bottom rollers feature double flanges. These raised edges on the inside and outside of the shell keep the track chain aligned and prevent derailment during side-loading or turning operations.
2. Primary Function and Operational Role
The structural design directly enables its core functions:
Weight Distribution: The primary role is to carry the weight of the excavator and its load, distributing it evenly across the track chain to the ground.
Guidance and Alignment: The flanges guide the track chain, ensuring it remains centered on the roller path and does not slip off the idler, sprocket, or other rollers.
Shock Absorption: The robust construction and internal bearings absorb impacts from uneven terrain, rocks, and debris, protecting the entire undercarriage system from damage.
Smooth Travel: By providing a low-friction surface for the track chain to roll over, it enables smooth forward and reverse movement of the machine.
3. Compatibility and Interchangeability
CAT Model Compatibility: The CAT E330 Track Bottom Roller Group is designed for the Caterpillar 330 excavator series. This typically includes models like the CAT 330, 330B, 330C, 336C L, and 336D excavators. It is crucial to verify the exact part number against your machine's serial number to ensure compatibility.
OEM vs. Aftermarket: High-quality aftermarket manufacturers produce compatible roller groups that meet or exceed OEM specifications. They often use identical materials and hardening processes, providing a cost-effective alternative without sacrificing performance.
4. Common Failure Modes and Diagnosis
Understanding structure helps diagnose issues:
Worn Flanges: Excessive wear on the inner or outer flanges reduces their ability to guide the track, increasing the risk of derailment.
Shell Wear: The outer shell diameter decreases over time. Significant wear creates a "cupping" effect against the track chain links, accelerating wear on both components.
Seal Failure: The primary cause of roller failure. A compromised seal allows contaminants into the bearing assembly, leading to:
Bearing Seizure: The roller stops rotating, causing rapid, grinding wear on the shell and the track chain link.
Grease Leakage: Visible grease on the roller or track is a key indicator that the seal has failed and the roller requires immediate attention.
5. Maintenance, Replacement, and Installation Best Practices
Inspection: Regularly measure flange height and shell diameter against service limits outlined in the CAT service manual.
Replacement Protocol: Bottom rollers should be replaced in matched sets across the entire undercarriage to maintain even track tension and prevent uneven stress.
Installation Torque: When installing, it is critical to follow Caterpillar's specified torque procedures for any bolts to prevent damage to the axle or the roller carrier frame.
6. Key Considerations for Purchase
When sourcing a CAT E330 Track Bottom Roller Group, evaluate suppliers based on:
Material Certification: Ensure the steel grade and hardening processes are documented.
Seal Quality: The quality of the labyrinth seal system is the greatest determinant of service life. Inquire about the seal manufacturer and design.
Warranty: Reputable suppliers offer warranties (e.g., 1 year or 2,000 operating hours).
Testing & Certification: Look for ISO 9001 certification and suppliers who provide mechanical test reports.
Conclusion: An Engineered Foundation for Performance
The CAT E330 Track Bottom Roller Group is a masterpiece of heavy equipment engineering. Its forged, hardened steel construction and advanced sealing technology are directly responsible for the durability, stability, and productivity of the excavator. Investing in high-quality rollers and adhering to a rigorous inspection and maintenance schedule is not merely a repair—it is an investment in the long-term health and profitability of your machine.
