JCB JS330 Fabricated Guide Wheel Group/Idler Assembly manufacture/Supplier/OEM quality undercarriage components

Product Specifications

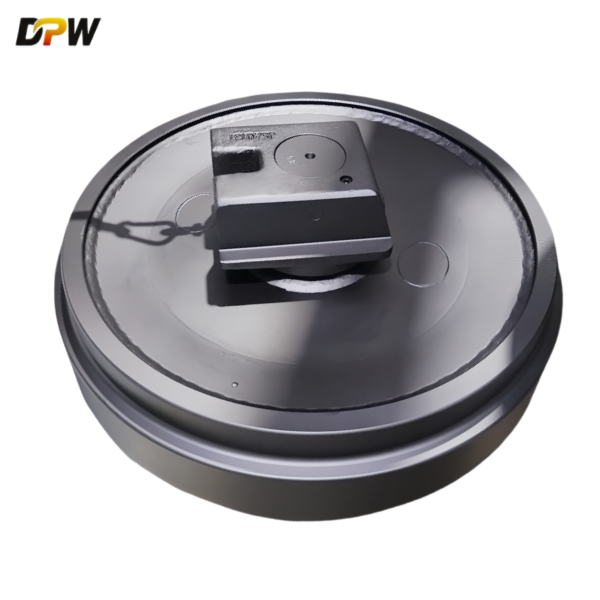

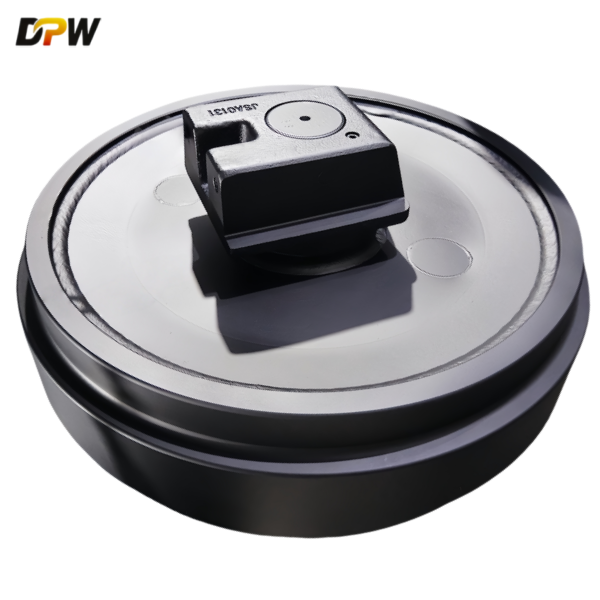

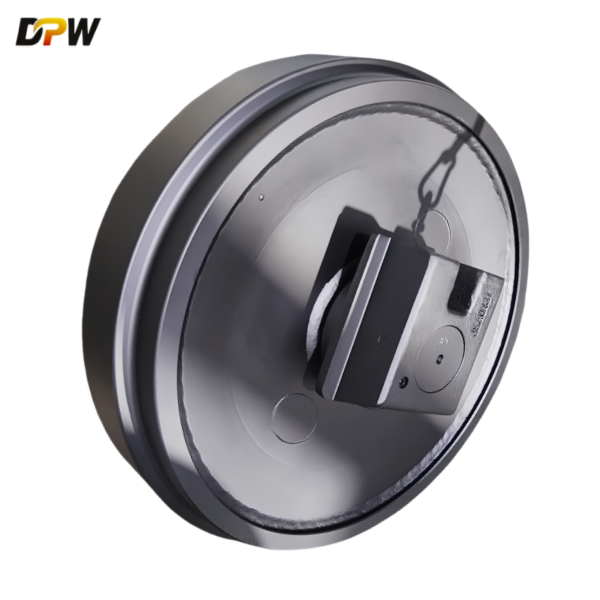

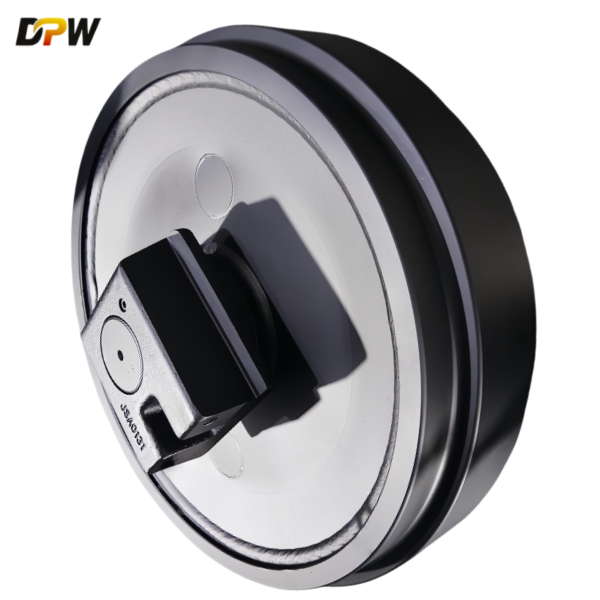

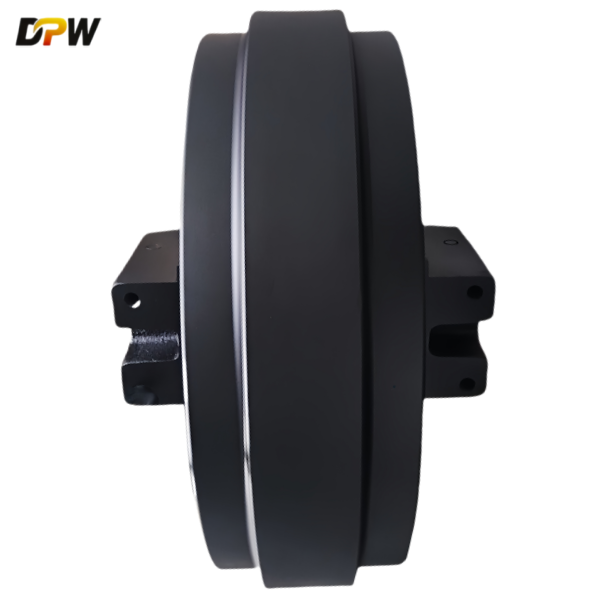

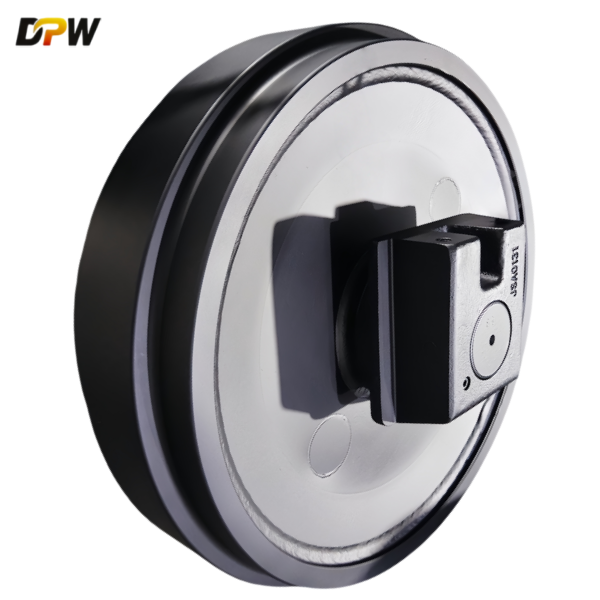

DPW Machinery Parts offer JCB JS330 Fabricated Idler Assembly is a robust, welded-steel front track component vital for support, guidance, and tensioning. Its dual-cylinder system is a key feature. Regular inspection and timely replacement using the correct S/N-specific part are crucial for machine uptime and undercarriage cost management.

1. JCB JS330 Excavator:

• A large crawler excavator designed for demanding construction, quarrying, and heavy earthmoving.

• Key features include JCB's "DualTech" VT boom, robust structure, and strong digging forces.

• Competes in the 30-40 ton size class.

2. Fabricated Idler Function:

• Position: Front of the track frame (opposite the drive sprocket).

• Roles:

  • Supports machine weight via the track chain.

  • Guides the track chain smoothly around the front curve.

  • Maintains Track Tension: Acts as the adjustable point via hydraulic/grease tension cylinder(s).

3. Fabricated Construction:

• The idler wheel is welded from high-strength steel plates (not cast as a single piece).

• Advantages: Lighter weight, potential cost savings, repairability of sections.

• Disadvantages: Welds are stress points; quality depends heavily on manufacturing precision.

4. Idler Assembly Components:

• The "Assembly" typically includes:

  • Fabricated Idler Wheel: Core rotating component with flanges.

  • Idler Carrier/Bracket: Frame attaching the assembly to the track frame.

  • Track Tensioning System: Crucially, the JS330 often uses a DUAL-CYLINDER tension system (two hydraulic/grease cylinders) for enhanced stability and adjustment precision.

  • Seals & Bearings: Multi-labyrinth seals and heavy-duty roller bearings to exclude contaminants.

  • Pivot Pins, Bushings, & Retainers.

  • Track Guard: Protects the tension cylinder(s) from impacts.

Key Points for the JS330 Fabricated Idler Assembly

• Critical Wear Item: Endures high stress, abrasion, and impacts. A primary undercarriage wear component.

• Unique Dual-Cylinder Tensioning: A signature JCB feature on larger models like the JS330. Provides more even pressure and control but adds complexity. Verify cylinder type (hydraulic vs. grease) for your specific machine.

• Undercarriage Health Impact:

  • Directly affects track tension, alignment, and wear (on chains, rollers, sprockets).

  • Impacts machine stability, tracking, and fuel efficiency.

• Failure Signs:

  • Worn/idler flanges (reduced width, uneven profile).

  • Excessive wheel play or wobble.

  • Leaks from tension cylinder(s).

  • Inability to maintain correct track tension.

  • Abnormal track noise or derailment risk.

• Maintenance: Regular inspection for wear (measure flange width!), cylinder leaks, and bearing play is essential. Maintain correct track tension to maximize undercarriage life.

• Replacement: Significant cost due to size/complexity. Timely replacement prevents costly damage to other undercarriage parts.

• OEM vs. Aftermarket:

  • OEM (JCB): Guaranteed fit, quality, and compatibility. Highest cost. Requires precise model/year/serial number (e.g., JS330 LC, specific production year). Part numbers like 25/176700 may apply - ALWAYS CONFIRM.

  • Quality Aftermarket: Reputable brands (ITM, Berco, Vema Track, Sandvik) offer compatible assemblies. Significant cost savings possible with good durability. Must specify JS330 compatibility and confirm dual/single cylinder design.

  • Budget Aftermarket: Higher risk of premature failure, poor sealing, or incorrect fitment. Can lead to downtime and collateral damage.

Why This Matters to You

• Purchasing: Ensures you order the correct complete assembly for the JS330's front idler position, understanding its fabricated construction and critical dual-cylinder tension system.

• Maintenance: Highlights a key inspection point affecting overall undercarriage health and machine performance.

• Troubleshooting: Helps identify the idler assembly as a potential cause for track issues (derailment, tension loss, uneven wear).

• Cost/Value: Informs decisions between OEM reliability and aftermarket savings.

Critical Action When Ordering:
ALWAYS PROVIDE YOUR JCB JS330'S FULL SERIAL NUMBER (S/N). Undercarriage components frequently change during production runs. Use:

1. JCB's official online parts catalog (via dealer login).

2. Reputable aftermarket supplier catalogs (using your S/N).

3. Consult your JCB dealer or trusted undercarriage specialist.
