Komatsu/KM2847/9109492/2175030/PC650/JD550/ZX650/EX550 Carrier Roller Assembly/Heavy-duty excavator undercarriage component manufacture-DPW PARTS

Product Specifications

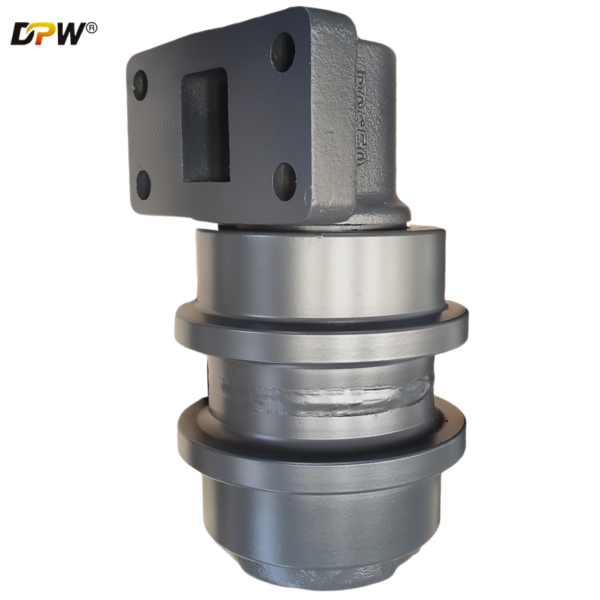

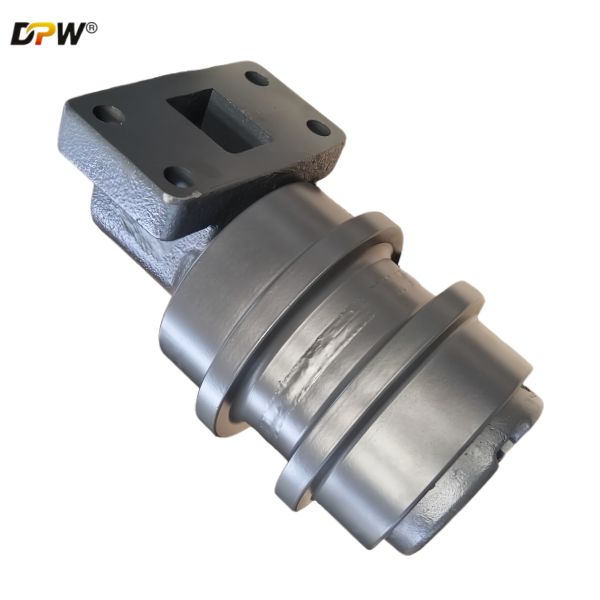

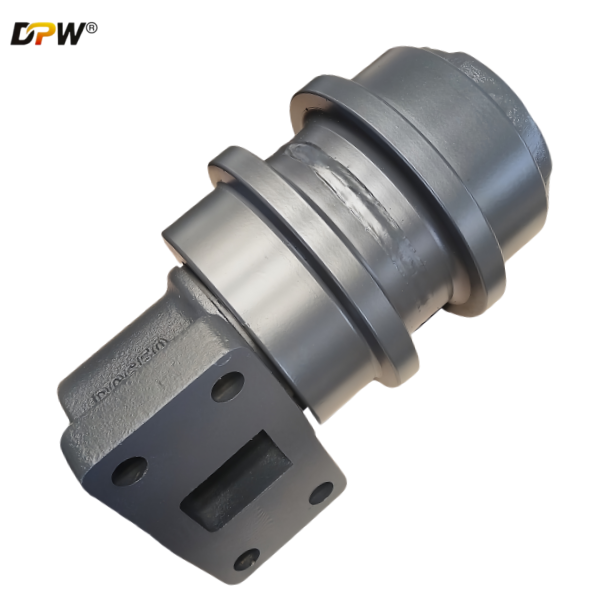

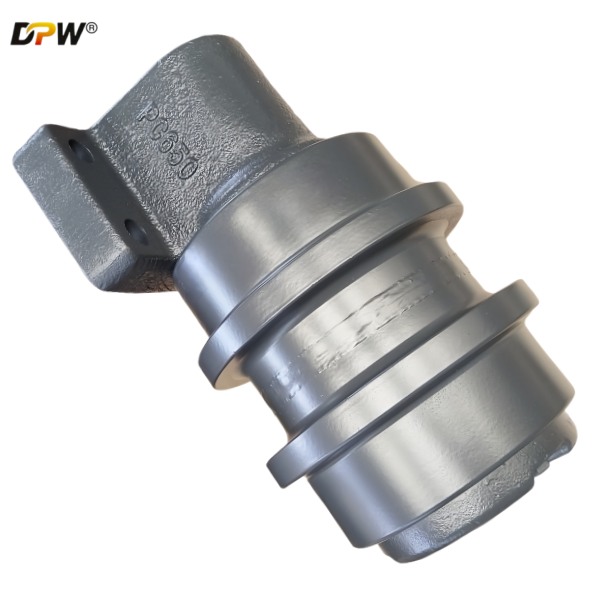

Professional Technical Description: Komatsu PC650 Carrier Roller Assembly

1. Product Overview and Primary Function

The Komatsu PC650 Carrier Roller Assembly, also commonly referred to as a "top roller" or "upper roller," is a critical component mounted on the upper frame of the undercarriage of the Komatsu PC650-series large excavators. Its primary function is to support the upper section of the track chain as it returns from the front idler to the drive sprocket. It maintains proper track alignment and sag (tension) on the top span of the track, preventing excessive vertical movement, oscillation, and whipping that can occur during high-speed travel or sudden changes in direction. This directly contributes to machine stability, reduces unnecessary wear on other undercarriage components, and ensures efficient power transfer.

2. Key Functional Roles

• Track Support: Bears the weight of the upper run of the track chain, preventing it from sagging excessively and contacting the upper track frame, which would cause rapid wear to both the track links and the frame.

• Alignment and Guidance: Works in conjunction with the track guides (or guards) on the track chain to maintain lateral alignment of the upper track, preventing derailment.

• Oscillation Dampening: Absorbs vertical vibrations and shocks from the track chain, providing a smoother travel experience and reducing stress on the entire undercarriage system.

• Wear Protection: By supporting the track, it protects the more expensive and structurally critical upper track frame from direct wear and impact damage.

3. Detailed Component Breakdown & Construction

A carrier roller is a simpler assembly than a idler or final drive but is engineered for durability and continuous rotation under load. A typical assembly consists of:

• Roller Shell (Body): The outer cylindrical surface that directly contacts the track chain link. For the PC650, this is a heavy-duty, robust component. It is typically manufactured from high-carbon, high-strength steel. The outer running surface is precision-machined and is often induction hardened to a significant depth (e.g., 50-55 HRC) to provide extreme resistance to abrasive wear from the track chain.

• Shaft (Spindle or Journal): A hardened and ground steel shaft that is pressed or bolted securely into the mounting bracket. This shaft is the stationary axis around which the roller rotates. It is designed to resist bending moments from the machine's weight.

• Bearing System: Utilizes two large, heavy-duty tapered roller bearings (or occasionally journal bearings in some designs) pressed into the ends of the roller shell. These bearings are selected to handle the significant radial loads imposed by the track's weight and machine dynamics.

• Sealing System: This is a critically important subsystem. Komatsu employs a multi-lip, positive-action seal system, often including:

  • Main Lip Seal: A primary seal that prevents grease from escaping and contaminants from entering the bearing cavity.

  • Dust Lip: An outer secondary lip designed to exclude dirt, mud, and abrasive particles.

  • Metal Case: The seals are often housed in a metal case that is pressed into the roller, ensuring a secure fit and heat dissipation.
    Many modern Komatsu rollers are Lube-for-Life, meaning they are sealed and pre-lubricated at the factory and require no routine greasing.

• Flanges (Optional): Some carrier roller designs for larger machines like the PC650 may incorporate small flanges or be of a double-flange design to provide additional lateral guidance for the track chain.

• Mounting Bracket (Boss): The forged or fabricated housing that contains the shaft and provides the bolting interface to attach the entire assembly to the excavator's track frame.

4. Material and Manufacturing Specifications

• Material: The roller shell and shaft are typically constructed from high-grade alloy steels (e.g., SCMn440 or equivalent), chosen for their excellent strength and hardenability.

• Manufacturing Processes: The manufacturing process involves forging or machining the shell from a steel blank, precision boring for bearings, induction hardening of the outer diameter, grinding of critical surfaces, and automated pressing of bearings and seals.

• Surface Treatment: The assembly is shot-blasted and painted with Komatsu's standard corrosion-resistant yellow paint after machining and testing.

5. Application and Compatibility

This assembly is specifically designed for the Komatsu PC650-3, PC650-5, PC650-6, PC650-7, and PC650-8 model excavators. It is a wear item and is subject to constant abrasion. Carrier rollers are typically replaced in sets across the entire upper track frame to ensure even support and wear. Using the correct Komatsu-specified part is essential for maintaining proper track clearance and alignment.

6. Importance of Genuine or Premium-Quality Parts

Using a Komatsu Genuine or a high-quality aftermarket equivalent ensures:

• Dimensional Accuracy: Perfect fit ensures correct track rail guidance and proper clearance with the track chain.

• Material Integrity: Certified materials and heat treatment processes guarantee the roller shell will achieve its advertised service life without premature wear or failure.

• Seal Reliability: The quality of the sealing system is the primary determinant of the roller's lifespan. Premium seals prevent lubricant loss and contaminant ingress, which are the leading causes of bearing failure and roller "freeze-up."

• Performance: Designed to work in harmony with the specific track chain pitch and link height of the PC650.

7. Maintenance and Operational Considerations

• Regular Inspection: During routine walk-arounds, operators should check for:

  • Rotation: The roller should turn freely. A seized roller that does not spin will act as a brake, causing accelerated wear to itself and the track chain links.

  • Flange Wear: Check for significant wear on the guiding flanges.

  • Oil/Grease Leaks: Signs of grease around the seal area or on the roller body can indicate a failed seal, leading to imminent bearing failure.

  • Visual Damage: Cracks or deep gouges in the roller shell.

• Cleanliness: While built for harsh environments, packed mud and rocks around the rollers can increase wear on the seals and shell. Periodic cleaning is beneficial.

• Track Tension: Operating with incorrect track tension (too loose or too tight) can place abnormal loads on the carrier rollers, accelerating wear.
