Komatsu/21M-30-00301/PC650-8 Fabricated Guide Wheel/Forged Idler Assembly/Heavy duty Mining and Construction Equipment parts manufacture-DPW PART
| ||||||||||||||||||||||||||
Product Specifications

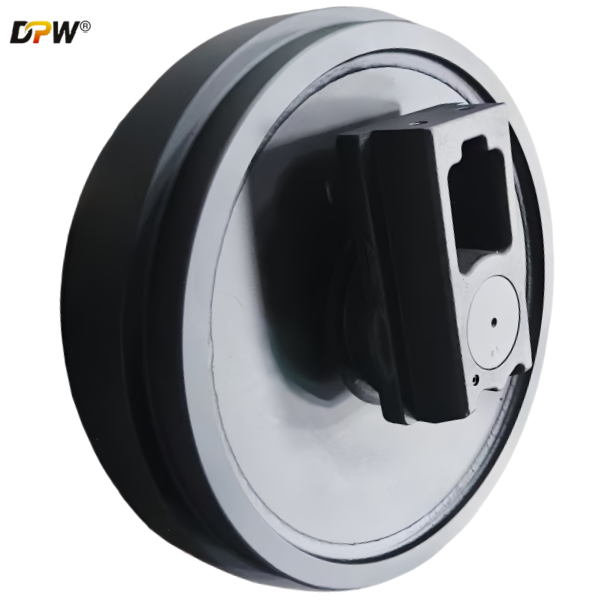

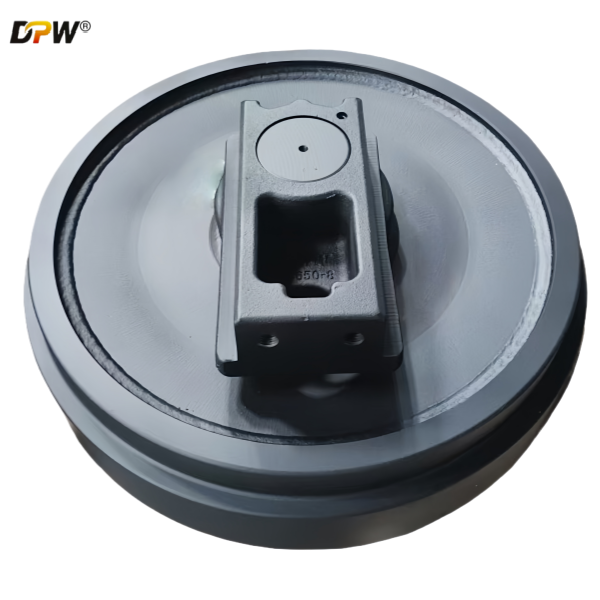

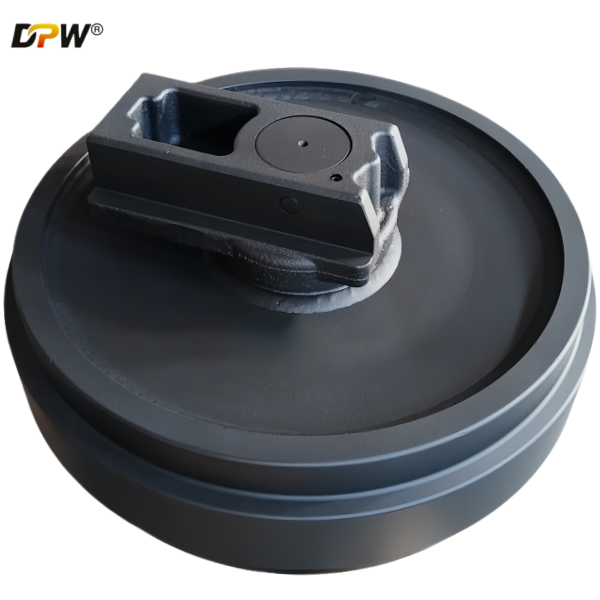

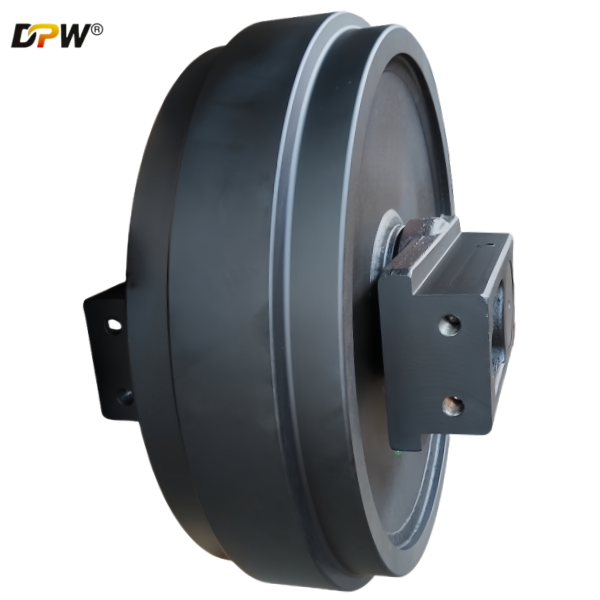

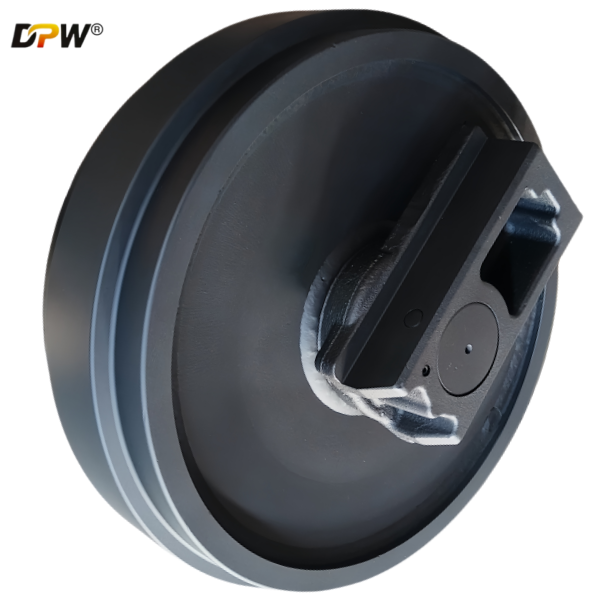

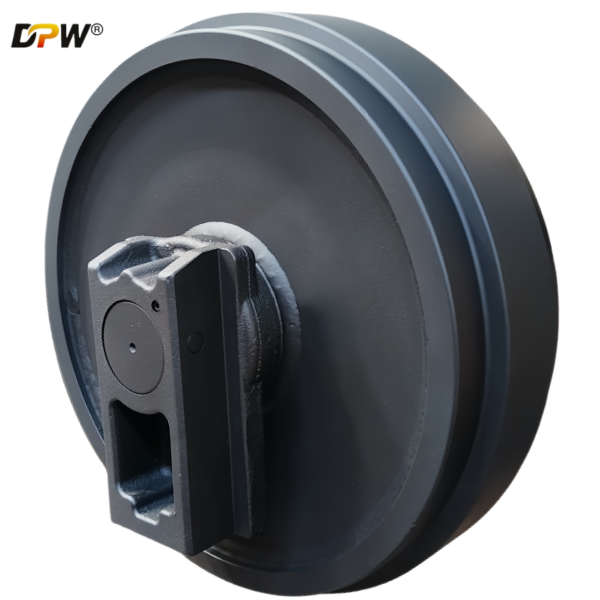

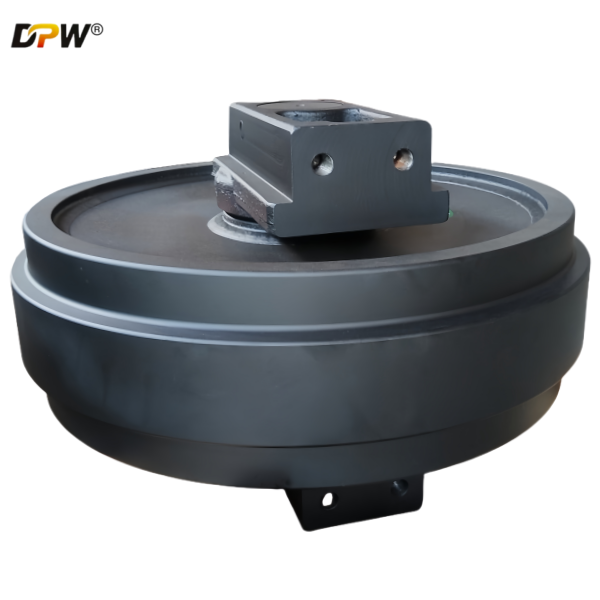

Professional Technical Description: Komatsu PC650-8 Fabricated Idler Group
1. Product Overview and Primary Function
The Komatsu PC650-8 Fabricated Idler Group is a fundamental and heavy-duty component within the undercarriage system of the Komatsu PC650-8 hydraulic excavator. This assembly acts as the forward directional guide and the primary interface for track tensioning. Its core functions are to ensure precise track alignment, support the weight of the track's forward section, absorb substantial travel and impact loads, and provide the mechanical means to adjust track sag to the manufacturer's specified tolerance. Proper operation of this group is critical for maximizing undercarriage life, ensuring machine stability, and optimizing power transfer during propulsion.
2. Key Functional Roles
Track Guidance and Containment: The idler's robust, double-flanged design rigidly confines the track chain, preventing lateral derailment during operation, especially when counter-rotating tracks for turns or working on sloped and uneven ground.
Load Support and Distribution: It bears a significant portion of the machine's operational weight and distributes the dynamic loads generated from travel, digging forces, and impact with obstacles across the undercarriage frame.
Tensioning Mechanism Anchor: The entire idler group is connected to the track frame via a massive hydraulic tensioning cylinder. Adjusting this cylinder moves the idler forward or backward, directly controlling the tension of the entire track chain.
Shock and Impact Absorption: Fabricated from high-strength steel, the group is engineered to absorb and mitigate the high-stress shock loads encountered in severe applications like mining, quarrying, and heavy construction.
3. Detailed Component Breakdown & Construction
The term "Fabricated" denotes that the core structure is not a single cast unit but is engineered from multiple plates of high-strength steel that are cut, formed, and welded together. This design allows for strategic reinforcement in high-stress areas and an optimized strength-to-weight ratio.
The "Group" typically encompasses the following integrated sub-components:
Fabricated Idler Wheel Body: The main structural element. It consists of a center hub fabricated and welded to two outer disc plates, creating a rigid, box-like structure. This design provides exceptional resistance to bending and torsional stresses. The internal bore is precision-machined to house the bearing and sealing components.
Idler Journal (Shaft): A large-diameter, hardened, and ground steel shaft. This shaft is the stationary axle that is securely mounted to the track frame. The idler wheel rotates around this stationary journal via the bearing assembly.
Flanges: Integral, massively proportioned flanges are welded to both sides of the wheel body. These flanges are the primary components for preventing track derailment and are typically built up with wear-resistant materials to extend service life.
Bearing System: Utilizes oversized, heavy-duty tapered roller bearings capable of supporting extreme radial and axial loads. These bearings are pre-adjusted and are designed for maximum durability under continuous, high-load conditions.
Sealing System: Employs Komatsu's advanced, multi-stage sealing technology, often a combination of lip seals and labyrinth seals. This system is designed to provide a positive barrier against the ingress of abrasive contaminants (e.g., silica dust, slurry, mud) and to retain lubricating grease within the bearing cavity, ensuring a long service life. Many Komatsu idlers feature Lube-for-Life design, meaning the bearings are sealed and pre-greased at the factory and do not require routine maintenance greasing.
Wear Ring: A hardened wear ring is often pressed onto the outside of the hub, providing a sacrificial, easily replaceable surface for the seal to ride on, protecting the more expensive journal.
Mounting Hardware and Tensioner Interface: Includes the necessary high-tensile strength bolts and hardware to attach the stationary journal to the track frame and to connect to the track adjustment cylinder (tensioner).
4. Material and Manufacturing Specifications
Material: Fabricated from high-yield strength, low-alloy steel plates (e.g., comparable to JIS SHY685 or ASTM A514). Critical wear surfaces, like the flanges and rim, are often made from abrasion-resistant steel (e.g., JIS SSAB Hardox® or equivalent).
Manufacturing Processes: Involves CNC laser/plasma cutting, precision press braking, automated welding processes (Sub-Arc Welding for deep penetration on critical joints), stress-relieving, and final CNC machining of all critical surfaces to ensure dimensional accuracy.
Surface Treatment: The assembly is typically shot-blasted and primed with a corrosion-inhibitive paint before receiving Komatsu's standard yellow finish paint.
5. Application and Compatibility
This idler group is a model-specific component designed for the Komatsu PC650-8 crawler excavator. It is a wear item, and its replacement is a standard procedure during undercarriage overhaul. Using the correct group is vital, as dimensional variances between models will affect track alignment, tensioning capability, and overall undercarriage wear patterns.
6. Importance of Genuine/OEM or Premium-Quality Aftermarket Parts
Selecting a Komatsu Genuine or a high-quality aftermarket equivalent ensures:
Precision Engineering: Exact conformance to OEM specifications for fit, function, and performance.
Material Integrity: Use of steels and heat treatments that meet the rigorous demands of the application.
Balanced Wear: Compatibility with the existing track chain, rollers, and sprockets to promote even wear across the entire undercarriage system, protecting your investment.
Reliability: Assurance that the bearing and sealing systems are of the highest quality, preventing premature failure and costly downtime.
7. Maintenance and Operational Considerations
Regular Inspection: Daily walk-around inspections should include checking for visible cracks in the weldments, significant flange wear, and any signs of grease leakage from the seals, which could indicate bearing seal failure.
Track Tension Management: Always maintain track tension according to the operator's manual, typically measured as "sag" between the top of the carrier roller and the bottom of the track. Operating with improper tension is a primary cause of accelerated undercarriage wear.
Cleanliness: While the sealing system is robust, operating in extreme conditions necessitates periodic cleaning of the idler area to remove packed material that can accelerate wear on the seal lips and flanges.
