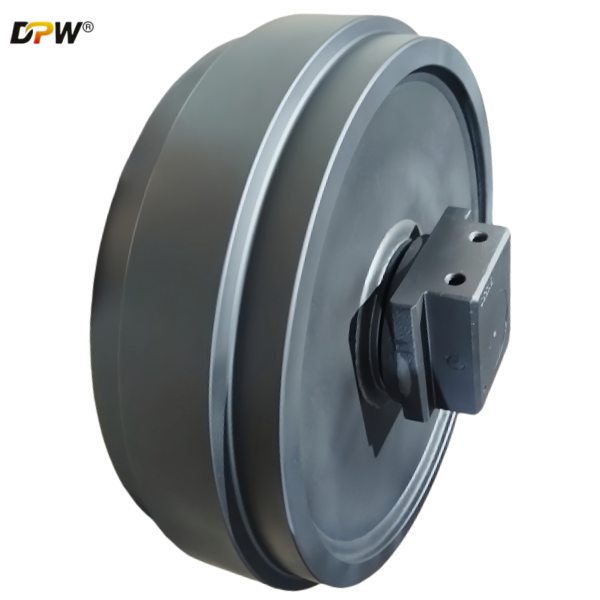

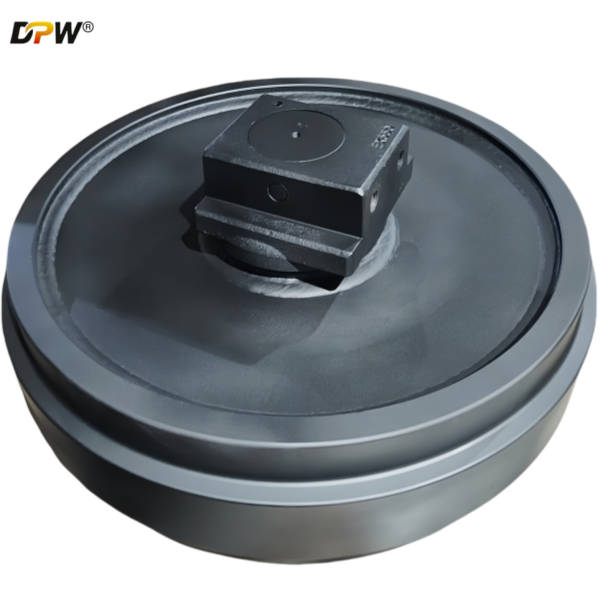

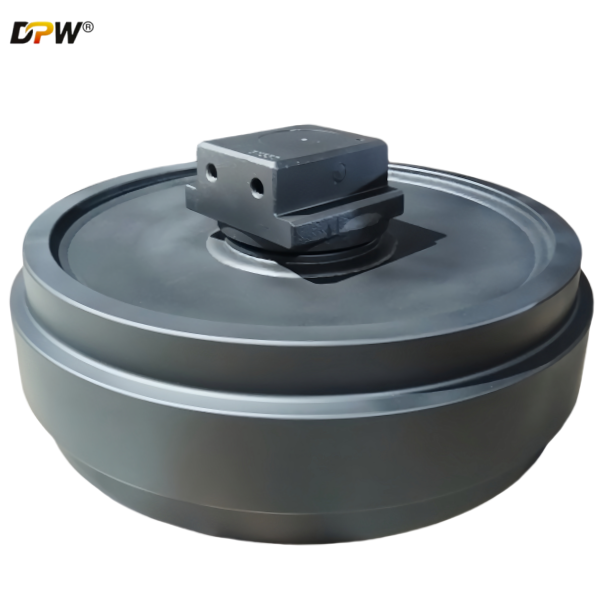

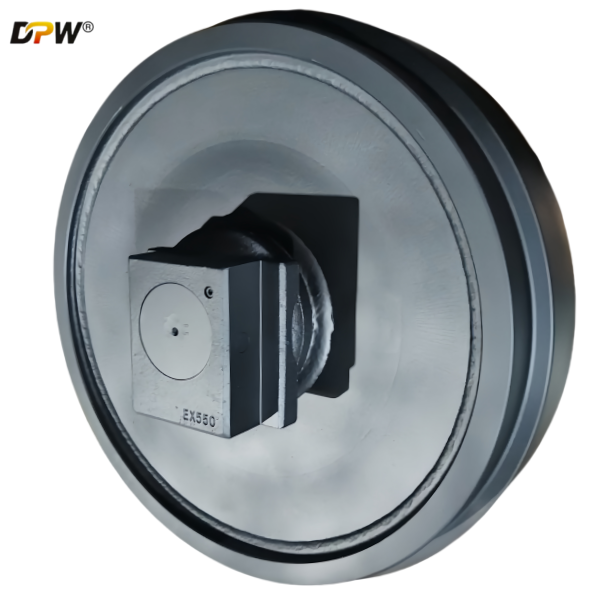

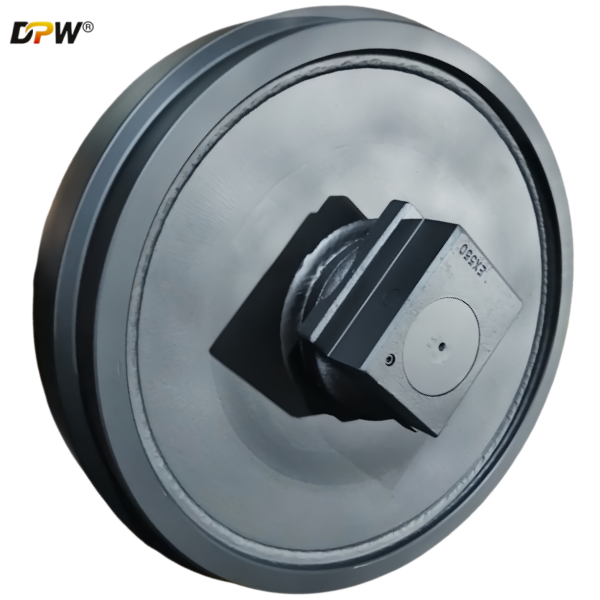

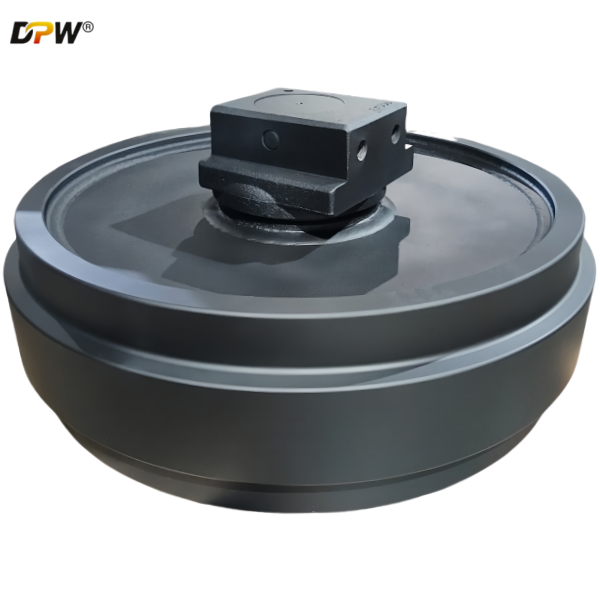

Hitachi-EX550 Fabricated Idler Group compatible EX600/ZX500/ZX600/ZX650 Heavy duty excavator undercarriages
Product Specifications
Hitachi EX550 Undercarriage Fabricated Idler Group: Technical Overview
The Fabricated Idler Group is a critical structural component within the undercarriage system of Hitachi EX550-series hydraulic excavators. Engineered to endure extreme operational stresses in mining, quarrying, and heavy construction environments, it ensures track chain alignment, tension maintenance, and load distribution across the excavator’s lower frame.
1. Design & Construction
Fabricated Architecture: Unlike cast idlers, this group uses high-tensile steel plates (e.g., 28CrMnMo or 35SiMn alloy) laser-cut and robotically welded into a unified assembly. This design eliminates weak points (e.g., porosity in castings) and enhances fatigue resistance under cyclic impacts.
Integrated Flange System: Features reinforced flanges (30% thicker than standard idlers) to prevent track derailment during side-loading or uneven terrain traversal.
Sealed Bearing Housings: Utilizes triple-lip aluminum seals with labyrinth grease channels to exclude abrasive contaminants (e.g., silica dust, slurry) while minimizing friction-induced heat.
Fabricated Architecture: Unlike cast idlers, this group uses high-tensile steel plates (e.g., 28CrMnMo or 35SiMn alloy) laser-cut and robotically welded into a unified assembly. This design eliminates weak points (e.g., porosity in castings) and enhances fatigue resistance under cyclic impacts.
Integrated Flange System: Features reinforced flanges (30% thicker than standard idlers) to prevent track derailment during side-loading or uneven terrain traversal.
Sealed Bearing Housings: Utilizes triple-lip aluminum seals with labyrinth grease channels to exclude abrasive contaminants (e.g., silica dust, slurry) while minimizing friction-induced heat.
2. Technical Specifications
Parameter Value Source Compatible Models EX550, EX550LC-3, EX600-6, ZX650
Operating Weight 54,000–56,400 kg (EX550/LC-3 variants)
Shaft Hardness HRC 55-60 (induction-hardened)
Load Capacity Dynamic loads ≤50 tons (axial/radial)
Seal Type Multi-lip aluminum ring + PTFE dust shields
| Parameter | Value | Source |
|---|---|---|
| Compatible Models | EX550, EX550LC-3, EX600-6, ZX650 | |
| Operating Weight | 54,000–56,400 kg (EX550/LC-3 variants) | |
| Shaft Hardness | HRC 55-60 (induction-hardened) | |
| Load Capacity | Dynamic loads ≤50 tons (axial/radial) | |
| Seal Type | Multi-lip aluminum ring + PTFE dust shields |
3. Functional Role in Undercarriage System
Track Guidance: Positions the track chain precisely to prevent lateral slippage during slewing or slope operation.
Tension Management: Works with the track adjuster cylinder to maintain optimal track sag (typically 20–40 mm), reducing premature wear on sprockets and links.
Impact Absorption: Distributes ground-generated shocks (e.g., rock collisions) across the fabricated frame, protecting the excavator’s final drives and rollers.
Track Guidance: Positions the track chain precisely to prevent lateral slippage during slewing or slope operation.
Tension Management: Works with the track adjuster cylinder to maintain optimal track sag (typically 20–40 mm), reducing premature wear on sprockets and links.
Impact Absorption: Distributes ground-generated shocks (e.g., rock collisions) across the fabricated frame, protecting the excavator’s final drives and rollers.
4. Durability Enhancements
Heat Treatment: Raceways undergo carburizing and tempering to achieve core toughness (impact absorption) and surface hardness (wear resistance).
Corrosion Protection: Phosphate coating + epoxy paint layer resists oxidation in saline or high-humidity environments.
Lubrication System: Centralized greasing ports enable efficient re-lubrication without disassembly, using EP2 lithium-complex grease (ISO VG 220).
Heat Treatment: Raceways undergo carburizing and tempering to achieve core toughness (impact absorption) and surface hardness (wear resistance).
Corrosion Protection: Phosphate coating + epoxy paint layer resists oxidation in saline or high-humidity environments.
Lubrication System: Centralized greasing ports enable efficient re-lubrication without disassembly, using EP2 lithium-complex grease (ISO VG 220).
5. Failure Prevention & Maintenance
Common Failure Modes:
Seal Degradation: Hardened lips permit grit ingress → bearing spalling. Solution: Replace seals every 2,000 hours.
Flange Deformation: Caused by track over-tensioning. Solution: Maintain tension at OEM-specified 250–300 kPa.
Installation Protocol:
Mounting surfaces must be machined to H7/k6 tolerance to avoid preload-induced friction.
Use torque wrenches (not impact guns) on flange bolts (target: 980 N·m).
Common Failure Modes:
Seal Degradation: Hardened lips permit grit ingress → bearing spalling. Solution: Replace seals every 2,000 hours.
Flange Deformation: Caused by track over-tensioning. Solution: Maintain tension at OEM-specified 250–300 kPa.
Installation Protocol:
Mounting surfaces must be machined to H7/k6 tolerance to avoid preload-induced friction.
Use torque wrenches (not impact guns) on flange bolts (target: 980 N·m).
