HYUNDAI 81NB-25601 & 81NB-25602 R520-9 Track Link Assembly (216-Pitch, 53-Link) – Technical Data Sheet & Product Analysis

Product Definition &Target Application Target Application

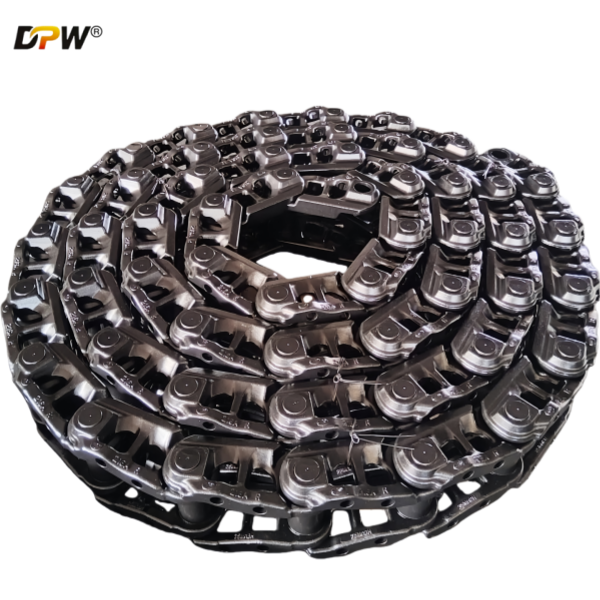

The HYUNDAI 81NB-25601/81NB-25602 designate a high-performance Track Link Assembly (Complete Track Chain) engineered for the HYUNDAI R520-9 large crawler excavator. This assembly is configured with a 216mm pitch and a total of 53 links per side, meeting the exact dimensional and load-bearing specifications of the OEM component. Manufactured to Mining & Heavy-Duty specifications by DPW Part (HAN GONG), this product is designed for severe-duty cycles in mining, large-scale infrastructure projects, and heavy excavation where extreme abrasion and high impact loads are prevalent.

Comprehensive Structural Analysis & Engineering Specifications

1. Link Body (Forged Component):

   • Base Material: Utilizes premium medium-carbon alloy steel forgings (e.g., 40Mn2, 42CrMo). The forging process ensures superior metallurgical integrity, eliminating voids and creating a continuous grain flow that dramatically enhances fatigue strength and impact toughness.

   • Precision Machining: CNC machining guarantees critical tolerances:

     • Bushing Bore: Honed to a precise diameter and surface finish for a consistent press-fit with the bushing.

     • Pin Bore: Machined to strict tolerances to ensure proper pin rotation and load distribution.

     • Sidebar Geometry: The height and contour of the sidebar are precisely controlled to ensure smooth tracking over rollers and idlers, minimizing scrub and asymmetric wear.

     • Seal & Retainer Grooves: Accurately machined to ensure positive sealing and prevent axial movement of internal components.

2. Track Bushing (Sprocket Engagement Surface):

   • Material Science: Fabricated from chromium-nickel-molybdenum alloy steel (e.g., 20CrNi2Mo). The exterior is treated via deep-case carburizing (typically 4-6mm depth) followed by hardening to achieve a surface hardness of HRC 60-64.

   • Functional Role: Serves as the primary wear interface with the drive sprocket. Its extreme hardness is engineered to resist the gouging and grinding action of sprocket teeth, directly extending undercarriage life.

3. Track Pin (Articulation Core):

   • Material and Treatment: Constructed from high-alloy steel (e.g., 45CrNiMoV). The pin undergoes quenching and tempering to attain an optimal balance: a hardened surface (approx. HRC 55-58) for wear resistance and a tough, ductile core to withstand repetitive bending and shear stresses without fracturing.

4. Sealed & Lubricated Rotating Joint System:

   • Multi-Component Seal Assembly: Employs a triple-defense sealing system commonly comprising:

     • A primary nitrile rubber (NBR) seal for grease retention.

     • A secondary polyurethane (PU) or fabric-reinforced lip seal as a dust barrier.

     • A floating metal seal ring to protect the rubber seals from direct abrasive ingress.

   • High-Performance Lubricant: The cavity is packed with molybdenum disulfide (MoS2) fortified, high-viscosity index grease capable of maintaining lubricity under high pressure and temperature.

   • Axial Retention: Utilizes heat-treated, high-tensile snap rings or bolted end caps designed to withstand the axial thrust loads generated during machine steering and pitching.

Mining-Grade Enhancements by DPW Part (HAN GONG)

• Enhanced Material Selection: Alloys are selected for optimal hardenability and notch toughness, exceeding the baseline requirements for standard construction applications.

• Integrated Manufacturing Process: DPW Part (HAN GONG) controls the production chain:

  • In-House Forging: Utilizes high-tonnage presses for consistent part density.

  • Automated Heat Treatment Lines: Computer-controlled furnaces ensure repeatable case depth and core properties.

  • Precision Grinding & Honing: Critical wear surfaces are finished to a precise Ra (roughness average) value to optimize seal life and reduce friction initiation.

• Stringent Quality Verification:

  • Batch Material Certification: Mill certificates and spectrometer verification for each steel lot.

  • Non-Destructive Testing (NDT): 100% magnetic particle inspection for surface cracks; ultrasonic testing for critical links to identify subsurface flaws.

  • Dimensional Metrology: Final assembly verification of pitch accumulation over multiple links, total 53-link length, and link height/width to ensure perfect machine compatibility.

  • Performance Testing: Sample assemblies undergo rotary fatigue testing to validate seal integrity and joint lifespan under simulated load conditions.

Compliance & Performance Guarantee

• OEM Interchangeability: The 81NB-25601/25602 assembly is engineered for direct, no-modification replacement on the HYUNDAI R520-9, ensuring proper sprocket meshing, track tension, and ground clearance.

• Load Rating: Designed for the dynamic working weight and extreme breakout forces of the 50+ ton R520-9 excavator.

• Wear Resistance: The combination of deep-hardened components and superior sealing provides exceptional resistance to both abrasive wear (from soil/rock) and fretting wear (internal micro-movement).

Manufacturer Profile: DPW Part (HAN GONG)
