DOOSAN/2270-1084E/DX300/DX340 Forged Idler Wheel Assembly/Fabricated Idler Group manufacture-DPW PARTS

Product Specifications

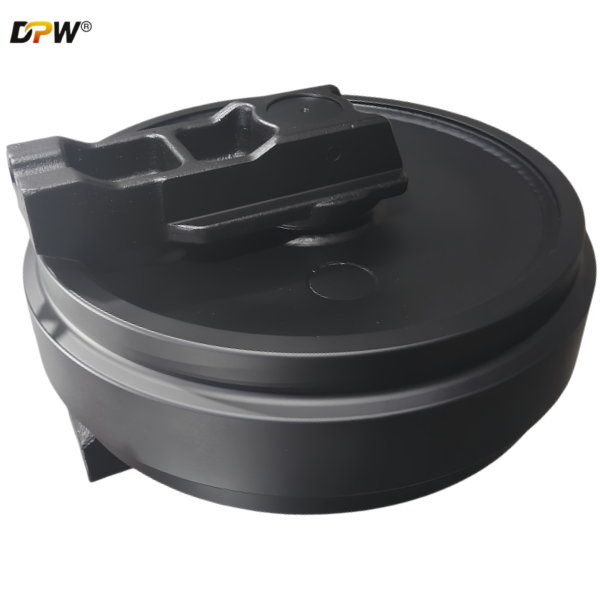

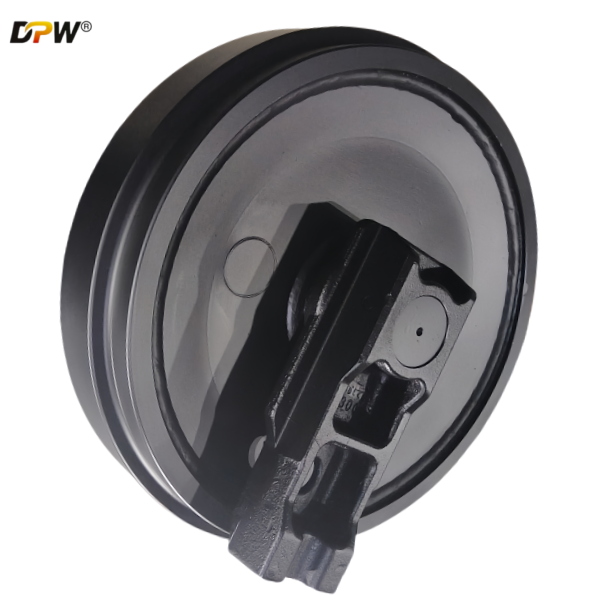

Professional Technical Description: DOOSAN DX340 Forged Idler Assembly

1. Product Overview and Primary Function

The DOOSAN DX340 Forged Idler Assembly is a critical undercarriage component designed for the DOOSAN DX340 crawler excavator. Its primary function is to serve as the forward guide and tensioning point for the machine's track chain. This assembly is responsible for maintaining precise track alignment, supporting the weight of the track's forward section, absorbing travel and impact loads, and providing the necessary pivot point for adjusting track tension. The use of a forged construction is a key differentiator, offering superior strength and durability for the demanding applications typical of a 40-ton class excavator.

2. Key Functional Roles

• Track Guidance and Containment: The idler's robust, double-flanged design guides the track chain, preventing lateral derailment during operation, especially when turning or working on uneven terrain.

• Load Support: It bears a significant portion of the machine's operational weight and distributes dynamic loads from travel and impact over obstacles.

• Tensioning Pivot: The assembly is connected to the track frame via a hydraulic tensioner cylinder. Adjusting this cylinder moves the idler forward or backward, directly controlling the tension (sag) of the entire track chain.

• Impact Absorption: The forged construction is engineered to absorb and dissipate high-stress shock loads encountered in rugged working environments.

3. Detailed Component Breakdown & Construction

The term "Forged" is the critical specification. Unlike a fabricated idler (made from welded plates) or a cast idler, a forged idler is created by heating a single piece of high-strength steel to a plastic state and forming it under immense pressure in a die. This process aligns the steel's grain flow to the shape of the idler, resulting in a continuous, non-porous structure with exceptional impact strength, fatigue resistance, and structural integrity.

The assembly typically consists of the following integrated sub-components:

• Forged Idler Wheel: The main component. The forging process creates a monolithic wheel with integral flanges, eliminating the potential weak points of welds found in fabricated designs. This provides unmatched resistance to bending, cracking, and shock loading. The running surface is precision-machined and is often induction hardened to resist abrasive wear from track link contact.

• Idler Journal (Shaft): A hardened, ground, and high-tensile steel shaft that serves as the stationary axle. It is securely mounted to the track frame, and the idler wheel rotates around it on bearings.

• Bearing System: Utilizes a set of large-diameter, heavy-duty tapered roller bearings. These bearings are designed to support immense radial loads from the machine's weight and axial thrust loads from operational forces.

• Sealing System: Employs a multi-lip, positive-exclusion seal system (such as a labyrinth-style or Duo-Cone type seal). This system is critical for creating a robust barrier to prevent the ingress of abrasive contaminants (dirt, sand, mud) and to retain lubricating grease within the bearing cavity, ensuring long service life. Many modern idlers, including those from Doosan, are Lube-for-Life, meaning the bearings are sealed and pre-greased at the factory and do not require routine maintenance.

• Wear Surfaces: The flanges, being integral to the forged wheel, are extremely robust. They are often built up with additional hard-facing material in high-wear areas to further extend service life.

• Mounting Hardware: Includes high-strength bolts to secure the stationary journal to the track frame and the hydraulic tensioner cylinder.

4. Material and Manufacturing Specifications

• Material: The idler wheel is forged from high-quality, high-carbon alloy steel (e.g., equivalent to AISI 1045 or higher grades like 4140). This material is chosen for its excellent strength and toughness properties.

• Manufacturing Processes: The core process is closed-die forging. Subsequent processes include precision machining of the bore and running surfaces, heat treatment (normalizing to relieve stress), induction hardening of the wear rim, and dynamic balancing.

• Surface Treatment: The assembly is typically shot-blasted to clean and prepare the surface before being primed and painted with Doosan's standard paint system for corrosion protection.

5. Application and Compatibility

This specific assembly is designed for use on the Doosan DX340 crawler excavator. It is a wear item and is subject to gradual degradation from abrasion and high-cycle loads. Replacing the idler assembly is a standard procedure during undercarriage maintenance or overhaul. Ensuring the correct model compatibility is essential for proper track alignment, tensioning, and overall undercarriage performance.

6. Importance of Genuine or High-Quality Replacement Parts

Using a genuine Doosan or a certified high-quality equivalent forged idler ensures:

• Superior Strength and Durability: The forging process provides the best possible resistance to impact and shock loads, reducing the risk of catastrophic failure.

• Precision Fitment: Guaranteed dimensional compatibility with the DX340's track chain, rollers, and sprocket, promoting even wear across the entire undercarriage system.

• Optimal Performance: Engineered to work seamlessly with the machine's hydraulic tensioning system.

• Long Service Life: High-quality seals and bearings maximize the operational life of the assembly, reducing downtime and total cost of ownership.

7. Maintenance and Operational Considerations

• Regular Inspection: Operators should frequently check for abnormal flange wear, cracks (though rare in forged units), and any signs of grease leakage from the seal area, which indicates seal failure.

• Proper Track Tension: Always maintain track tension according to the manufacturer's specifications. Overtensioning places excessive stress on the idler bearings and the entire undercarriage, while undertensioning can lead to derailment and accelerated wear.

• Contamination Control: While the sealing system is robust, operating in extremely abrasive environments (e.g., sand, fine grit) can accelerate seal wear. Keeping the undercarriage reasonably clean is beneficial.
