Caterpillar E365B/E374D/136-2429/Fabricated Front Idler Wheel Assembly/Idler Forging manufacture and Supplier Based in China-DPW PARTS
| ||||||||||||||||||||||||||
Product Specifications

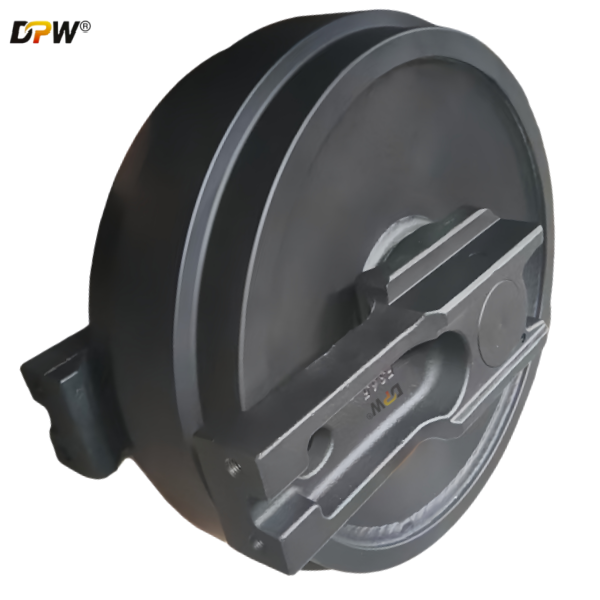

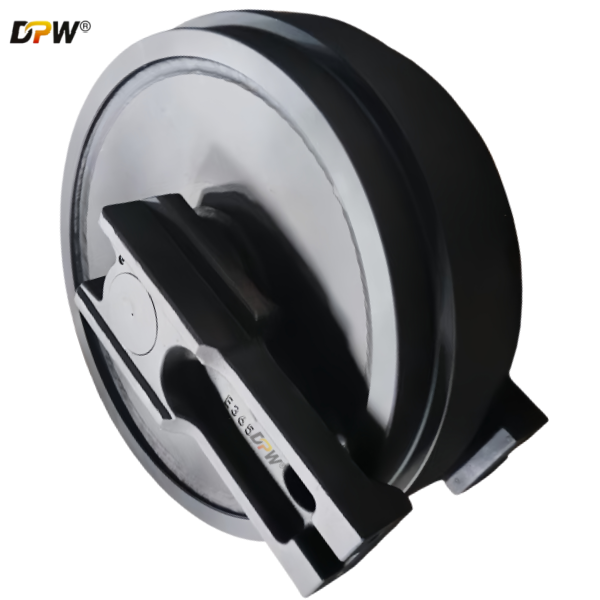

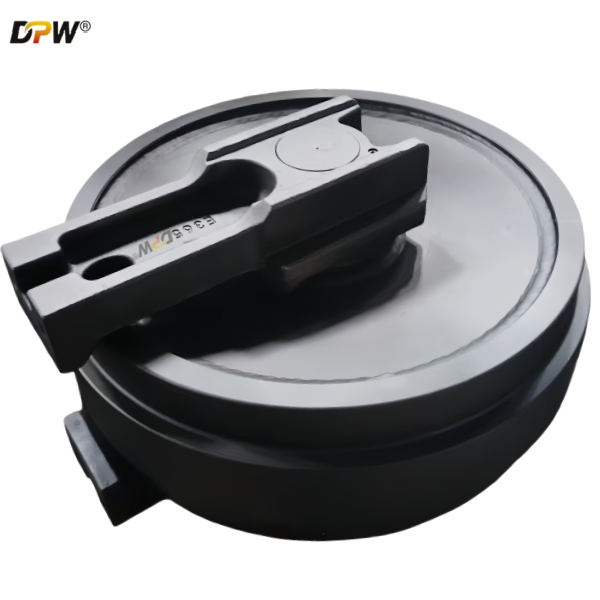

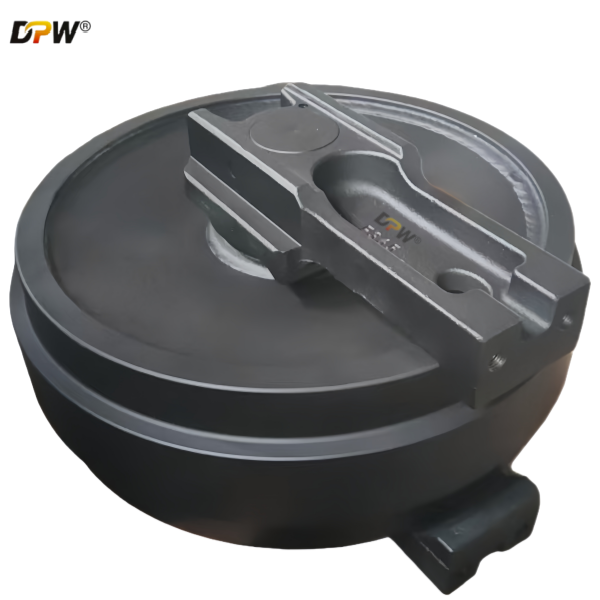

Professional Technical Description: Caterpillar E365 Fabricated Front Idler Wheel Assembly
1. Product Overview and Primary Function
The Caterpillar E365 Fabricated Front Idler Wheel Assembly is a critical structural and operational component within the undercarriage system of the Caterpillar E365 Series Large Excavators. Its primary function is to serve as the forward-most guide and tensioning point for the machine's continuous track chain. It is engineered to maintain precise track alignment, absorb forward travel loads and impacts, and facilitate the necessary adjustment for proper track sag (tension), which is vital for optimal undercarriage performance, service life, and machine stability.
2. Key Functional Roles
Track Guidance: The idler's precisely machined flanges guide the track chain links and prevent lateral derailment during operation, especially during turns and on uneven terrain.
Load Bearing: It supports the weight of the forward section of the track and absorbs dynamic loads generated during digging, travel, and traversal over obstacles.
Tensioning Pivot: The entire idler assembly is mounted to the track frame via a hydraulic tensioner cylinder. This allows the operator to adjust the position of the idler forward or backward to apply or release tension on the track chain.
Impact Absorption: The idler wheel and its robust mounting structure are designed to absorb and dissipate shock loads from impacts with rocks, debris, and other obstructions.
3. Detailed Component Breakdown & Construction
The term "Fabricated" is a key descriptor, indicating that the core structure of the idler is not a single cast piece but is constructed from multiple high-strength steel plates that are cut, formed, and welded together. This fabrication process allows for optimized strength-to-weight ratios and precise engineering of stress-critical areas.
The assembly typically consists of several integrated sub-components:
Fabricated Idler Body/Hub: The main structural element. It is manufactured from high-strength, abrasion-resistant steel (AR steel) plates. The fabrication involves welding a center hub section to two outer disc plates, creating a strong, rigid, yet lightweight structure. The internal bore is machined to precise tolerances to house the idler journal (shaft) and bearings.
Outer Rim and Flanges: The outer circumference where the track chain rollers make contact. It features integrally welded, massive flanges on both sides to securely contain the track chain links. The running surface is often induction hardened or built up with hard-facing material to resist extreme wear from contact with the track chain links.
Idler Journal (Shaft): A hardened and precisely ground steel shaft that is pressed or bolted into the fabricated idler body. This shaft is the stationary axis upon which the idler wheel rotates. It is engineered to withstand significant bending moments and shear forces.
Bearing System: A set of large-diameter, heavy-duty tapered roller bearings is housed within the idler body. These bearings are designed to support immense radial and axial loads while allowing smooth rotation of the wheel around the stationary journal. They are typically sealed and pre-lubricated for life (Lube-for-Life design) to exclude contaminants and require minimal maintenance.
Seals: Multi-lip, positive-exclusion seal systems (often Caterpillar's proprietary Duo-Cone Seal design) are installed on both sides of the idler. These seals create a robust barrier, protecting the critical bearing components from abrasive contaminants like mud, sand, and water, which are prevalent in excavator operating environments.
Mounting Hardware: The assembly includes large-diameter bolts to secure the stationary journal to the track frame and the hydraulic tensioner cylinder.
4. Material and Manufacturing Specifications
Material: Primarily fabricated from Caterpillar grade T-1 type (or equivalent) high-yield strength steel (e.g., ASTM A514). Wear surfaces are often AR steel plate (e.g., AR400 or AR500).
Manufacturing Processes: Computer-Controlled (CNC) plasma/laser cutting, precision bending, Submerged Arc Welding (SAW) and Gas Metal Arc Welding (GMAW) for high-integrity welds, CNC machining of critical surfaces, and induction hardening of the wear rim.
Surface Treatment: Primed and painted with Caterpillar Yellow corrosion-resistant paint system. Critical machined surfaces are coated with rust preventative.
5. Application and Compatibility
This specific assembly is designed exclusively for use on the Caterpillar E365 (and potentially its equivalent models like the 365C, 365B, or 365D, though exact compatibility must always be verified by serial number). It is a wear item, meaning it is subject to gradual degradation and is considered a replaceable component during the machine's service life.
6. Importance of Genuine/OEM Parts
Using a genuine Caterpillar Fabricated Idler Assembly ensures:
Perfect Fitment: Guaranteed dimensional compatibility with the track chain, rollers, and track frame.
Optimal Performance: Engineered to work in perfect harmony with all other undercarriage components.
Maximum Service Life: Manufactured to Caterpillar's exacting material and quality standards to provide the longest possible operational life, reducing total cost of ownership.
Warranty Protection: Typically covered by Caterpillar's warranty program.
7. Maintenance and Operational Considerations
Regular Inspection: Operators should frequently check for excessive flange wear, cracks in the weldments, and oil leakage from the seal area, which indicates seal failure.
Proper Track Tension: Maintaining the correct track tension as specified in the operator's manual is paramount. Overtensioning accelerates wear on the idler bearings, bushings, and chains. Undertensioning can lead to track derailment and excessive wear from slapping.
Contamination Avoidance: While the seals are robust, operating in deep mud or abrasive slurry can accelerate seal and bearing wear. Post-operation cleaning is advised.
