Comprehensive Technical Specification: Caterpillar 124-1296 / 179-2929 / E345/E349 Track Sprocket Assy / Track Drive Sprocket Wheel Assembly

1. Executive Product Overview and Functional Definition

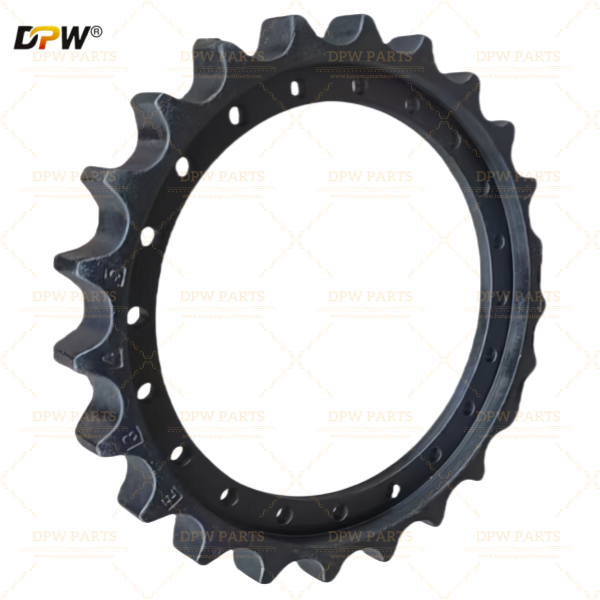

The Caterpillar 124-1296 / 179-2929 / E345/E349 Track Sprocket Assembly, also designated as the Track Drive Sprocket Wheel Assembly, represents a critical power transmission component within the undercarriage system of medium-to-large class Caterpillar hydraulic excavators. This assembly, supplied globally by HAN GONG / DPW PARTS, serves as the terminal drive interface that converts hydraulic motor torque into linear traction force for machine propulsion.

As a high-integrity power train module engineered for severe service applications, this assembly encompasses the complete final drive sprocket system—integrating the toothed drive rim with the mounting configuration specific to Caterpillar's E345 and E349 platform machines. The component operates within an environment characterized by extreme dynamic loads, abrasive contamination, and high-impact shock forces typical of mining, quarry, and heavy construction operations .

2. Engineering Specifications and OEM Equivalency

2.1 Part Number Rationalization and Cross-Reference

The product offering encompasses multiple OEM reference numbers that correspond to specific machine configurations and production periods:

Source Note: Manufactured by HAN GONG / DPW PARTS as a premium aftermarket alternative, this assembly undergoes rigorous quality assurance protocols to meet or exceed original Caterpillar specifications. As an ISO 9001-certified facility based in Quanzhou, China—a global hub for construction machinery component manufacturing—the supplier maintains vertical integration from material sourcing through final assembly .

2.2 Dimensional and Performance Parameters

The engineering specifications for this assembly are precisely calibrated to match the original equipment interface requirements:

Physical Configuration

• Tooth Quantity: Even number configuration (typically 20H-23 teeth) providing balanced load distribution and optimized engagement with track chain bushings

• Pitch Diameter: Precision-machined to match track chain pitch (standard Caterpillar heavy-duty configuration)

• Bolt Pattern: Multi-bolt flange arrangement engineered for exact final drive hub mating with Class 10.9 or 12.9 fastener specifications

• Overall Width: Dimensioned to accommodate specific track guide clearance requirements

Material and Metallurgical Properties

• Base Material: Forged high-carbon alloy steel (chromium-molybdenum or manganese-molybdenum variants) ensuring optimized grain flow for impact resistance

• Hardness Profile:

  • Surface Hardness: 52-58 HRC (Rockwell C Scale) on tooth profiles

  • Core Toughness: Maintained ductility for shock absorption

  • Case Depth: 6-10mm induction-hardened layer for extended wear life

3. Technical Component Breakdown and Engineering Analysis

3.1 Sprocket Drive Rim Assembly

The drive rim constitutes the primary wear component and load-bearing interface with the track chain. HAN GONG/DPW PARTS employs advanced manufacturing methodologies to ensure structural integrity:

Manufacturing Process: The sprocket rim undergoes closed-die forging from vacuum-degassed alloy steel, eliminating internal porosity and ensuring directional grain orientation following the tooth profile. This forging process provides superior fatigue resistance compared to cast alternatives .

Tooth Profile Engineering:

• Rock-Service Geometry: The tooth form incorporates optimized pressure angles and root radii to minimize stress concentrations while accommodating the track bushing interface

• Flank Configuration: Precision-machined tooth flanks ensure uniform load distribution across multiple teeth during engagement, reducing peak contact stresses

• Root Relief: Engineered clearance at tooth roots prevents interference and accommodates minor track misalignment

Heat Treatment Protocol: Following rough machining, components undergo controlled austenitizing, quenching, and tempering cycles, followed by selective induction hardening of tooth profiles. This differential hardening approach creates a wear-resistant surface while maintaining a ductile core capable of absorbing impact energy without catastrophic failure .

3.2 Integrated Mounting Configuration

The assembly incorporates the precise mounting geometry required for Caterpillar E345/E349 final drive integration:

Hub Interface: Precision-machined mounting surface with controlled flatness (typically within 0.05mm) ensures uniform clamp load distribution when secured to the final drive planetary carrier. The bolt circle diameter and hole sizing conform to OEM specifications for direct interchangeability .

Spline Engagement (where applicable): For configurations utilizing splined interfaces, involute splines are cut to Class 5 or better tolerance, ensuring zero-backlash power transmission and extended spline life through optimized load distribution.

3.3 Optional Segmented Sprocket Configuration

Reference part 124-1296 specifically denotes a segmented sprocket design utilized in certain Caterpillar undercarriage configurations . This engineering approach offers distinct advantages:

• Individual Segment Replaceability: Worn segments can be replaced without complete disassembly of the final drive or track system

• Reduced Maintenance Downtime: Field replacement capability minimizes machine downtime

• Material Optimization: Segments can be manufactured with enhanced wear materials while the hub utilizes different metallurgy

The segmented design employs precision-machined locating features and high-strength mounting hardware to maintain proper tooth alignment across segment joints .

4. Integration with Excavator Undercarriage Systems

4.1 System-Level Function

Within the complete undercarriage architecture, the Track Sprocket Assembly performs multiple critical functions:

Torque Transmission: Acts as the final mechanical advantage stage, converting high-speed, low-torque hydraulic motor input into the high-torque, low-speed rotation required for machine propulsion .

Track Chain Engagement: The sprocket teeth interface directly with track chain bushings (or pins in sealed and lubricated chain systems), pulling the chain around the drive system to generate linear motion. Each tooth engagement transmits substantial tensile loads through the track chain.

Structural Load Bearing: The assembly must withstand:

• Radial loads from machine weight and track tension

• Tangential loads from torque transmission

• Axial thrust loads during steering and side-slope operation

• Impact loads from track chain engagement and ground contact irregularities

4.2 Interaction with Adjacent Components

The sprocket assembly operates as part of an integrated power train system:

• Hydraulic Travel Motor: Directly flanged to the final drive, providing rotational input

• Planetary Final Drive: Multi-stage gear reduction (typically 2-3 stages) mounted within or adjacent to the sprocket hub

• Track Chain: Continuous engagement with sprocket teeth, requiring precise pitch matching for proper load distribution

• Track Roller Frame: Structural mounting point that maintains sprocket alignment within the undercarriage

5. Supplier Capabilities: HAN GONG / DPW PARTS

5.1 Manufacturing Infrastructure

HAN GONG operates as a specialized undercarriage component manufacturer within the Quanzhou industrial region, maintaining dedicated production lines for track chains, sprockets, rollers, and idlers. DPW PARTS serves as the global marketing brand for these heavy-duty chassis components .

Production Capabilities:

• Forging Capacity: Multi-ton closed-die forging presses for sprocket rim and segment production

• CNC Machining: Multi-axis machining centers for precision tooth cutting, bolt pattern drilling, and mounting surface preparation

• Heat Treatment: In-house controlled atmosphere furnaces with integral quenching systems

• Quality Assurance: Coordinate measuring machines (CMM), ultrasonic testing, and hardness verification protocols

5.2 Quality Control and Certification

Each sprocket assembly undergoes comprehensive inspection protocols:

• Dimensional verification against OEM specifications

• Magnetic particle inspection of critical stress zones

• Hardness testing across tooth profiles

• Bolt hole thread verification

• Surface finish and coating inspection

Manufacturing processes comply with international quality standards, with certification available upon request .

6. Selection and Procurement Considerations

6.1 Compatibility Verification

When selecting the appropriate sprocket assembly for Caterpillar E345/E349 applications, the following verification steps are recommended:

1. Machine Serial Number Confirmation: Provide complete machine serial number to supplier for positive identification

2. Track Chain Pitch Measurement: Verify existing chain pitch matches sprocket specifications

3. Tooth Count Verification: Count teeth on existing sprocket to confirm proper ratio

4. Mounting Pattern Inspection: Verify bolt pattern matches final drive hub configuration

5. Wear Pattern Analysis: Examine existing components for abnormal wear indicating potential misalignment issues

6.2 Procurement Specifications

When ordering the HAN GONG / DPW PARTS sprocket assembly, specify:

• Complete part number reference (124-1296, 179-2929, or E345/E349)

• Machine model and serial number

• Quantity required (left and right side)

• Desired shipping and packaging requirements

6.3 Aftermarket Advantages

The DPW PARTS offering provides several value propositions:

• Cost Optimization: Significant savings compared to OEM pricing while maintaining quality standards

• Availability: Stock availability for common Caterpillar applications

• Technical Support: Engineering consultation for application-specific requirements

• Warranty Coverage: Comprehensive warranty against manufacturing defects

7. Installation Best Practices and Maintenance Guidelines

7.1 Pre-Installation Inspection

Before installation, conduct the following checks:

• Dimensional Verification: Confirm bolt pattern alignment using template or direct measurement

• Surface Condition: Inspect mounting surfaces for burrs, damage, or contamination

• Thread Condition: Verify all threaded holes are clean and undamaged

• Tooth Inspection: Examine for shipping damage or manufacturing anomalies

7.2 Installation Procedure

Proper installation is critical for service life extension:

1. Surface Preparation: Clean final drive mounting surface thoroughly, removing all old gasket material and contamination

2. Fastener Preparation: Apply appropriate thread locker (typically medium-strength) to mounting bolts

3. Torque Sequence: Follow OEM-specified torque sequence and values, typically multi-pass tightening to achieve proper clamp load

4. Final Verification: Rotate assembly to ensure free movement and proper track chain engagement

7.3 Critical Maintenance Parameters

Matched-Wear Concept: The sprocket and track chain must wear as a matched system. Installing a new sprocket on a worn chain creates pitch mismatch, leading to accelerated wear of both components. Conversely, a worn sprocket will rapidly damage a new chain .

Wear Monitoring Protocol:

• Tooth Profile Measurement: Use Caterpillar-specified wear gauges to measure tooth thickness at defined points

• "Hooking" Inspection: Monitor for development of hooked tooth profiles indicating advanced wear

• Pitch Comparison: Compare sprocket tooth spacing with track chain bushing spacing

• Visual Inspection: Regular examination for tooth chipping, cracking, or spalling

Replacement Indicators:

• Tooth wear exceeding manufacturer specifications

• Visible cracking or plastic deformation

• Irregular wear patterns indicating misalignment

• Evidence of spalling or contact fatigue

• Simultaneous replacement with worn track chain

7.4 Failure Mode Prevention

Understanding potential failure mechanisms enables proactive maintenance:

8. Advanced Engineering Considerations

8.1 Load Distribution Analysis

In a properly engineered sprocket system, multiple teeth share the drive load simultaneously. The HAN GONG / DPW PARTS sprocket geometry optimizes this load sharing through:

• Precision tooth spacing ensuring simultaneous engagement of multiple teeth

• Optimized pressure angles minimizing peak contact stresses

• Root geometry reducing stress concentration factors

• Manufacturing tolerances maintaining consistent engagement across all teeth

8.2 Metallurgical Optimization

The selection of chromium-molybdenum or manganese-molybdenum alloy steels provides:

• Through-Hardening Capability: Consistent properties throughout cross-section

• Temper Resistance: Maintained hardness at elevated operating temperatures

• Weldability: Where repair welding may be required (though not typically recommended)

• Impact Toughness: Resistance to brittle fracture under shock loading

8.3 Surface Engineering

The induction hardening process creates a metallurgically distinct surface layer:

• Martensitic Structure: Hard, wear-resistant surface phase

• Compressive Residual Stresses: Improve fatigue resistance

• Gradual Hardness Transition: Prevents spalling at case-core interface

• Selective Application: Only wear surfaces hardened, maintaining machinability of mounting features
