Caterpillar D4H/D5M/D5N Track Idler Assembly: A Comprehensive Overview

The Track Idler Assembly, more commonly known as the Front Idler Assembly, is a fundamental and critical component within the undercarriage system of these Caterpillar track-type tractors. It serves as the forward-most guide for the track chain and plays a vital role in maintaining track tension and absorbing impacts. Its health is directly tied to the performance, efficiency, and cost of operation of the machine.

1. Machine Context: Caterpillar D4H, D5M, D5N

• D4H: A versatile and popular medium-sized bulldozer from the Caterpillar H-Series, known for its durability and widespread use in construction, site prep, and farming.

• D5M & D5N: These represent two different generations and configurations within the D5 size class. The "M" Series often featured mechanical direct drive, while the "N" Series introduced hydrostatic drive transmission, offering superior control and maneuverability. Despite powertrain differences, their undercarriage systems share similar principles and components like the idler.

2. Primary Functions of the Front Idler Assembly

1. Track Guidance: It provides a smooth, continuous surface for the track chain to reverse direction at the front of the machine, guiding it along a precise path.

2. Track Tensioning: The entire idler assembly is not fixed in place. It is designed to be moved forward or backward to adjust the amount of track sag. Proper tension is crucial:

   • Too loose: Causes whipping, derailment, and excessive wear on chain joints, rollers, and sprockets.

   • Too tight: Increases rolling resistance (fuel consumption) and accelerates wear on all undercarriage components.

3. Shock Absorption: The idler is mounted to the mainframe via a pivot shaft. This allows the entire assembly to pivot upwards when the track encounters an obstacle (e.g., a rock or stump), absorbing the impact and protecting the mainframe and final drives from excessive shock loads.

4. Weight Support: It helps support the weight of the machine and provides a continuous surface for the track chain to run on.

3. Detailed Components of the Assembly

A complete Front Idler Assembly is a system comprised of several key parts:

a) Idler Wheel (or Idler Body)

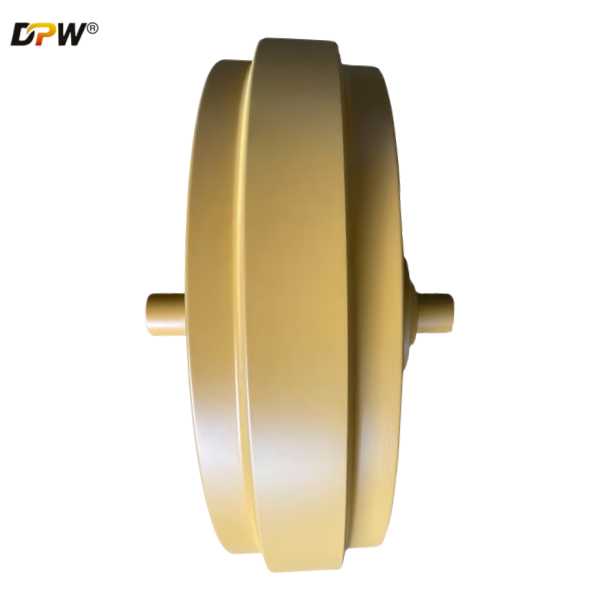

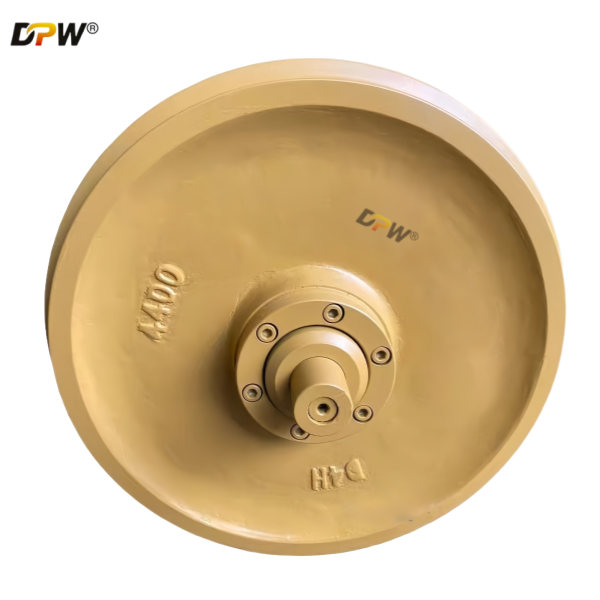

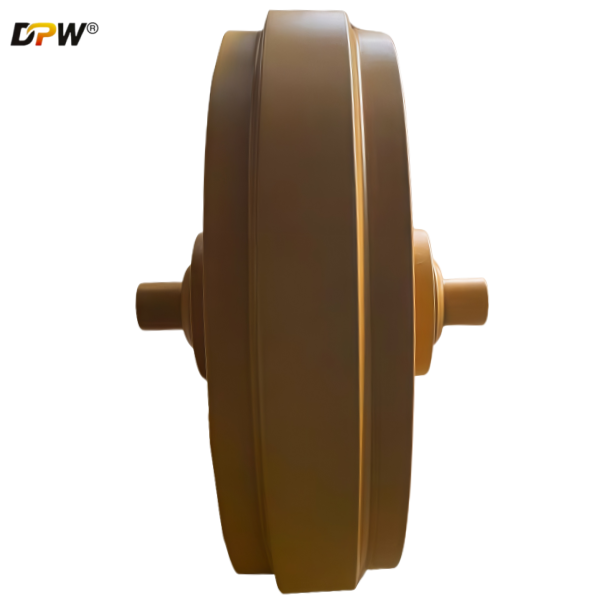

• Description: This is the main rotating drum that the track chain rides directly on. For these models, it is typically a solid, cast component made from high-strength alloy steel.

• Design: Its outer surface has two flanges that act as guides to keep the track chain centered. The running surface is hardened (often through induction hardening) to resist abrasive wear from the track chain links.

b) Idler Yoke (or Carriage)

• Description: A robust, structural steel frame that fully encapsulates and supports the idler wheel. It is the core of the assembly.

• Function:

  • It houses the bearings and seals for the idler wheel.

  • It provides the attachment points for the pivot shaft at the top and the track tensioning mechanism (a greasable cylinder or a threaded rod) at the rear.

c) Pivot Shaft and Bushing

• Description: A large, hardened steel pin that connects the top of the idler yoke to the tractor's mainframe.

• Function: This is the hinge point that allows the idler to pivot and absorb shocks. It rotates within a durable bushing (often bronze or steel) pressed into the mainframe.

d) Track Tensioning Mechanism

• Description: This is the system for adjusting the idler's position. On these D-Series models, it is most commonly a grease-activated hydraulic cylinder.

• Function: A grease gun is connected to a fitting (zerk). Pumping grease into the cylinder forces a piston to extend, pushing the entire idler assembly forward to tighten the track. A release valve is used to slowly bleed grease out to loosen the track.

e) Bearing, Seal, and Stationary Shaft System

• Description: This is the heart of the idler's rotation.

  • Stationary Shaft: A solid steel shaft that is bolted to the idler yoke. It does not rotate.

  • Bearings: Typically, a set of large tapered roller bearings are pressed into the idler wheel and fit over the stationary shaft. These bearings are designed to handle immense radial and axial loads.

  • Seals: Multi-lipped, spring-loaded labyrinth seals are critical. They create a barrier to keep lubricating grease in the bearing cavity and keep abrasive contaminants (mud, sand, water) out. This is often a Sealed and Lubricated Track (SALT) or Lubricated Track design, meaning the bearings are permanently lubricated and not serviced regularly.

f) Hardware and Guards

• Description: High-strength bolts secure the stationary shaft to the yoke. A rock guard is often bolted to the front of the yoke to help deflect debris away from the critical seal areas.

4. Common Failure Modes and Causes

• Seal Failure: The most common cause of premature idler failure. A damaged seal allows abrasive contaminants to enter, which quickly destroys the bearings and grinds away at the stationary shaft and idler bore. Signs include grease leaking from the seal area or visible contamination in the grease.

• Bearing Failure: Results from seal failure, lack of lubrication, or extreme overload. Manifests as grinding noise, difficult rotation, or a completely seized idler wheel.

• Wear: The outer flange and rim of the idler wheel wear down from constant contact with the track chain. Excessive wear can change the track's guidance and lead to derailment.

• Structural Damage: The yoke or idler wheel itself can be cracked, bent, or broken from severe impacts with obstacles.

• Tensioner Failure: The grease cylinder can develop leaks or the piston can become stuck, making it impossible to maintain proper track tension.

5. Maintenance and Replacement Considerations

• Inspection: Daily walk-around inspections are crucial. Check for:

  • Leaks: Grease around the seal area.

  • Rotation: The idler should turn freely by hand (with the track lifted). A seized idler will quickly destroy the track chain.

  • Flange Wear: Measure flange height against Caterpillar's wear limits.

  • Track Sag: Check sag regularly; incorrect sag is a primary indicator of a problem.

• Lubrication: While the main idler bearings are sealed, the pivot shaft and bushing typically have grease fittings that require regular lubrication with high-quality grease.

• Replacement: Due to the weight and precision required, replacing the idler assembly is a significant task. It is often recommended to replace undercarriage components in matched sets to prevent accelerated wear on new parts. For example, a new idler paired with a severely worn track chain will not last long.
