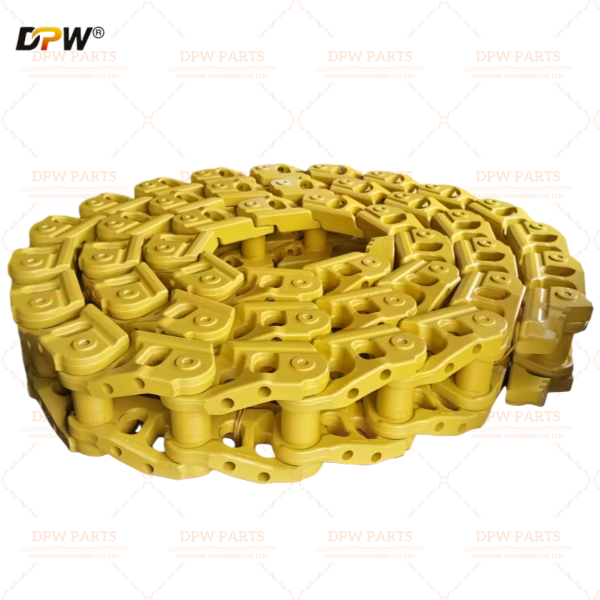

CAT 658-6449 / 3794044 D9R 43L PPR Track Link Assy and Track Group Assy --Heavy duty Bulldozer Track chassis components Source suppliers-HAN GONG / DPW PARTS
| ||||||||||||||||||||||||||
Product Specifications
Technical specifications for CAT D9R 43L PPR track link assembly and Track Group (P/N 6Y1130,6Y8193,1995525,9W2748; 3794044,3794045,5120740) and complete track group assembly. Source from specialized manufacturer HAN GONG (DPW PARTS), a producer of OEM-compatible heavy-duty bulldozer track chassis components.
Content:
Introduction to Track Link and Group Assemblies in Heavy-Duty Bulldozers
For large crawler tractors like the Caterpillar D9R, the undercarriage is not merely a mobility platform but the foundational system that transmits immense drawbar pull and withstands brutal torsional and impact loads. The Track Link Assembly is the fundamental, repeating unit of the track chain, and the Track Group Assembly is the complete, ready-to-install track belt. In high-wear PPR (Prolonged Service, Rebuilt) configurations for severe applications like mining or heavy construction, these components are engineered for maximum service life and structural integrity. Part numbers 658-6449 and 3794044 reference critical assemblies within the D9R's 43L (43-link) track system, designed for peak performance under extreme strain.
Technical Analysis: CAT D9R 43L PPR Track Link Assembly
The Track Link Assembly (658-6449 / 3794044) is a masterfully engineered mechanical joint, forming the articulated spine of the track.
Function & Mechanical Role: Each assembly connects to form a continuous, flexible chain that engages with the sprocket, rolls over idlers and rollers, and provides a mounting base for track shoes. It must withstand tensile forces from machine propulsion, shear loads from steering, and relentless pounding from ground impacts.
Component Breakdown & Material Science:
Track Link (Side Link): Forged from high-tensile, medium-carbon alloy steel (e.g., SAE 4130/4140). The forging process aligns the grain structure to follow the link's contour, providing superior toughness and fatigue resistance at the high-stress areas of the pin and bushing bores.
Track Bushing: This is the component's wear heart. Manufactured from through-hardened alloy steel (e.g., SAE 8620, carburized and hardened to 55-60 HRC) or specially formulated boron steel. Its outer surface runs against the sprocket teeth and roller flanges, while its inner bore rotates on the track pin. Precision grinding ensures perfect roundness and surface finish.
Track Pin: The connecting hinge, made from case-hardened, low-alloy steel. It features an extremely hard outer surface (58-63 HRC) to resist wear from the bushing's inner diameter, with a tough core to resist shear failure. Pins are often inductively hardened for precise depth control.
Sealing System (D7T/D8T Style or Delta Seal): A critical sub-assembly comprising:
Seal Rings: Precision-ground alloy steel rings that create a metal-to-metal primary barrier.
O-Rings/Polymetric Seals: Made from hydrogenated nitrile (HNBR) for high heat and chemical resistance, forming the secondary elastic seal.
Retainers & Washers: Secure the seal pack and manage internal lubricant pressure.
Lubrication: The pin/bushing joint is a sealed and lubricated cavity, filled with special high-temperature, extreme-pressure (EP) grease to minimize internal wear.
PPR (Prolonged Service) Design Philosophy: PPR specifications indicate components built with enhanced durability features, such as:
Increased bushing wall thickness for greater wear life.
Upgraded seal systems for longer contamination exclusion.
Optional hardened track link surfaces to resist link elongation and bore wear.
Technical Overview: CAT D9R Track Group Assembly
The Track Group Assembly refers to the complete, endless track belt ready for installation. For a D9R 43L configuration, this includes:
43 x Track Link Assemblies: Connected via pins and bushings to form a continuous loop.
86 x Track Shoes ( 1 Grousers): Bolted to each link assembly. Shoes for the D9R are massive, cast from manganese or alloy steel, and feature aggressive grouser profiles for traction. They may be provided in standard, rock, or swamp configurations.
Hardware: All necessary heat-treated alloy steel bolts, nuts, and lockplates torqued to precise OEM specifications.
This pre-assembled unit ensures perfect pitch alignment and correct tensioning from the first hour of operation, eliminating field assembly errors.
Failure Mode Analysis for Bulldozer Track Chains
Bushing Wear (External): The primary wear indicator. Measured as a reduction in bushing diameter, leading to improper sprocket engagement and eventual "throwing" of the track.
Pin and Bushing Internal Wear: Caused by seal failure allowing abrasive grit into the lubricated cavity, leading to increased chain pitch (elongation) and weakened joints.
Link Fatigue Cracking: Occurs at the pin/bushing bore due to cyclic high-stress concentrations, often preceded by bore deformation.
Track Bolt Fatigue/Failure: Results from improper torque, incorrect hardware, or extreme operational shocks.
HAN GONG / DPW PARTS as a Source Manufacturer for Heavy-Duty Undercarriage
HAN GONG, operating under the brand DPW PARTS, is a specialized manufacturer focused on undercarriage systems for large crawler tractors and excavators, producing components compatible with Caterpillar, Komatsu, and other major OEMs.
Manufacturing and Quality Assurance Protocol:
Vertical Manufacturing Control: The process encompasses in-house forging of links, machining of pins and bushings, heat treatment, seal assembly, and final track group assembly.
Material Verification: Rigorous incoming material certification using spectrometry to verify alloy composition.
Precision Forging & Machining: Closed-die forging presses create near-net-shape links. CNC machining centers and specialized grinders ensure all bore diameters, seal grooves, and pin/bushing profiles meet exacting tolerances.
Advanced Heat Treatment: Utilizes computer-controlled atmosphere carburizing furnaces for pins and bushings, and induction hardening for specific wear surfaces, ensuring optimal case depth and core properties.
Seal System Assembly: Conducted in a clean-room environment to prevent contamination. Each seal pack is assembled with precision tooling.
Final Assembly & Testing: Track groups are assembled on heavy-duty fixtures with calibrated torque tools. Finished chains undergo pitch measurement and visual inspection to guarantee consistency and quality.
Value Proposition of HAN GONG (DPW PARTS) Track Assemblies:
OEM Specification Compliance: Designed to match Caterpillar D9R 43L PPR dimensions, hardness profiles, and performance specifications for direct interchangeability.
Durability Focus: Emphasis on robust seal technology and material selection aimed at extending wear life in severe-service (SS) and mining applications.
Complete Solution Offering: Ability to supply individual link assemblies (658-6449 / 3794044) or complete 43L track group assemblies, along with matching track shoes and hardware kits.
Cost Efficiency for Fleets: Provides a reliable alternative that helps manage the substantial maintenance costs of large dozer undercarriages without compromising on machine availability or performance.
Sourcing and Application Guidance
Precise Identification: Confirm the exact machine model (D9R), serial number, and undercarriage configuration (43L, PPR) before ordering. The part numbers 658-6449 and 3794044 must be verified against your specific requirements.
Consider Application Severity: For extreme conditions, specify the PPR/heavy-duty configuration to maximize component life.
Systematic Replacement Best Practice: Track chains are best replaced as a complete group assembly. Replacing a single link in an otherwise worn chain is not recommended. Simultaneously inspect and plan for sprocket and roller wear to prevent accelerated degradation of the new chain.
Professional Installation: Ensure installation follows OEM procedures for track tensioning (using sag measurement) and shoe bolt torque sequences.
Conclusion
The CAT D9R 43L PPR Track Link Assembly (658-6449 / 3794044) and Track Group Assembly are engineered systems where precision, material strength, and sealing technology converge to meet the brutal demands of heavy earthmoving. HAN GONG (DPW PARTS) positions itself as a capable manufacturing source for these critical components, employing a comprehensive production and quality control regimen. For equipment managers and mining operations, sourcing from such a specialized supplier represents a strategic approach to maintaining the productivity and reliability of flagship machines like the Caterpillar D9R, balancing performance, durability, and total operational cost.
