Product Specifications

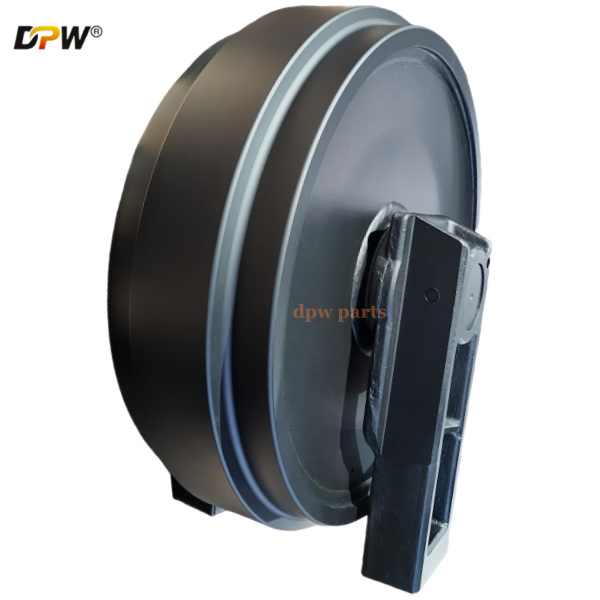

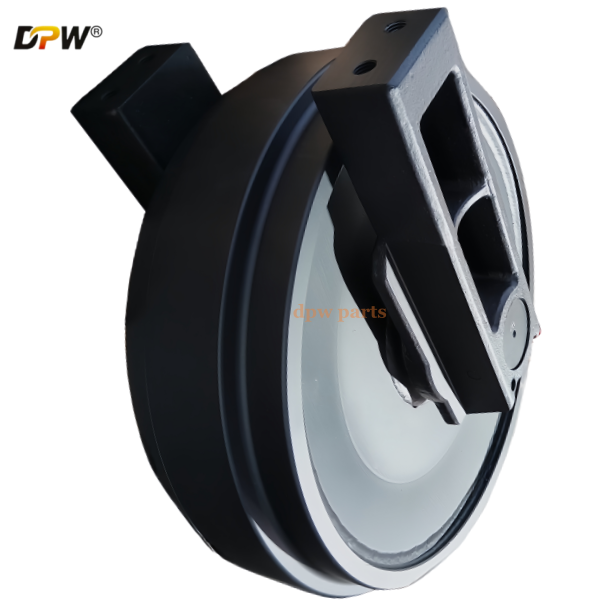

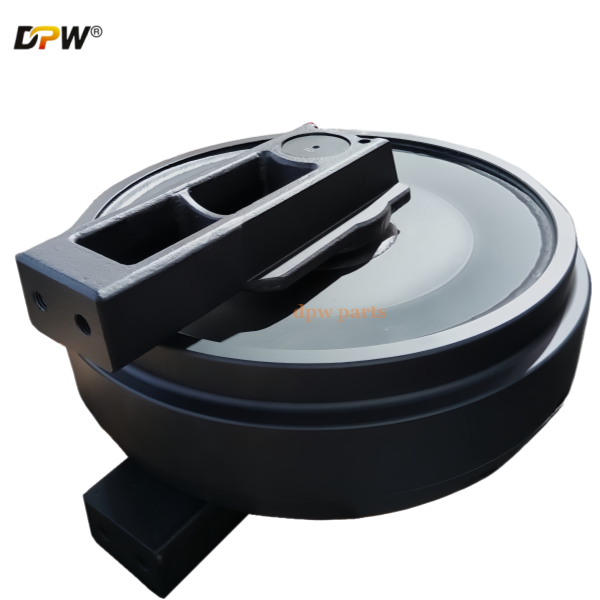

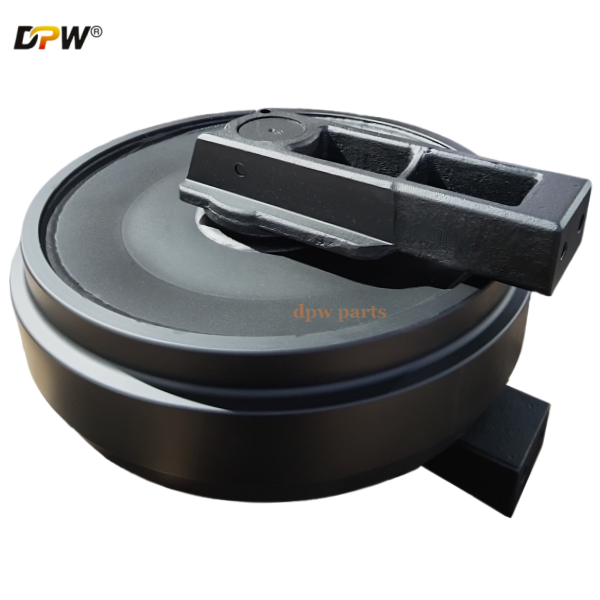

Technical Overview: ZOOMLION ZR280 Idler Wheel Assembly

The Idler Wheel Assembly for the ZOOMLION ZR280 Rotary Drilling Rig is a critical component of the crawler undercarriage system. Functioning as the forward guide and support for the track chain, it is essential for maintaining proper track alignment, tension, and ground contact pressure. Unlike the sprocket (which drives) or the carrier roller (which supports the upper track), the idler's primary roles are guidance and track tensioning.

This component is designed to withstand significant axial and radial loads during machine travel, especially when negotiating turns and traversing uneven terrain on a job site.

1. Functional Definition and Operational Role

The Idler Wheel Assembly serves three primary, interconnected functions:

• Track Guidance: It guides the track chain in a smooth, continuous path from the front of the undercarriage back to the sprocket, ensuring precise alignment and preventing derailment.

• Track Tensioning: The entire idler assembly is mounted on a movable bracket connected to the track tensioning cylinder (grease or hydraulic). Adjusting this cylinder moves the idler forward or backward, thereby increasing or decreasing track tension. Correct tension is vital for optimal performance and undercarriage component life.

• Load Distribution & Impact Absorption: The idler helps support the machine's weight and absorbs the initial impact when the track makes contact with the ground, particularly when overcoming obstacles.

2. Detailed Component Breakdown

A typical Idler Wheel Assembly consists of several key integrated parts:

• A. Idler Wheel (The Front Idler):

  • Material: Fabricated from high-strength, low-alloy (HSLA) steel, typically through a forging or casting process to ensure structural integrity.

  • Flanges: The wheel features robust, precision-machined flanges on both sides. These flanges are critical for containing the track chain and preventing lateral derailment.

  • Running Surface: The outer diameter is machined to a specific profile to ensure smooth contact with the track chain bushings (the "pins and bushings"). It is often hardened through heat treatment to resist wear from the hard-faced bushings.

• B. Hub & Bearing System:

  • Sealed Bearing Cartridge: The idler rotates on a large, heavy-duty, pre-lubricated, and sealed roller bearing assembly. This design is crucial for excluding contaminants (mud, water, abrasive dust) and retaining grease, ensuring long service life with minimal maintenance.

  • Hub & Spindle: The internal hub houses the bearing and mounts onto a fixed spindle that is bolted to the idler bracket. Robust lip seals and wear rings are used on both sides of the hub to provide multiple barriers against contamination.

• C. Idler Bracket (Mounting Frame):

  • This is the structural frame that connects the idler wheel to the main undercarriage frame and the track tensioning mechanism. It is designed to withstand high shock loads.

3. Key Technical Specifications for ZOOMLION ZR280

4. Common Failure Modes and Root Cause Analysis

• A. Flange Wear:

  • Symptom: The guiding flanges become thin, sharp, or unevenly worn.

  • Root Cause: Constant contact with the track chain link, exacerbated by misaligned tracks or operating on severe side slopes.

• B. Bearing Failure:

  • Symptom: Difficult rotation, grinding noises, excessive play, or seized idler wheel.

  • Root Cause: Seal failure allowing contaminants to enter, leading to abrasive wear and eventual bearing collapse. This is a primary reason for assembly replacement.

• C. Running Surface Wear:

  • Symptom: The smooth outer diameter becomes concave, grooved, or uneven.

  • Root Cause: Abrasive wear from the track chain bushings. Normal wear is expected, but accelerated wear occurs with improper track tension.

• D. Cracking or Structural Damage:

  • Symptom: Visible cracks in the idler rim or bracket.

  • Root Cause: High-impact loads from striking solid obstacles like rocks or concrete.

5. Sourcing, Replacement, and Maintenance Protocol

• OEM (Genuine ZOOMLION):

  • Advantage: Guaranteed dimensional accuracy, material quality, and perfect compatibility. Includes a manufacturer's warranty.

  • Disadvantage: Higher initial cost.

• Quality Aftermarket Equivalents:

  • Advantage: Cost-effective solution. Reputable manufacturers produce reliable replacements that meet OEM specifications.

  • Disadvantage: Requires verification of quality, especially the integrity of the sealing system.

Critical Replacement and Maintenance Guidelines:

1. Track Tension Check: Always maintain the correct track tension as specified in the ZR280 operator's manual. Over-tensioning places excessive load on the idler bearing and increases wear. Under-tensioning causes whipping and can lead to derailment and damage to the flanges.

2. Undercarriage Inspection: When replacing an idler, inspect the entire track chain, sprocket, and rollers for coordinated wear. A severely worn track chain will not run true and will cause rapid wear on a new idler.

3. Seal Integrity: During installation, protect the idler's seal surfaces from damage. Never use high-pressure washers directly on the seal area.

4. Proper Handling: Due to the significant weight of the assembly, use appropriate lifting equipment and follow all safety protocols during removal and installation.
