XCMG-XE490/XE500DK Final Drive Sprocket rim Assembly/414101803/OEM quality undercarriage components source manufacture-DPW PARTS

Product Specifications

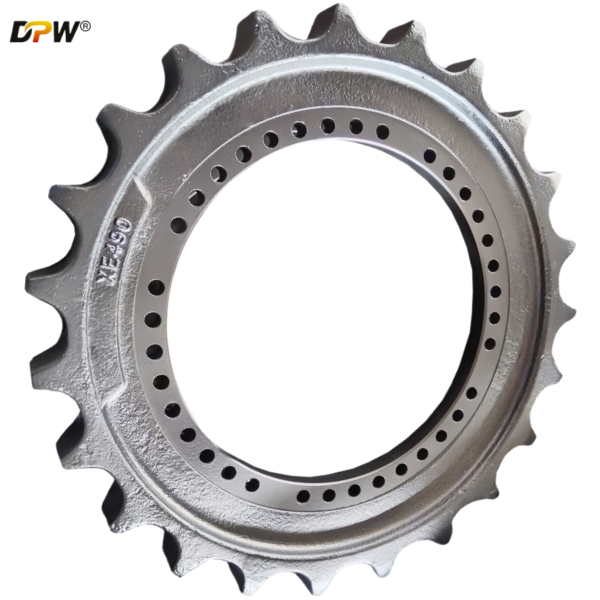

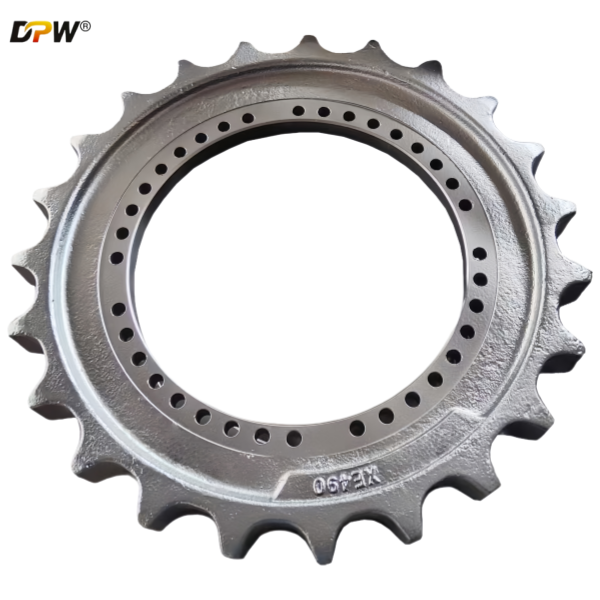

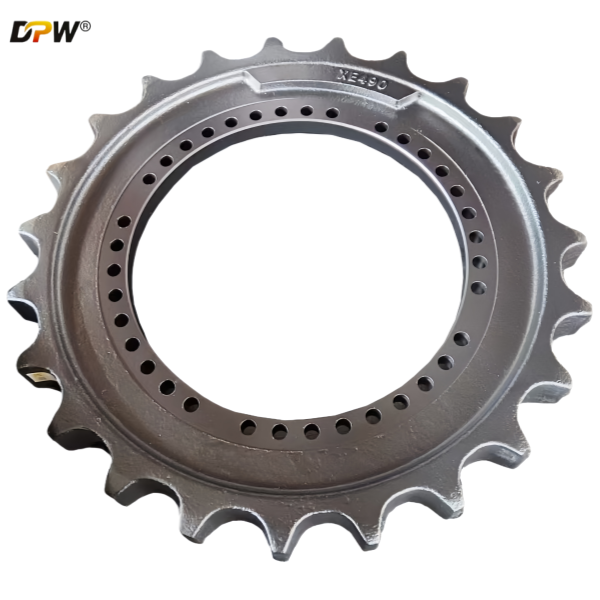

XCMG-XE490 P/N:414101803  Final Drive Sprocket Rim Assembly is a critical component in the undercarriage system of the XCMG XE490 excavator, designed to transmit power from the final drive to the track chain, enabling machine movement. Here's a detailed overview image:

1. Product Overview & Specifications

• Function: The sprocket rim assembly engages with the track chain, converting rotational force from the final drive into linear movement for the excavator. It withstands high torque, impact loads, and abrasive conditions in construction, mining, and heavy-duty applications .

• Compatibility: Specifically designed for XCMG XE490 excavators. Replacement parts should match OEM specifications to ensure compatibility and performance .

• Key Specifications:

  • Material: Typically fabricated from high-strength alloy steel (e.g., forged or heat-treated steel) for durability and wear resistance.

  • Heat Treatment: Surface hardening through processes like carburizing (e.g., carburized layer thickness of 1.4–2.2 mm) to enhance surface hardness (e.g., 55-60 HRC) while maintaining a tough core .

  • Design: Integrates with the final drive assembly, featuring precision-machined teeth to minimize wear and ensure smooth engagement with the track chain.

2. Manufacturing Process & Quality Assurance

• Production Techniques: Includes forging, precision machining (e.g., gear hobbing or shaping), heat treatment (carburizing, quenching, tempering), and quality inspections .

• Quality Standards: Manufactured to meet ISO 9001, CE, and OEM-equivalent standards. Critical parameters like dimensional accuracy, hardness, and metallurgical properties are rigorously tested .

• Warranty: Typically offered with a 1-year warranty, covering defects in materials and workmanship. Support includes video technical assistance and documentation .

3. Applications & Performance

• Use Cases: Suitable for heavy-duty excavation, mining, and construction projects where reliability under high-stress conditions is essential.

• Durability: Engineered to resist abrasion, impact, and fatigue (extending service life) even in harsh environments .

4. Packaging & Logistics

• Packaging: Protected with plastic film and shipped in plywood or carton boxes to prevent damage during transit .

• Shipping: Available via sea, air, or courier services globally. Delivery times range from 4–7 days for in-stock items to 10–35 days for bulk orders .

5. Why Choose This Assembly?

• OEM Compatibility: Designed to match XCMG XE490 specifications, ensuring seamless integration and optimal performance.

• Performance Reliability: High-strength materials and advanced heat treatment processes enhance durability and reduce downtime .

• Supplier Support: Manufacturers like EVER-POWER GROUP provide technical documentation, custom packaging, and after-sales support .

6. Additional Considerations

• Maintenance: Regular inspection for wear (e.g., tooth deformation) and proper lubrication are essential for longevity.

• Replacement Signs: Excessive tooth wear, cracks, or misalignment with the track chain indicate the need for replacement.

For further technical details, specifications, or purchasing information, refer to manufacturer resources or suppliers like EVER-POWER GROUP
