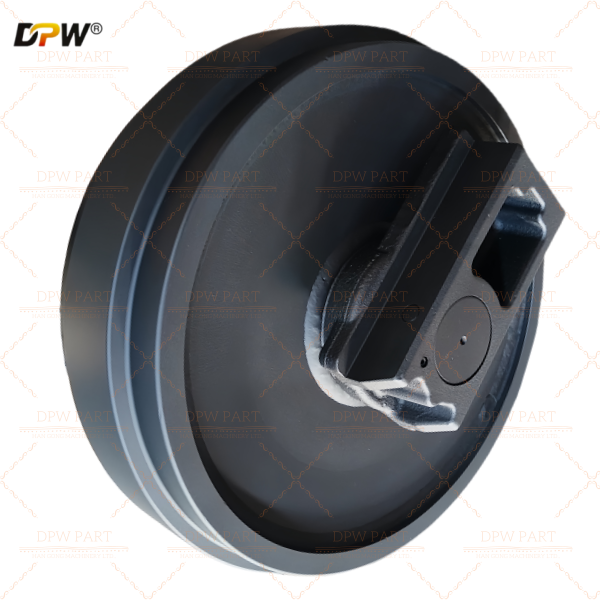

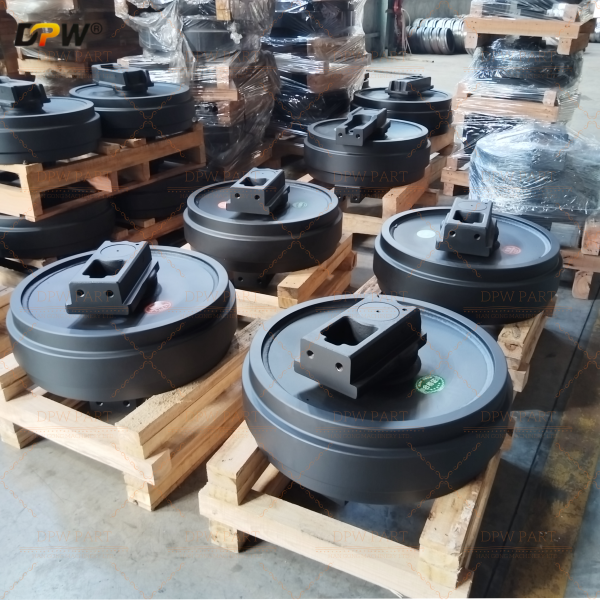

XCMG XE690DK Forged Track Idler Assembly (800370494): Technical Engineering for Heavy-Duty Excavation
Executive Technical Summary
This document provides a comprehensive engineering specification for the Forged Track Idler Assembly (Part Number: 800370494) designed for the XCMG XE690DK heavy-duty crawler excavator. Manufactured by industry-leading undercarriage specialists, this component exemplifies the application of advanced precision forging, metallurgical science, and integrated quality control to produce a critical undercarriage part that ensures maximum machine stability, durability, and uptime in the most demanding operational environments, including mining, large-scale earthmoving, and heavy construction.
1. Product Identification & Functional Analysis
1.1 Critical Role in Undercarriage System
The track idler, or front idler, is a fundamental load-bearing and guidance component within the crawler undercarriage system. Its performance is essential for:
Track Chain Guidance & Alignment: Precisely directs the travel path of the track chain, ensuring stable machine travel and preventing derailment.
Dynamic Tension Management: As the front pivot of the track tensioning system, it maintains optimal track sag, which is critical for reducing internal wear, improving travel efficiency, and extending overall undercarriage life.
Load Distribution & Impact Absorption: Bears a significant portion of the machine's dynamic weight and serves as the first point of impact absorption from ground obstacles, protecting the final drive and mainframe from shock loads.
1.2 Target Machine & Compatibility
Primary Application: XCMG XE690DK Heavy-Duty Crawler Excavator.
OEM Part Number: 800370494.
Design Compatibility: Engineered as a direct, dimensionally identical replacement for the original XCMG component, ensuring perfect fitment with the XE690DK track frame and track chain link assembly.
2. Engineering Philosophy: Superiority of the Forging Process
For the severe duty cycles of a 60-ton+ class excavator like the XE690DK, the idler must withstand extreme bending stresses, abrasive wear, and repetitive impacts. Precision hot die forging is the mandated manufacturing process to meet these requirements.
2.1 Advanced Forging & Manufacturing Protocol
Material Selection: High-carbon, chromium-alloyed steel (e.g., 50Mn, 55SiMn) is selected for its superior hardenability, yield strength, and fatigue resistance.
Hot Die Forging: Steel billets are heated to a precise forging temperature and formed under tremendous pressure within CNC-machined dies. This process realigns the steel's grain flow to follow the idler's complex contours, creating a continuous fibrous structure that provides inherent strength and eliminates the isotropic weaknesses found in castings.
Precision Machining: The forged blank undergoes rigorous CNC machining to achieve critical tolerances on the flange profiles, hub bore, and sealing surfaces. This ensures perfect concentricity and alignment.
Controlled Heat Treatment: A quench-and-temper process establishes a graded hardness profile: a deep, wear-resistant case hardness (55-60 HRC) on the flange and rim, supported by a tough, ductile core (35-42 HRC) to absorb shock loads without cracking.
Integrated Sealing & Assembly: The forged wheel is assembled with a heavy-duty, multi-component sealing system (typically combining labyrinth and lip seals) and high-capacity tapered roller bearings. The assembly is pre-lubricated and tested for rotation torque and seal integrity.
2.2 Key Performance Advantages vs. Cast Idlers
Unmatched Structural Integrity: The forged grain structure provides approximately 30% higher fatigue strength and impact toughness, drastically reducing the risk of catastrophic failure from cracks or breaks.
Superior Wear Life: The denser, non-porous forged material offers exceptional resistance to flange wear and rim abrasion, directly extending undercarriage overhaul intervals.
Enhanced Load Capacity: Capable of handling the significant dynamic loads and ground impacts characteristic of the XE690DK's operating weight class without deformation.
Predictable Service Life: Offers consistent, reliable performance with uniform wear patterns, enabling accurate maintenance forecasting.
3. Technical Specifications & Design Features
3.1 Material & Metallurgical Properties
Base Material: Alloy forging steel, spectrographically verified.
Mechanical Properties: Yield strength > 850 MPa; Impact toughness (Charpy V-notch) > 25 J at 20°C.
Hardness Profile: Case-hardened wearing surfaces (Flange side & rim) to 55-60 HRC; Core hardness maintained at 35-42 HRC.
3.2 Sealing Technology
Advanced Multi-Barrier Seal: Incorporates a combination of a wear-resistant labyrinth dust ring and a spring-loaded radial lip seal. This dual-barrier design effectively excludes abrasive contaminants (fine sand, clay, dust) while retaining high-temperature grease within the bearing cavity.
Re-lubrication Design: Standard grease fitting allows for periodic purging of contaminants and replenishment of lubricant, significantly extending bearing and seal service life.
3.3 Precision Engineering
Flange Geometry: Precision-machined to the OEM-specified contour and width to ensure smooth engagement with the track link and prevent unnecessary stress on track bushings and links.
Dimensional Conformance: All critical mounting dimensions (bore diameter, pilot diameters, bolt hole P.C.D.) are held to IT7/IT8 grade tolerances for guaranteed interchangeability and fit.
4. Manufacturer Profile: Heavy-Duty Undercarriage Specialists
As dedicated heavy-duty crawler excavator undercarriage parts manufacturers and suppliers, our production ecosystem is built for reliability:
Vertical Manufacturing Integration: Full in-house control over forging, machining, heat treatment, and assembly ensures complete quality traceability.
State-of-the-Art Forging Facility: Equipped with high-tonnage forging presses and automated heat treatment lines for consistent production quality.
Comprehensive Quality Assurance: Adherence to ISO 9001 standards. Inspection regime includes ultrasonic testing of forgings, coordinate measuring machine (CMM) verification, and full assembly rotation/leak testing.
Application Engineering Expertise: Technical support team provides guidance on undercarriage maintenance and wear management for heavy-duty applications.
Global Supply Chain Network: Capable of supporting global OEMs, dealers, and end-users with reliable logistics and inventory planning.
5. Operational Value & Total Cost of Ownership (TCO)
For XCMG XE690DK operators, selecting a forged idler assembly is a strategic investment in machine productivity:
Maximized Machine Availability: Extended service life reduces downtime for undercarriage component replacement, increasing machine utilization.
Protection of Adjacent Components: A durable, precisely aligned idler promotes even track chain wear, protecting more expensive components like the track links, rollers, and sprockets.
Lower Lifetime Cost: While the initial investment may be higher than substandard alternatives, the significantly longer operational life and reduced collateral damage result in a demonstrably lower cost per operating hour.
Performance Guarantee: Products are backed by performance warranties and the technical support of a specialist manufacturer.
