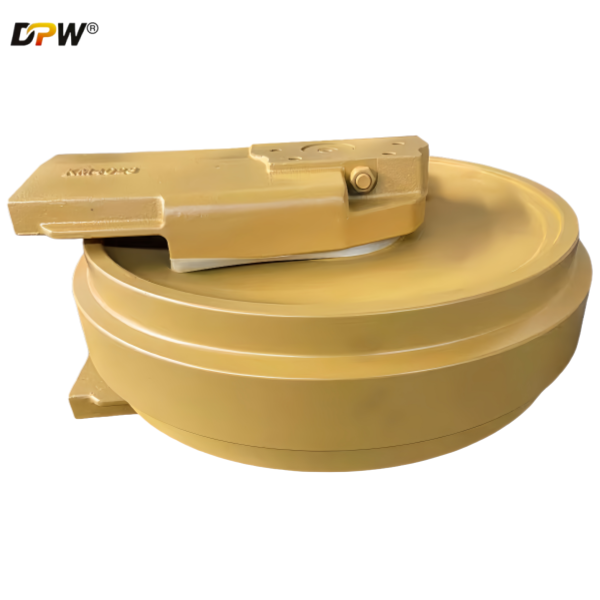

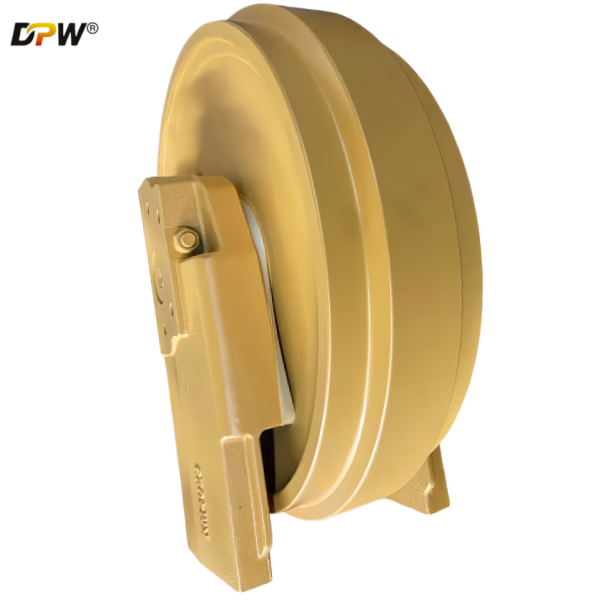

Undercarriage of Komatsu KM4023 D61EX-12 D61EX-15 D61PX-12 D61PX-15 Track Front Idler Wheel Group

Product Specifications

Komatsu D61EX Track Front Idler Wheel Group: A Comprehensive Overview

The Track Front Idler Wheel Group is a fundamental and critical component within the undercarriage system of the Komatsu D61EX crawler dozer. It serves as the forward-most guide for the track chain and plays an indispensable role in maintaining track tension, absorbing shocks, and ensuring stable machine operation. Its condition is a primary indicator of overall undercarriage health.

1. Machine Context: Komatsu D61EX Dozer

• Model: The Komatsu D61EX is a mid-sized, high-powered bulldozer designed for a wide range of applications, including grading, site development, finishing, and heavy dozing. It is known for its excellent balance, agility, and advanced controls (like the "EX" designation often indicating a newer generation with enhanced features).

• Importance of Undercarriage: The undercarriage is a major cost center for any crawler machine. The idler, as a key component, directly influences the wear rate of the entire track system—the chain, rollers, and sprockets. Proper maintenance of the idler is crucial for controlling operating costs.

2. Primary Functions of the Front Idler Wheel Group

1. Track Guidance and Direction Change: It provides the smooth, curved surface at the front of the track frame around which the track chain reverses direction, guiding it along a precise path back to the sprocket.

2. Track Tensioning: The entire idler assembly is not fixed. It is designed to be moved forward or backward to adjust the amount of track sag. This is its most critical function:

   • Proper Tension: Ensures optimal power transfer, stability, and even wear.

   • Too Loose: Leads to track whipping, derailment, and accelerated wear on rail links and rollers.

   • Too Tight: Increases rolling resistance (reducing fuel efficiency) and causes rapid, accelerated wear on all undercarriage components, including the idler itself, rollers, and the sprocket.

3. Shock Absorption: The idler is mounted to the track frame via a pivot shaft. This allows the entire assembly to pivot upward when the track encounters an obstacle (e.g., a rock), absorbing the impact energy and protecting the mainframe, final drives, and the operator from excessive shock.

4. Weight Distribution: It helps support the machine's weight and provides a continuous surface for the track chain to run on.

3. Detailed Components of the "Group" or "Assembly"

The term "Group" or "Assembly" implies it is a complete unit ready for installation. For the Komatsu D61EX, this typically includes:

a) Idler Wheel (the core component)

• Description: This is the main rotating drum that the track chain rides directly on. It is a heavy-duty, sealed and lubricated component.

• Construction: The outer shell is made from high-carbon, high-strength steel. The rolling surface that contacts the track chain links is induction hardened to an extreme surface hardness to resist grinding abrasion, while the core remains tough to absorb impacts.

• Flanges: The wheel has two integral flanges (one on each side) that act as guides to keep the track chain centered and prevent derailment.

b) Idler Yoke (or Carriage)

• Description: A robust, structural steel frame that fully supports the idler wheel. It is the backbone of the assembly.

• Function:

  • It houses the internal bearings and seals.

  • It provides the mounting points for the pivot shaft at the top and the track tensioning cylinder at the rear.

c) Internal Bearing and Seal System

• Description: This is the heart of the idler's durability.

  • Stationary Shaft: A solid steel shaft that is bolted to the idler yoke. It does not rotate.

  • Bearings: Typically, large tapered roller bearings are used. They are precision-engineered to handle the immense radial loads from the machine's weight and the axial loads from turning and tracking forces.

  • Seals: Komatsu employs advanced multi-lip labyrinth seals with spring tensioners. These are critical for creating a permanent barrier, keeping lubricating grease in and contaminants (abrasive mud, sand, slurry) out. This is a "lubricated-for-life" design, meaning the assembly is pre-packed with special grease at the factory and does not require routine greasing.

d) Track Tensioning Mechanism (Grease Cylinder)

• Description: A hydraulic cylinder located at the rear of the idler yoke, designed to be actuated by a grease gun.

• Function: To adjust track tension, a grease gun is connected to a fitting (zerk). Pumping grease in extends the cylinder, pushing the entire idler forward to tighten the track. A release valve is slowly opened to allow grease to escape, permitting the track force to push the idler back and loosen the track.

e) Pivot Shaft and Bushing

• Description: A large, hardened steel pin that connects the top of the idler yoke to the dozer's track frame.

• Function: This pivot point allows the idler to articulate and absorb shocks. It rotates within a hardened bushing.

f) Bolts, Guards, and Hardware

• Description: The assembly includes all necessary high-strength bolts to secure the stationary shaft to the yoke and the pivot shaft to the frame. A debris guard is often part of the assembly to help protect the critical seal areas from direct impacts.

4. Common Failure Modes and Causes

• Seal Failure: The primary cause of premature idler failure. A damaged seal allows abrasive contaminants to enter the bearing chamber, acting as a grinding paste that rapidly destroys the bearings and grinds away the stationary shaft and wheel bore. Signs include grease leaking from the seal or visible contamination.

• Bearing Failure: A direct result of seal failure or extreme overload. Leads to noise, difficult rotation, and eventually a seized idler wheel. A seized idler will act as a brake, causing rapid, catastrophic wear to the track chain links.

• Flange and Rim Wear: The guiding flanges and the outer rolling surface wear down from constant contact with the track chain. Excessive wear can change the track's guidance and lead to derailment.

• Structural Damage: The yoke or the idler wheel itself can be cracked, bent, or broken from severe impacts with obstacles like large rocks.

• Tensioner Failure: The grease cylinder can develop leaks, or the piston can become stuck, making it impossible to maintain proper track tension.

5. Maintenance and Replacement Considerations

• Inspection: Conduct daily walk-around inspections. Check for:

  • Leaks: Grease around the seal area is a major red flag.

  • Rotation: With the track lifted, the idler should turn freely by hand. Any stiffness or grinding feel indicates internal problems.

  • Flange Wear: Measure flange height against Komatsu's wear limits.

  • Track Sag: Regularly measure and adjust track sag according to the operator's manual. Incorrect sag is a key indicator of a problem.

• Lubrication: While the idler wheel bearings are sealed, the pivot shaft and bushing typically have grease fittings that require regular lubrication with high-quality, multi-purpose grease.

• Replacement: Replacing the idler is a significant task. It is highly recommended to replace undercarriage components in matched sets. Installing a new idler on a machine with a severely worn track chain will cause the new idler to wear out extremely quickly due to the mismatched fit.
