JCB JS200 JRA0214YA KRA1198 152574A1 Forged idler Group/forging idler assembly/China idlers factory/Fabricateed idlers source manufacture
| ||||||||||||||||||||||||||
Product Specifications

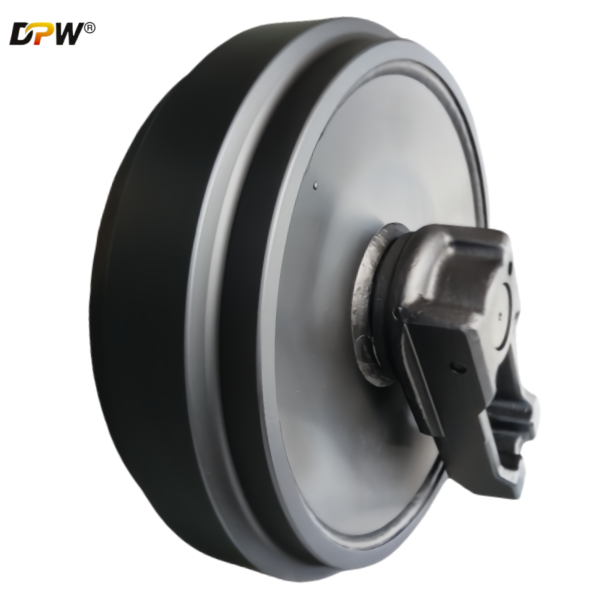

JS200 Forged Idler – Heavy-Duty Track Roller for 20-Ton Class Excavators
JS200 forging idlers are precision-forged undercarriage components designed for 20-30 ton excavators operating in demanding conditions like quarrying, demolition, and hard rock excavation. Built with hot-forged alloy steel, these idlers provide superior durability compared to standard cast rollers.
Excavators JCB JS200 idler GP(P/N|:JRA0214YA;KRA1198;152574A1)forging idler assembly/china idlers factory/idlers manufactur.
Key Features & Benefits
✔ Forged Steel Construction – Higher density and impact resistance than cast idlers
✔ Deep Hardened Surface (HRC 50-55) – Resists abrasion in rocky/gravel environments
✔ Double-Sealed Bearings – Prevents dirt/water ingress, extending service life
✔ OEM Interchangeable – Direct replacement for JS200-compatible excavators
Technical Specifications
| Parameter | Specification |
|---|---|
| Load Capacity | 9,500 kg dynamic load |
| Bearing Type | Heavy-duty tapered roller bearings |
| Flange Design | Double-flange for track guidance |
| Weight | 98 kg (standard) |
| Hardness Depth | 3-5mm induction-hardened |
Compatible Machines
JCB JS200/JS220/160/180/190
CX9030
Why Choose Forged Idlers?
✅ 30-50% Longer Lifespan – More resistant to wear and cracking
✅ Better Shock Absorption – Handles impact loads from uneven terrain
✅ Reduced Downtime – Fewer replacements compared to cast idlers
When to Replace?
⚠ Flange wear exceeds 30% of original thickness
⚠ Visible cracks or spalling on the rolling surface
⚠ Bearing play >1.5mm or rough rotation
⚠ Grease leakage from damaged seals
Maintenance Recommendations
Clean regularly – Remove packed mud and debris
Check every 500 hours – Inspect for abnormal wear
Replace in pairs – Ensures balanced track tension
Available Upgrades
Tungsten Carbide Coating – For extreme abrasion resistance
Extended Warranty Options – Up to 12 months coverage
Need a customized solution? Provide:
Machine model & year
Current idler condition (wear measurements if available)
Primary work environment (e.g., rock, demolition, mining)
Also available as part of a complete undercarriage kit (sprockets + track chains + rollers).
For mining or severe-duty applications, ask about our JS200-XD (Extra Duty) forged idlers with reinforced flanges.
