HYUNDAI R850LC-9 Track Roller Group/Heavy-duty construction machinery parts source factory supply directly.

Product Specifications

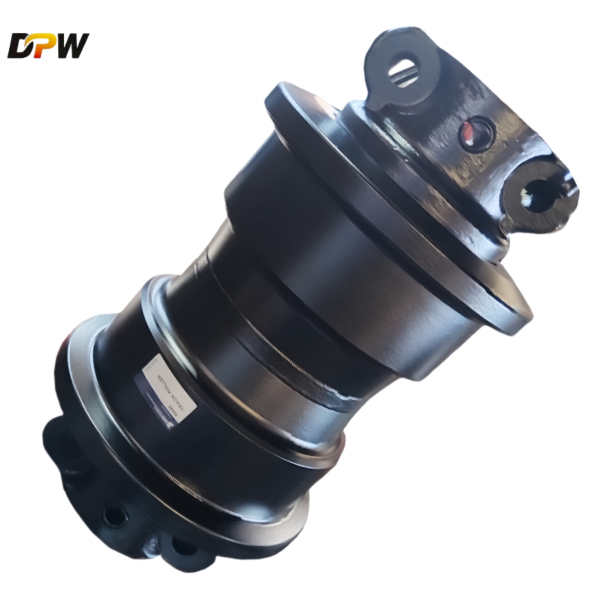

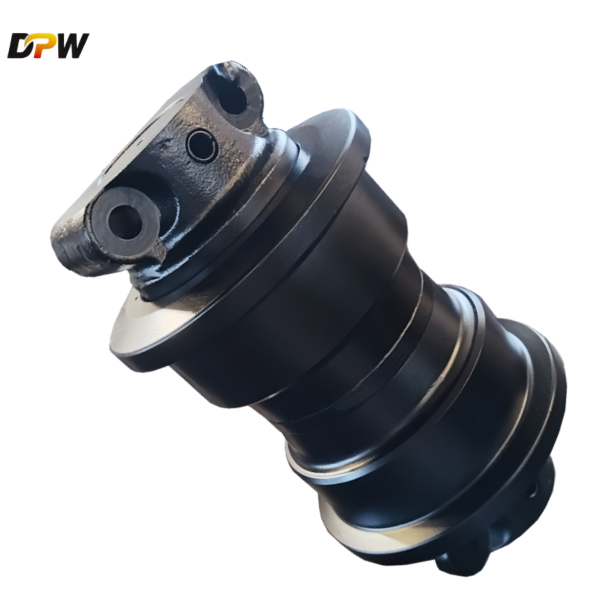

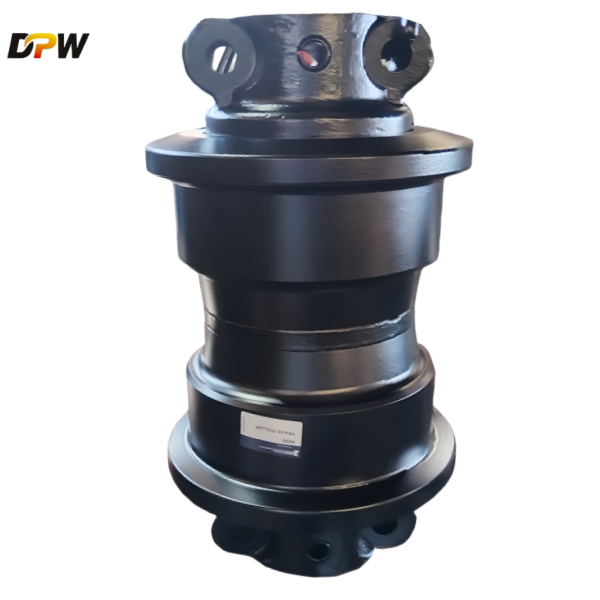

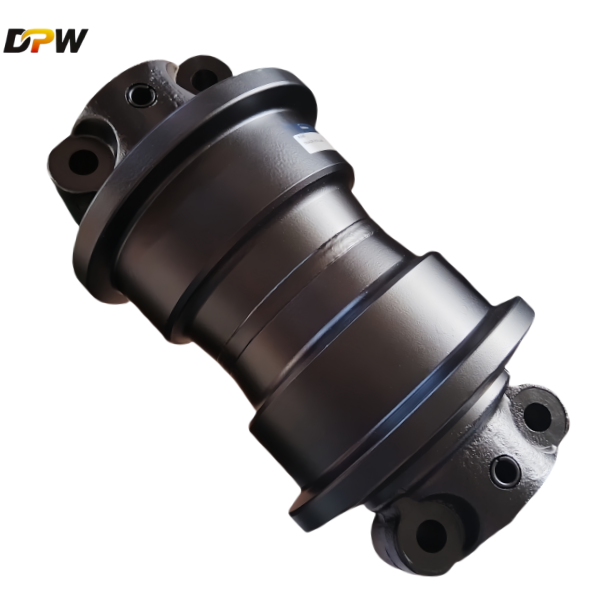

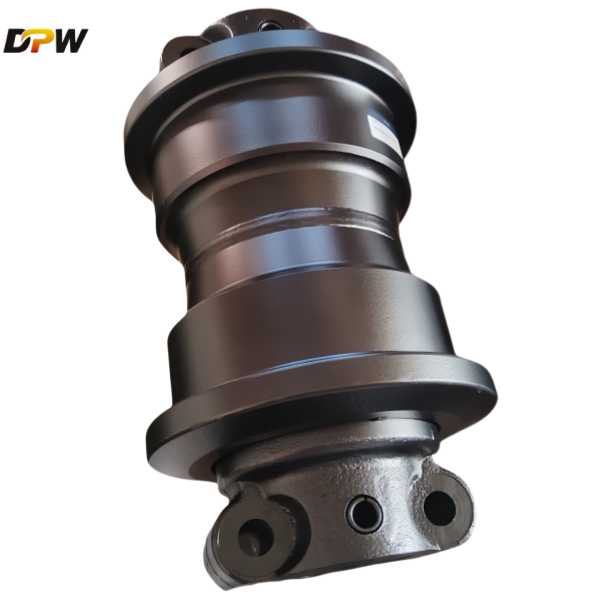

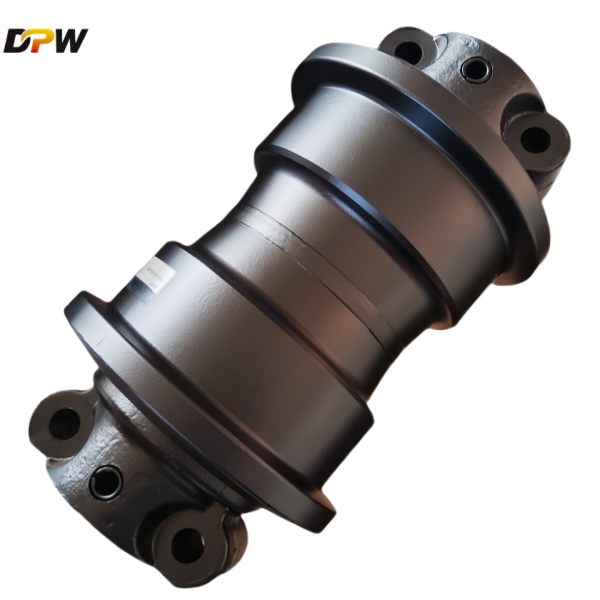

The HYUNDAI/31ND-40071/R850LC-9 Track Roller Group is a critical undercarriage component specifically engineered for HYUNDAI R800/R850/R950 series excavators. This complete assembly ensures smooth track movement while supporting the machine's weight and maintaining proper track chain alignment during operation.

Key Specifications:

• Compatible Model: HYUNDAI R800/R850LC-9 excavators

• Material: High-carbon alloy steel construction

• Bearing Type: Sealed roller bearings (lubricated-for-life design)

• Surface Treatment: Induction hardened outer surface (HRC 55-60)

• Seal Type: Multi-labyrinth seal with premium rubber components

• Weight: Approximately 85-95 kg (varies by configuration)

• Dimensions: Standard OEM specifications (exact measurements available upon request)

Technical Features:

1. Durable Construction:

   • Forged steel housing with precision machining

   • Double-flange design for enhanced stability

   • Heat-treated components for maximum wear resistance

2. Advanced Bearing System:

   • Large-diameter tapered roller bearings

   • Pre-lubricated and pre-adjusted at factory

   • Corrosion-resistant bearing surfaces

3. Enhanced Sealing Technology:

   • Triple-lip seal configuration

   • Dust and water exclusion system

   • Grease purge channel for contaminant removal

4. Performance Characteristics:

   • Dynamic load capacity: 25,000-30,000 lbs

   • Operating temperature range: -30°C to +120°C

   • Designed for 5,000+ service hours under normal conditions

Installation & Maintenance:

• Bolt-on replacement design for easy installation

• Requires standard undercarriage tools for replacement

• Recommended inspection interval: Every 250 operating hours

• Lubrication interval: Every 500 hours (if equipped with grease fittings)

Package Includes:

• Complete track roller assembly

• Mounting hardware (bolts, nuts, washers as required)

• Installation instructions

• Warranty documentation

Available Options:

• OEM genuine part ：31ND-40071

• Premium aftermarket equivalent

• Rebuilt/exchange units

• Custom configurations available for special applications

Applications:

• Earthmoving operations

• Construction sites

• Mining applications

• Road building projects

• General excavation work

Warranty:

• Standard 12-month warranty (OEM)

• 6-month warranty (aftermarket premium)

• 3-month warranty (rebuilt units)

Compliance:

• Manufactured to ISO 9001 quality standards

• Meets HYUNDAI OEM specifications

• ROHS compliant materials

Ordering Information:

• Minimum order quantity: 1 unit

• Lead time: 3-5 days (in stock), 2-3 weeks (special orders)

• Packaging: Wooden crate or heavy-duty cardboard

• Shipping: Worldwide delivery available
