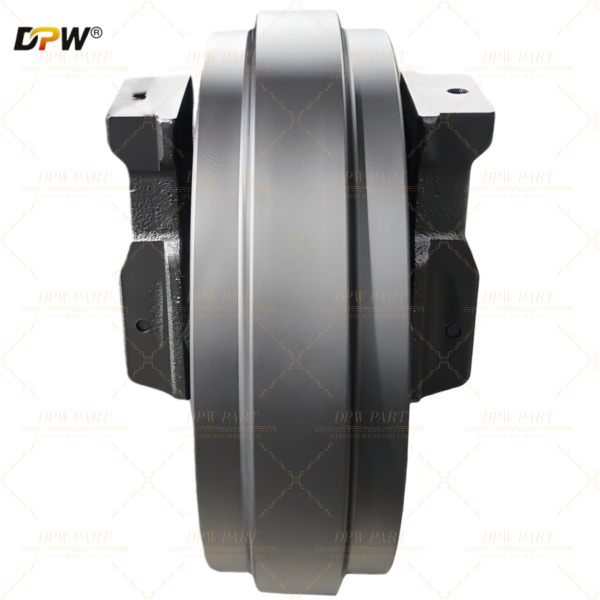

Fabricated Front Idler Assembly/Forged Idler Group manufacture Supply OEM quality Kobelco SK520/SK480/SK460/E485 Excavator Undercarriage Front Idlers

Product Specifications

The Kobelco SK520 Fabricated Idler Assembly is a crucial front-track component for the Kobelco SK520 hydraulic excavator (typically a 50-60 ton class machine). Here's a detailed breakdown:

1. Kobelco SK520:

• A large crawler excavator designed for demanding construction, quarry, and mining applications.

• Known for robust performance, efficiency, and durability in heavy-duty cycles.

2. Fabricated Idler:

• Function: The FRONT idler wheel (opposite the drive sprocket) performs 3 critical roles:

  • Supports machine weight via the track chain.

  • Guides the track chain smoothly around the front of the track frame.

  • Maintains Track Tension (acting as the adjustable point, usually via a hydraulic or grease tension cylinder).

• Fabricated Construction: Made by welding high-strength steel plates (flanges, hub, side plates) instead of using a single large casting.

  • Advantages: Often lighter weight, potentially lower manufacturing cost, damaged sections may be repairable.

  • Disadvantages: Welds are potential stress points; requires precise manufacturing for longevity. Common on larger excavators like the SK520.

3. Idler Assembly:

• This typically refers to the complete, ready-to-install unit comprising:

  • Fabricated Idler Wheel: The core rotating component.

  • Idler Bracket/Housing: The structural frame attaching the idler to the excavator's track frame.

  • Track Tensioning Mechanism: Usually a large Hydraulic Tension Cylinder (grease-filled is also possible) that pushes the idler forward to tension the track.

  • Seals & Bearings: Critical for keeping contaminants out and ensuring smooth rotation (e.g., heavy-duty roller bearings or bushings).

  • Pins, Bushings, & Retainers: Pivot points and hardware securing the assembly.

  • Track Guard/Protector: (Often included) Shields the tension cylinder from impacts and debris.

Key Points for the SK520 Fabricated Idler Assembly:

• Critical Wear Item: Subject to immense stress, abrasion, and impacts. A primary wear component in the undercarriage.

• Undercarriage Health: Its condition directly affects:

  • Track tension stability.

  • Track alignment and wear patterns (on chains, rollers, sprockets).

  • Machine stability, maneuverability, and overall efficiency.

• Failure Signs:

  • Visible flange wear (reduced width, uneven profile).

  • Excessive wobble or play in the wheel.

  • Leaking hydraulic fluid/grease from the tension cylinder.

  • Difficulty maintaining proper track tension.

  • Abnormal track noise or derailment risk.

• Maintenance: Regular inspection for wear, leaks, and bearing play is essential. Maintaining correct track tension significantly extends the life of the entire undercarriage system.

• Replacement: A significant maintenance cost due to size and complexity. Timely replacement prevents costly damage to other undercarriage parts.

• OEM vs. Aftermarket:

  • OEM (Kobelco): Guaranteed fit, quality, and performance. Highest cost. Part numbers are model & serial number specific (e.g., 4010-81-11200 - Verify exact number based on your machine's S/N!).

  • Quality Aftermarket: Reputable manufacturers (DPW, CQC,) offer compatible assemblies. Provides substantial cost savings while maintaining good durability and performance. Crucial to select a trusted supplier with proven SK520 compatibility.

  • Budget Aftermarket: Lower initial cost, but higher risk of premature failure, poor sealing (leading to bearing contamination), incorrect fitment, or substandard materials. Can lead to costly downtime.

Why is this information important?

• Purchasing: You know you need the complete front idler assembly (not just the wheel) designed specifically for the SK520, understanding "fabricated" construction and what's included.

• Maintenance/Inspection: Identifies a key component to monitor for wear and potential failure.

• Diagnostics: Helps pinpoint the idler assembly as a potential cause for track tension issues, abnormal wear, or track derailment.

• Cost Comparison: Informs decisions between OEM and aftermarket options based on budget and reliability needs.

Finding the Correct Part:
ALWAYS reference your Kobelco SK520's specific Serial Number (S/N) when ordering. Undercarriage components often have variations throughout a model's production run. Use:

1. Kobelco official parts catalogs (online dealer portals).

2. Reputable aftermarket undercarriage supplier catalogs (LS52D00002F1/72219137/SI1060).

3. Consult your Kobelco dealer or trusted undercarriage specialist.
