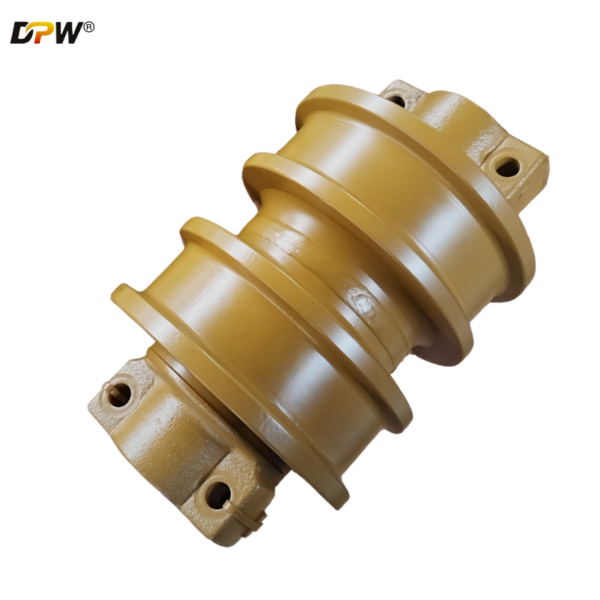

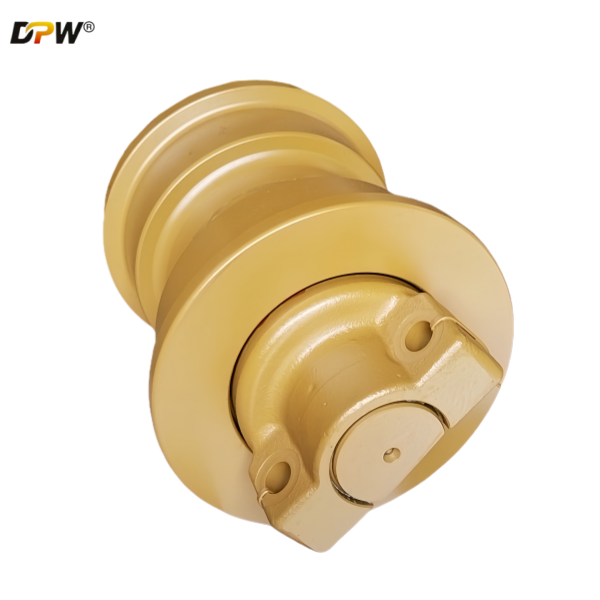

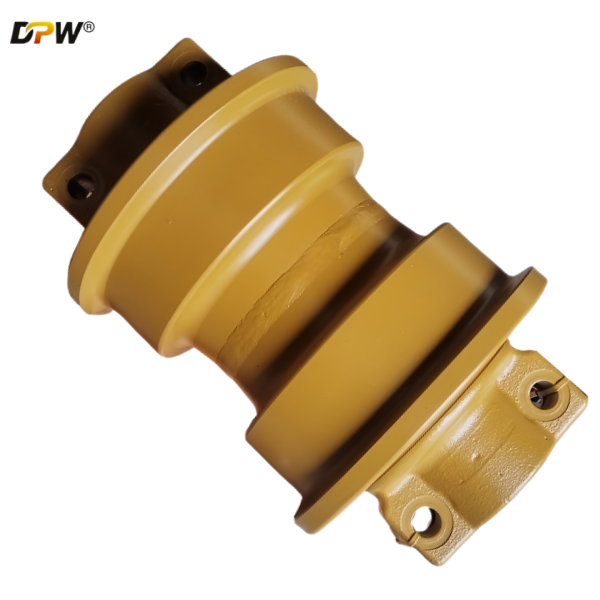

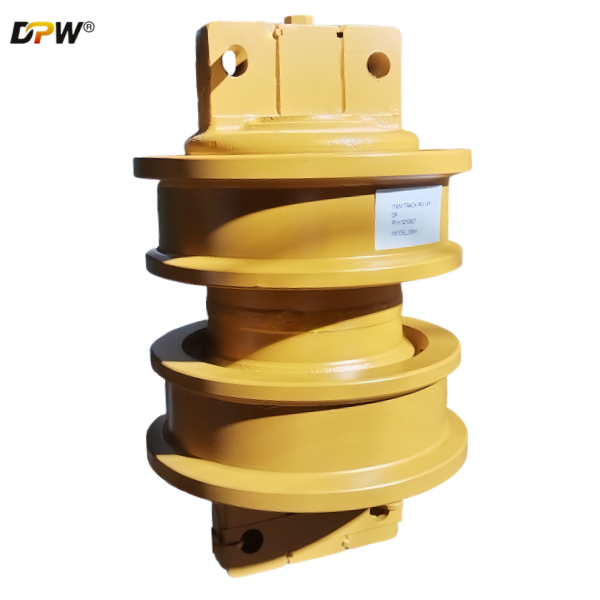

Caterpillar/1210827/D6M/D5H Track Bottom Roller Assembly

Product Specifications

Professional Technical Description: Caterpillar D6M Track Bottom Roller Assembly

Caterpillar D6M Track Bottom Roller Assembly is a quintessential heavy-duty component engineered for reliability under extreme loads and in abrasive environments. Its robust construction, featuring a hardened shell, heavy-duty bearings, and Caterpillar's advanced sealing technology, is designed to provide sustained performance and protect the value of the machine's undercarriage. Its effective operation is directly linked to the bulldozer's productivity, stability, and overall cost-efficiency on the job site.

1. Product Overview and Primary Function

The Caterpillar D6M Track Bottom Roller Assembly is a fundamental load-bearing component within the sealed and lubricated track undercarriage system of the Caterpillar D6M Medium Bulldozer. Positioned along the lower track frame between the front idler and the sprocket, its primary function is to support the weight of the machine and facilitate the smooth travel of the track chain over the lower segment of the track frame. These rollers bear the brunt of the machine's operational weight, distribute ground contact loads, ensure stability, provide traction, and are critical for efficient power transmission during dozing, pushing, and travel operations.

2. Key Functional Roles

• Primary Load Support: Directly supports the majority of the machine's static and dynamic weight, transferring it through the track chain to the ground. They are subjected to high impact loads during dozing and uneven ground contact.

• Track Guidance: The double-flanged design helps maintain the alignment of the track chain on the lower track frame, preventing lateral derailment during turns and side-loading events.

• Impact and Vibration Absorption: Absorbs shock loads and vibrations from ground obstacles and uneven terrain, protecting the track frame and mainframe from excessive stress and fatigue.

• Smooth Travel: Provides a continuous, rotating surface that minimizes friction as the track chain moves, contributing to efficient operation and reduced power loss.

3. Detailed Component Breakdown & Construction

The Bottom Roller Assembly for the D6M is a robust, sealed mechanical unit designed for durability in the most abrasive environments. Its design is a hallmark of Caterpillar's focus on long service life. Key sub-components include:

• Roller Shell (Body): The outer cylindrical component that makes direct contact with the track chain links (bushings). It is manufactured from high-carbon, high-strength steel. The outer surface is precision-machined and undergoes induction hardening to achieve a high surface hardness (typically 55-60 HRC) for extreme abrasion resistance, while the core remains tough to absorb high-impact loads.

• Integral Flanges: Massive, double flanges are integral to the roller shell. These are critical for guiding the track chain and preventing derailment. The inside surfaces of these flanges are also hardened to resist wear from lateral contact with the track links.

• Shaft (Spindle or Journal): A stationary, hardened, and ground steel shaft. It is the structural anchor of the assembly, bolted directly to the track frame. The entire roller rotates around this stationary shaft via the bearing system.

• Bearing System: Utilizes two large, heavy-duty tapered roller bearings pressed into each end of the roller shell. These bearings are specifically selected to handle the immense radial loads generated by the machine's weight and operational forces.

• Sealing System: This is a critically important subsystem for longevity. Caterpillar likely employs its proprietary Duo-Cone Seal system or an equivalent multi-lipped positive action seal.

  • Duo-Cone Seals: consist of two precision-finished metal rings (one static, one rotating) with a micro-scale finish that traps a thin film of grease between them, creating an exceptionally effective barrier against contaminants.

  • This system is designed to prevent the ingress of abrasive contaminants (dirt, mud, sand) and to retain lubricating grease within the bearing cavity.
    These assemblies are Lube-for-Life, meaning they are sealed and pre-lubricated at the factory for the entire service life of the roller, requiring no routine maintenance greasing.

• Mounting Bosses: The forged or fabricated lugs at each end of the shaft that provide the bolting interface to securely attach the entire assembly to the bulldozer's track frame.

4. Material and Manufacturing Specifications

• Material: The roller shell and shaft are constructed from high-grade, heat-treated alloy steels, chosen for their superior strength, hardenability, and impact resistance, meeting Caterpillar's rigorous material specifications.

• Manufacturing Processes: The production involves forging the shell for superior grain structure, precision machining, induction hardening of the running surface and flanges, grinding of critical surfaces, and automated pressing of bearings and seals in a controlled environment.

• Surface Treatment: The assembly is shot-blasted and painted with Caterpillar's standard yellow paint system for corrosion protection.

5. Application and Compatibility

This specific assembly is designed for the Caterpillar D6M Medium Bulldozer. Bottom rollers are high-wear items due to their constant ground contact and exposure to abrasives. They are typically inspected regularly and replaced in sets to ensure even performance and wear across the entire undercarriage. Correct compatibility is essential for maintaining proper track alignment, tension, and overall machine stability.

6. Importance of Genuine or Cat®-Certified Rebuilt Parts

Using a genuine Caterpillar or Cat®-Certified Rebuilt assembly ensures:

• Dimensional Accuracy: Guarantees perfect fitment with the track chain and correct alignment on the track frame, preventing abnormal wear patterns.

• Material Integrity: Certified materials and precise heat treatment ensure the roller can withstand rated loads without premature failure.

• Seal Reliability: The Duo-Cone seal system is a Caterpillar innovation and is critical for longevity. Premium seals prevent the leading cause of roller failure: contaminant ingress and lubricant loss.

• Optimal Performance and Warranty: Designed and tested to work in harmony with the entire Cat undercarriage system, and is backed by Caterpillar's warranty.

7. Maintenance and Operational Considerations

• Regular Inspection: Operators should frequently check for:

  • Rotation: Rollers must turn freely. A seized roller will be quickly worn flat by the track chain and will cause accelerated wear on the track links.

  • Flange Wear: Inspect for significant wear or cracking on the guiding flanges.

  • Leakage: Any signs of grease leaking from the seal area indicate seal failure and imminent bearing failure.

  • Visual Damage: Look for cracks, deep gouges, or significant scoring on the roller shell.

• Cleanliness: Although built for harsh conditions, operating in environments where material packs solidly between the roller and the track frame can increase stress and accelerate wear.

• Proper Track Tension: Operating with incorrect track tension places abnormal stress on the rollers and bearings, leading to premature failure. Always follow the operator's manual guidelines.
