CAT 442-8258 E385/E390 Double Flange Track Bottom Roller Assy/Heavy duty Crawler excavator undercarriage part source factory and manufacturer
| ||||||||||||||||||||||||||
Product Specifications
Technical Data Sheet: CATERPILLAR E385/E390 Double Flange Track Bottom Roller Assembly (P/N 442-8258)
Meta Description: OEM manufacturer of CAT E385/E390 heavy-duty double flange track bottom roller (P/N 442-8258). We produce superior crawler excavator undercarriage components with advanced forging, heat treatment, and sealing technology for extreme applications.
1. Product Identification & Functional Overview
OEM Part Number: 442-8258
Application: Caterpillar E385, E390, and other compatible large crawler excavator models.

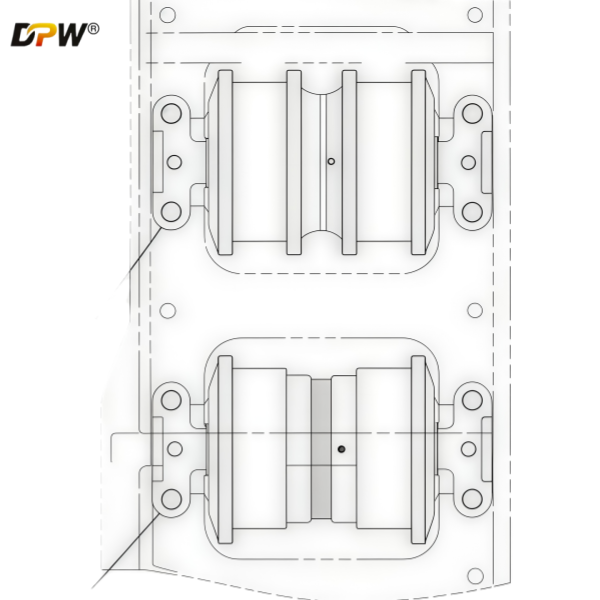

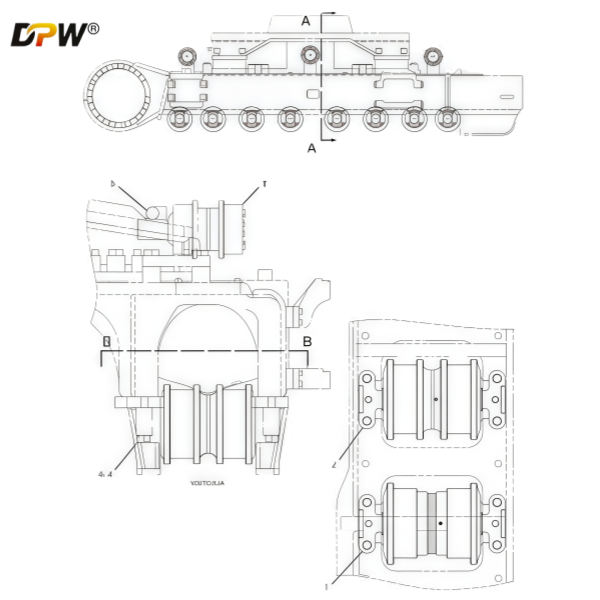

Component Name: Double Flange Track Bottom Roller Assembly (Lower Roller)
Manufacturer Profile: A premier source factory for OEM-quality, heavy-duty crawler excavator undercarriage systems.
The Double Flange Track Bottom Roller is a fundamental load-bearing component within the excavator's undercarriage. It is subjected to continuous high loads and abrasive environments during excavation, lifting, and travel operations.
Primary Function:
Load Support: Carries a significant portion of the excavator's operational weight and distributes it evenly along the bottom section of the track chain, ensuring ground stability and preventing excessive sinkage.
Track Guidance & Alignment: The dual, robust flanges securely contain the track chain on both sides, preventing lateral slippage and derailment during travel and especially during high-stress turning maneuvers. This is critical for maintaining machine stability and operational safety.
Friction Reduction: Provides a smooth, hardened, and rotating surface for the track chain to travel over, minimizing rolling resistance and power loss, which contributes to more efficient fuel consumption and reduced wear across the entire undercarriage system.
2. Technical Specifications & Engineering Design
Our manufacturing process is engineered to meet the extreme demands of large hydraulic excavators, where impact loads from uneven terrain and severe abrasive wear are constant challenges.
Material Science & Forging:
Roller Wheel: Fabricated from premium 60Si2Mn or 55Mn high-manganese steel via precision die-forging. This closed-die forging process creates a continuous, optimized grain flow that dramatically enhances the component's impact strength and fatigue resistance, far exceeding the capabilities of cast or fabricated alternatives.
Shaft & Bushings: The core shaft is machined from high-tensile alloy steel (42CrMo), which is through-hardened for consistent strength. Internal bushings are manufactured from high-density, wear-resistant sintered bronze or steel-on-steel composites to ensure longevity under high rotational pressures and shock loads.
Advanced Heat Treatment Regimen:
Core Toughness (Quenching & Tempering): The entire component undergoes a computer-controlled Q&T process to achieve a uniform, tough, and ductile core structure (approx. 35-42 HRC). This is essential for absorbing massive shock loads from traversing rocks and debris without catastrophic cracking or fracture.
Surface Hardness (Deep Induction Hardening): The entire rolling contact path and the critical guiding flanges are subjected to deep induction hardening, achieving a controlled case depth of 6-10mm and a supreme surface hardness of 59-63 HRC. This provides maximum resistance to abrasive wear from sand, gravel, and other excavated materials.
Heavy-Duty, Multi-Stage Sealing System:
The service life of the roller is determined by its ability to keep contaminants out. We employ a state-of-the-art, multi-stage sealing system:Primary Seal: A heavy-duty, spring-loaded radial lip seal constructed from advanced Nitrile (NBR) or Hythane® compounds for superior resistance to heat, abrasion, and tearing.
Labyrinth Seal: A complex, multi-channel mechanical seal that creates a tortuous path, effectively deflecting, trapping, and ejecting abrasive contaminants like mud, slurry, and fine particulate matter.
Grease Barrier: The seal cavity is packed with a high-temperature, high-load, waterproof lithium complex grease, creating a positive pressure zone that actively repels contaminant ingress and ensures continuous lubrication of the internal bushing surface.
Lubrication: Designed as a sealed-for-life assembly, the internal bearing cavity is permanently lubricated with a high-quality grease during manufacture. A standard grease fitting is provided for maintenance of the outer seal barrier and for pressure relief.
3. Manufacturing Process & Quality Assurance
As a specialized undercarriage factory, we maintain strict control over our vertically integrated production process to ensure every component meets the highest standards.
Manufacturing Workflow: Raw Material Spectroscopy & Certification → Die Forging → Rough Machining → Normalizing → Quenching & Tempering → Deep Induction Hardening → Precision CNC Finish Machining → Seal & Bearing Assembly → Performance & Seal Integrity Testing → Shot Blasting & Anti-Corrosion Painting.
Comprehensive Quality Control Protocol:
Dimensional Metrology: 100% inspection using precision gauges, micrometers, and CMM (Coordinate Measuring Machines) to guarantee perfect OEM interchangeability and fit with the E385/E390 track frame and chain.
Hardness & Depth Verification: Rockwell and Brinell testing are used to verify core and surface hardness, while case depth is measured to ensure the induction hardening meets specified depths.
Non-Destructive Testing (NDT): 100% of forged blanks undergo Magnetic Particle Inspection (MPI) to detect any subsurface flaws, inclusions, or forging defects before valuable machining time is invested.
Rotational Torque & Seal Integrity Test: Every assembled roller is tested for smooth, free rotation within a specified torque range. A mandatory pressure decay test is performed to validate the complete sealing system's integrity against water and contaminant ingress.
4. Common Failure Modes & Engineering Solutions
Our rollers are specifically engineered to prevent the most common and costly failure modes in heavy-duty excavator applications:
Premature Flange Wear-Out: Combated by the deep, ultra-hard induction-hardened flanges that resist deformation and grinding.
Seal Failure & Bearing Spalling: Mitigated by the heavy-duty, multi-stage labyrinth seal that maintains a clean internal environment, preventing the primary cause of bearing failure.
Roller Seizure: Prevented through precise internal tolerances and the contaminant-free environment maintained by the sealing system, ensuring consistent rotation.
Core Cracking from Impact: Resisted by the superior impact strength and micro-ductility provided by the forged and properly heat-treated core.
5. Our Factory: Your Strategic Undercarriage Source
We are a trusted manufacturer for global construction, mining, and quarrying sectors, offering:
OEM Direct Replacement: Our parts are manufactured to the exact original specifications, ensuring flawless performance, compatibility, and longevity on Caterpillar E385 and E390 excavators.
Integrated Vertical Manufacturing: Full in-house control from forging to final assembly ensures unmatched quality consistency, cost efficiency, and supply chain security.
Engineered for Extreme Duty: Our components are designed from the ground up for the most severe applications, delivering a service life that meets or exceeds OEM standards, thereby reducing the total cost of ownership.
Global Logistics & Support: We possess the capacity and expertise to serve OEMs, large distributors, and major end-users worldwide, ensuring reliable and timely delivery to minimize critical machine downtime.
