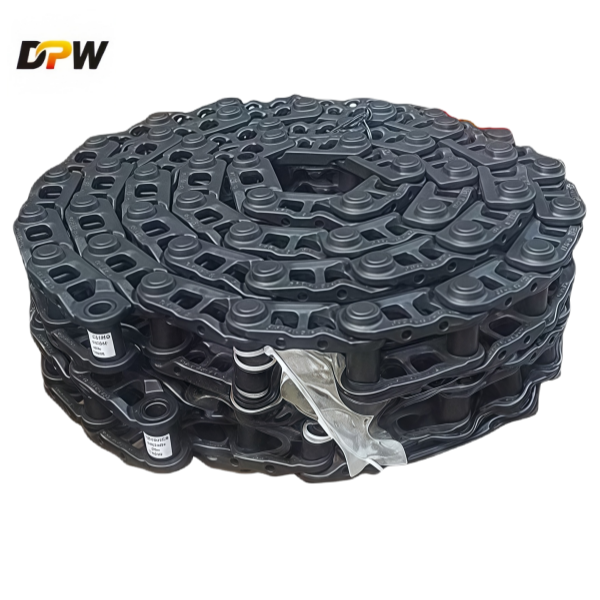

Track Chain for Furukawa HCR1500 Rock Drill Rigs Made by DPW PARTS -high quality crawler undercarriage part manufacture Quanzhou China
Product Specifications
The Furukawa HCR1500 track link assembly（CR4584/43） is engineered to deliver exceptional performance in the most demanding mining and rock drilling operations. As a critical undercarriage component for Furukawa's HCR1500 drill rigs, our track chains are built to withstand extreme loads and abrasive conditions while maintaining operational efficiency.
Product Highlights
✔ Mining-Optimized Design - Specifically developed for hard rock drilling applications
✔ Enhanced Durability - Forged alloy steel construction with 55-60 HRC hardness
✔ Advanced Lubrication - Sealed and greased system extends service life by 40%
✔ Precision Engineering - Guaranteed compatibility with HCR1500 drill rigs
✔ Global Availability - Ready stock for fast delivery worldwide
Technical Specifications
| Parameter | Specification |
|---|---|
| Chain Type | Sealed & Lubricated |
| Pitch | 216mm (8.5") |
| Width | 600mm (Standard) |
| Pin Diameter | 55mm (Hardened Surface) |
| Bushing OD | 82mm |
| Tensile Strength | 900+ MPa |
| Material | 42CrMo Alloy Steel |
| Bolt Pattern | 4-Bolt (356×127mm) |
Performance Advantages
Compatible Equipment• Furukawa HCR1500-DS Rock Drill Rigs Ordering InformationOEM Reference: FRC-HCR1500-TL216 For Accurate Pricing & Delivery: Why Choose Our Track Links?
|
