Fabricated Idler Group manufacture supplier for heavy duty construction equipment/Sumitomo-SH480
Product Specifications

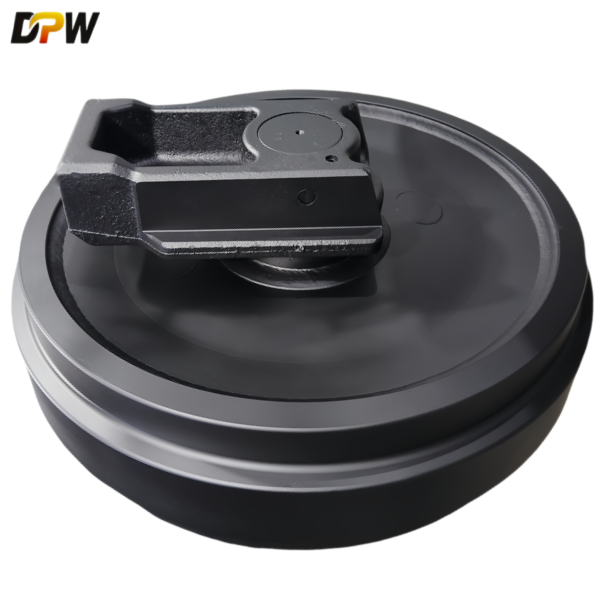

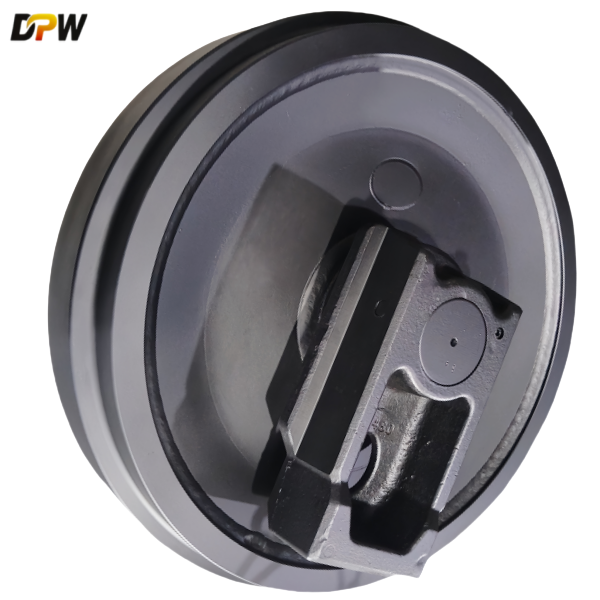

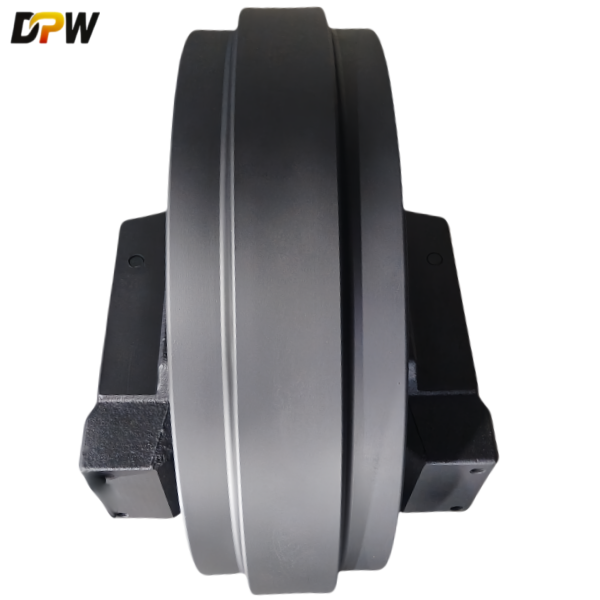

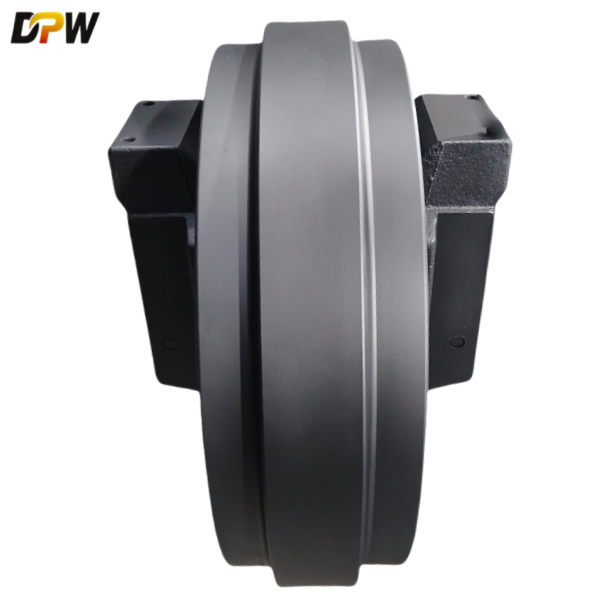

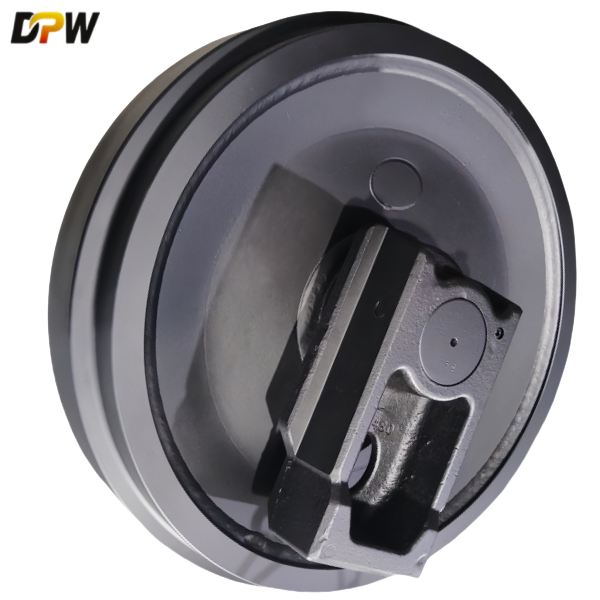

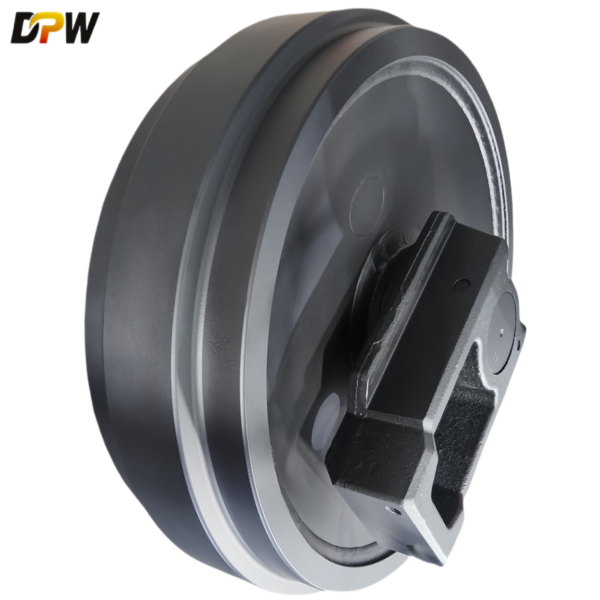

The Sumitomo SH480 Fabricated Idler Group refers to a critical component within the undercarriage system of the Sumitomo SH480 hydraulic mining excavator. Here's a breakdown of what it means and its importance:
Sumitomo SH480:
A large, heavy-duty hydraulic excavator designed primarily for mining and major quarrying applications.
Known for its high productivity, durability, and payload capacity.
Fabricated Idler:
Idler: A wheel located at the front of the excavator's track frame (opposite the drive sprocket). Its primary functions are:
Support: Helps support the weight of the machine and the track chain/link assembly.
Guidance: Guides the track chain smoothly around the front of the track frame.
Tension Maintenance: Acts as the point where track tension is adjusted (usually via a grease cylinder).
Fabricated: This means the idler is constructed by welding together multiple pieces of high-strength steel plate (flanges, hub, etc.), rather than being a single large casting.
Advantages: Often lighter than a comparable cast idler, potentially more cost-effective to manufacture, and damaged sections might be repairable.
Disadvantages: Welds can be potential stress points if not manufactured perfectly; generally common on large mining machines where castings become prohibitively large/expensive.
Idler Group:
This typically refers to the complete assembly needed for the front idler function. It usually includes:
The Fabricated Idler wheel itself.
The Idler Housing or Bracket that attaches the idler to the track frame.
The Track Tensioning Cylinder (a large hydraulic or grease-filled cylinder used to push the idler forward to tension the track).
Associated Seals, Bushings, Bearings, Pins, and Retainers.
Sometimes includes the Track Guard or Protector for the tension cylinder.
Key Points about the SH480 Fabricated Idler Group:
Critical Wear Part: Idlers endure constant stress, abrasion from dirt/rocks, and impact. They are major wear items on any excavator, especially large mining models like the SH480.
Undercarriage Health: The condition of the idler group directly impacts track tension, track alignment, overall undercarriage wear (like on chains and rollers), and machine stability/performance.
Maintenance: Regular inspection for wear (flange width, groove depth), leaks from the tension cylinder, and bearing play is crucial. Proper track tension adjustment extends the life of the entire undercarriage.
Replacement: Due to wear, this group will need replacement periodically. Costs are significant.
OEM vs. Aftermarket:
OEM (Sumitomo): Guaranteed fit, quality, and performance, but usually the most expensive option. Part numbers are specific (e.g., specific to SH480, often with sub-variants based on serial number ranges).
Quality Aftermarket: Many reputable manufacturers produce fabricated idler groups compatible with the SH480. These can offer significant cost savings while maintaining good quality and durability. Careful supplier selection is vital.
Budget Aftermarket: Lower-cost options exist but carry higher risks of premature failure, incorrect fitment, or poor sealing leading to contamination and rapid bearing wear.
Why is this information important to a user?
If you're searching to buy a replacement, you know you need the complete assembly ("group") for the front idler position, designed for the SH480, and understand the "fabricated" construction.
If you're performing maintenance, you know this is a critical component to inspect for wear and leaks.
If you're diagnosing a problem (e.g., track derailment, abnormal wear, loss of tension), the idler group is a key area to check.
If you're comparing costs or parts, you understand the construction type and what the assembly includes.
