CAT-E350/SF Track Roller Assembly/8E4288/CR6400 DPW Parts Heavy duty construction equipment undercarriage components manufacture and source factory
Product Specifications

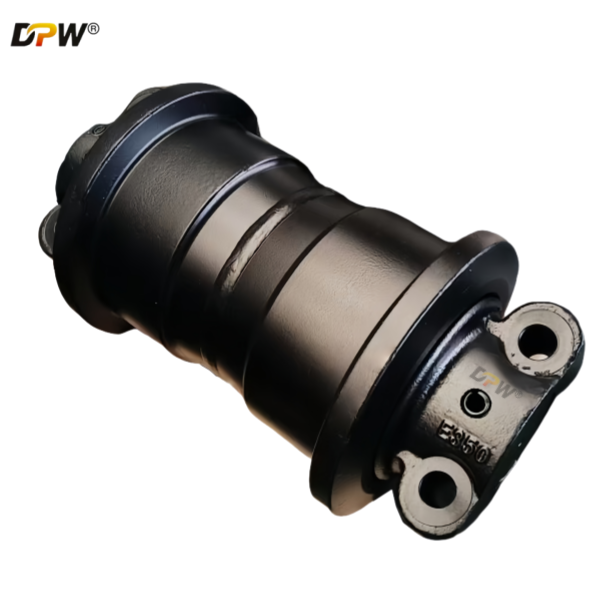

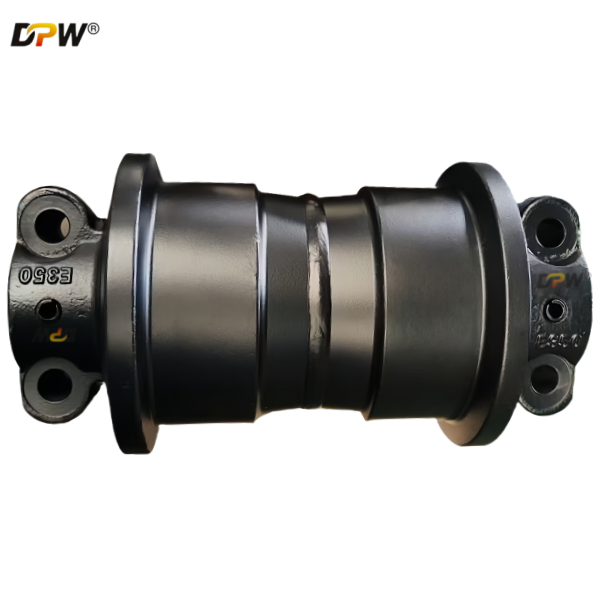

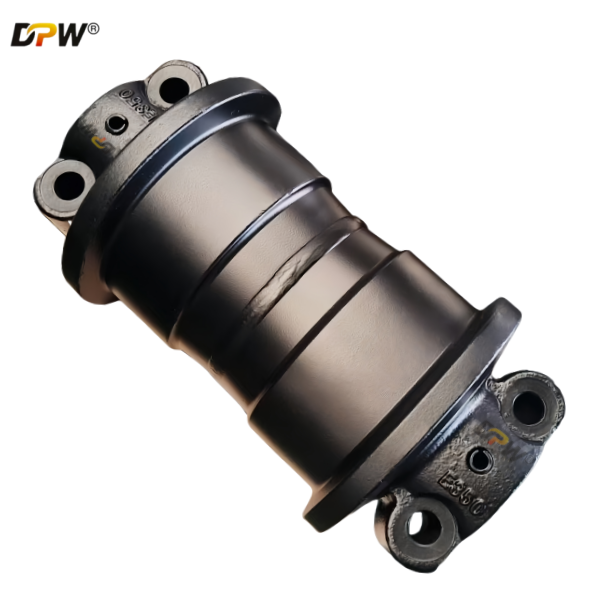

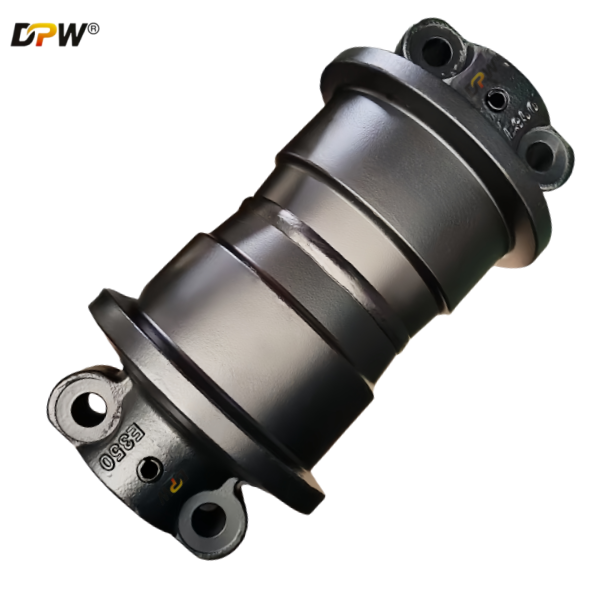

CAT-E350/SF Track Roller Assembly: Technical Description
The CAT-E350/SF Track Roller Assembly is a critical undercarriage component designed for Caterpillar E350-series excavators. It serves to support the machine’s weight, guide the track chain, and maintain alignment during operation under high-load conditions.
Key Technical Features:
Forged Alloy Steel Core – Manufactured from heat-treated alloy steel for exceptional tensile strength and impact resistance.
Precision-Tapered Roller Bearings – Engineered to distribute radial and axial loads evenly, reducing wear and extending service life.
Multi-Lip Seal System – Integrates triple-layer lip seals with high-temperature-resistant grease to prevent contamination (e.g., dirt, slurry) and retain lubrication.
Hardened Outer Rim – Surface-hardened to 55-60 HRC to resist abrasion from track chain contact.
Threaded Bolted Flange – Allows for secure mounting to the excavator’s undercarriage frame using Grade 8.8 fasteners.
| Parameter | Specification |
|---|---|
| Model Number | CAT-E350/SF Track Roller Assembly |
| Compatibility | Caterpillar E350 Series Excavators |
| Material | Forged Steel Core, Rubber Seals |
| Load Capacity | 15,000 lbs (6,804 kg) per roller |
| Lubrication | Grease-filled with High-Temp Resistance |
| Certifications | ISO 9001, CE, OEM Equivalent Standards |
Performance Specifications:
Static Load Rating: 15,000 lbs (6,804 kg)
Dynamic Load Capacity: 9,500 lbs (4,309 kg) at 10 km/h
Operating Temperature Range: -40°C to 120°C
Lubrication: Lithium-complex grease (NLGI #2)
Applications:
Ideal for heavy-duty excavation, mining, and construction operations where prolonged exposure to abrasive soils, rocks, and moisture occurs. Compatible with CAT E350, E350 LC, and E350 LME models.
This assembly meets OEM performance standards (ISO 9001, CAT 8F-6972) and is engineered for interchangeability with original components.
